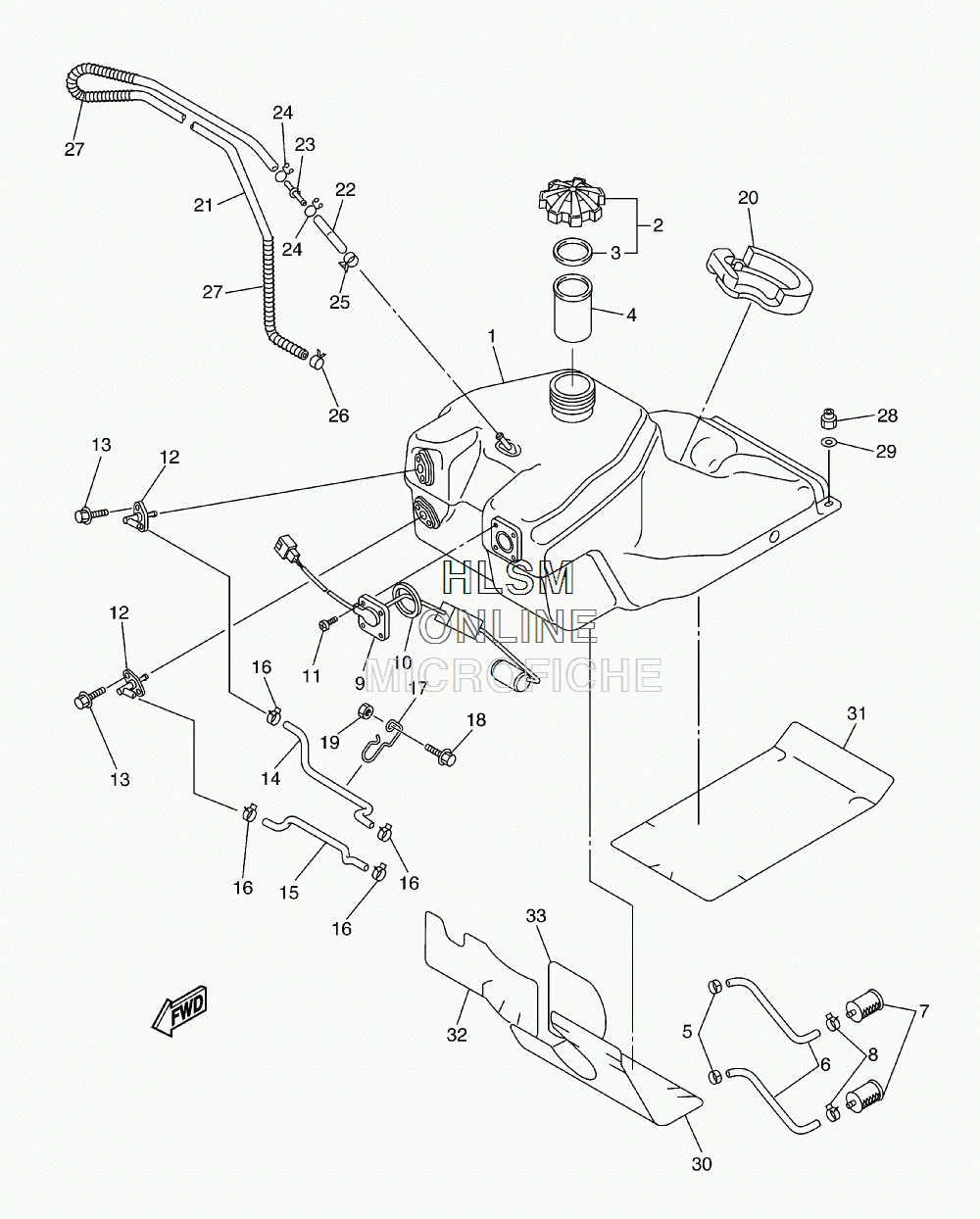

FUEL TANK ASSY для Yamaha RS VECTOR LTX - 2008 года выпуска
-
№АртикулНазвание
-
18GM-24111-00-00 TANK, FUELTANK, FUEL
-
28FG-24610-00-00 CAP ASSYCAP ASSY
-
38FG-24641-00-00 ...GASKET, CAP 1...GASKET, CAP 1
-
48FP-24114-00-00 TUBE, FILLERTUBE, FILLER
-
590468-04092-00 CLIPCLIP
-
68FA-24335-00-00 PIPE, SUCTION 1PIPE, SUCTION 1
-
78H5-24560-00-00 FILTER ASSYFILTER ASSY
-
890467-11032-00 CLIP, SCISSORCLIP, SCISSOR
-
98FR-85752-00-00 SENDER UNIT ASSY, FUEL METERSENDER UNIT ASSY, FUEL METER
-
1093210-41041-00 O-RINGO-RING
-
1198902-05008-00 SCREW, BINDSCREW, BIND
-
128CR-24301-00-00 SUCTION PIPE COMP. 1SUCTION PIPE COMP. 1
-
1390105-060A6-00 BOLT, FLANGEBOLT, FLANGE
-
148GM-24311-00-00 PIPE, FUEL 1PIPE, FUEL 1
-
158GM-24311-10-00 PIPE, FUEL 1PIPE, FUEL 1
-
1690467-11032-00 CLIP, SCISSORCLIP, SCISSOR
-
178GM-2419A-00-00 HOLDERHOLDER
-
1895822-06016-00 BOLT, FLANGEBOLT, FLANGE
-
1995602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
208FP-24181-01-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
2191A20-05110-00 TUBE, FLEXIBLE VINYLTUBE, FLEXIBLE VINYL
-
228FR-24461-00-00 PIPE, JOINTPIPE, JOINT
-
238H8-24376-00-00 PIPE, JOINT 1PIPE, JOINT 1
-
2490467-08017-00 CLIP, SCISSORCLIP, SCISSOR
-
2590467-09026-00 CLIP, SCISSORCLIP, SCISSOR
-
2690467-09026-00 CLIP, SCISSORCLIP, SCISSOR
-
2790501-08668-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
2895702-08300-00 NUT, NYLONNUT, NYLON
-
2990201-08053-00 WASHER, PLATEWASHER, PLATE
-
308FP-24141-00-00 PROTECTOR, FUEL TANKPROTECTOR, FUEL TANK
-
318FA-24141-10-00 PROTECTOR, FUEL TANKPROTECTOR, FUEL TANK
-
328FP-2416F-00-00 INSULATOR, FUEL TANK 1INSULATOR, FUEL TANK 1
-
338FP-2416F-10-00 INSULATOR, FUEL TANK 1INSULATOR, FUEL TANK 1
