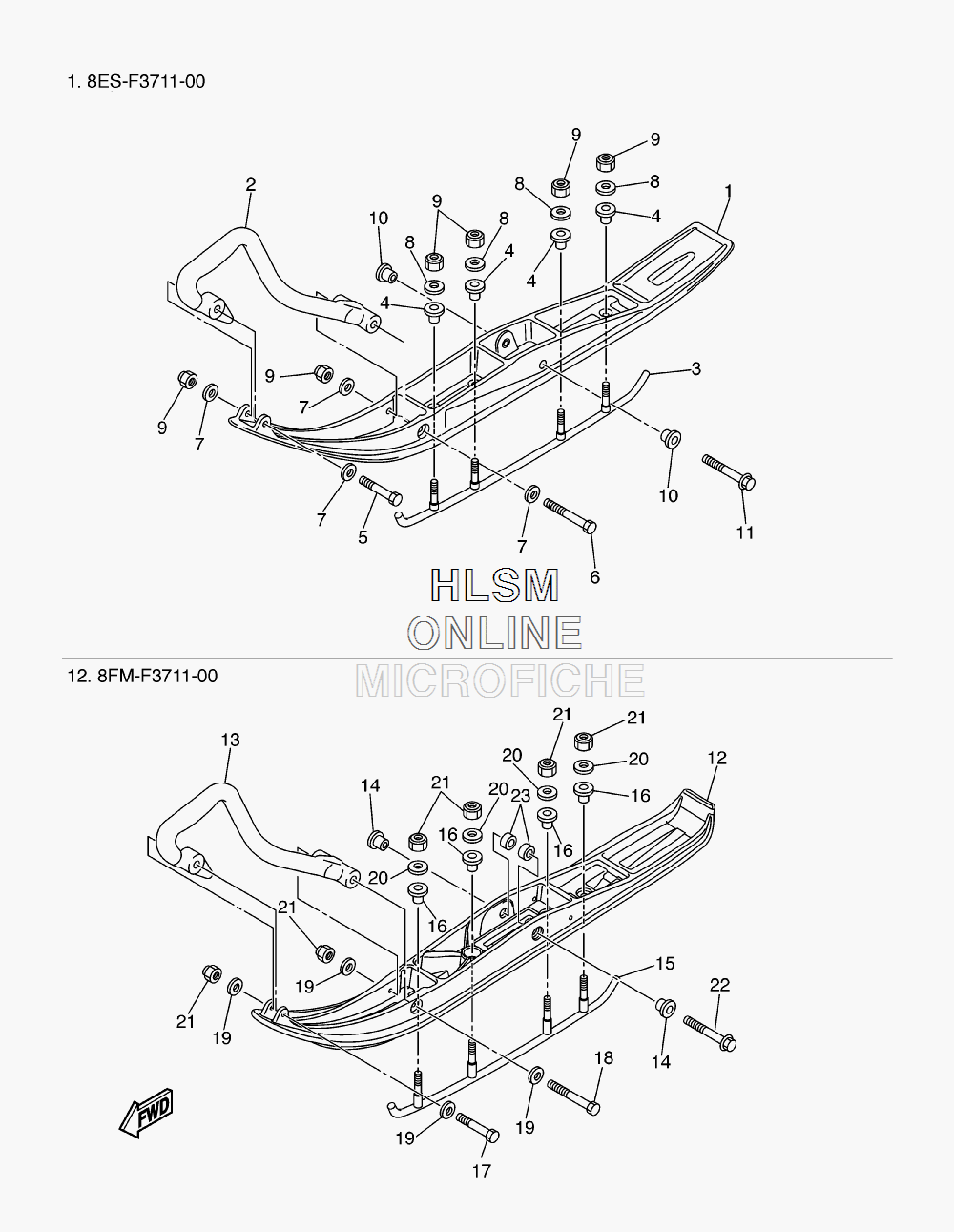

SUSPENSION - ALTERNATE SKI для Yamaha RS VENTURE GT 2-PASS - 2008 года выпуска
-
№АртикулНазвание
-
18ES-F3711-00-00 SKI 1 (OPT)SKI 1 (OPT)
-
28DM-F3712-00-00 BLACK 8DM HANDLE PLASTIC (OPT)BLACK 8DM HANDLE PLASTIC (OPT)
-
38EK-F3731-01-00 RUNNER 1 (OPT)RUNNER 1 (OPT)
-
48EK-F3751-00-00 BUSH, SKI 1 (OPT)BUSH, SKI 1 (OPT)
-
59702M-08055-00 BOLT (OPT)BOLT (OPT)
-
69702M-08100-00 BOLT (OPT)BOLT (OPT)
-
790201-08784-00 WASHER, PLATE (OPT)WASHER, PLATE (OPT)
-
890201-086P8-00 WASHER, PLATE (OPT)WASHER, PLATE (OPT)
-
99570M-08300-00 NUT, NYLON (OPT)NUT, NYLON (OPT)
-
108EX-F3754-00-00 COLLAR, 1 (OPT)COLLAR, 1 (OPT)
-
1190105-10070-00 BOLT, FLANGE (OPT)BOLT, FLANGE (OPT)
-
128FM-F3711-00-00 SKI 1 (OPT)SKI 1 (OPT)
-
138DM-F3712-00-00 BLACK 8DM HANDLE PLASTIC (OPT)BLACK 8DM HANDLE PLASTIC (OPT)
-
148EX-F3754-00-00 COLLAR, 1 (OPT)COLLAR, 1 (OPT)
-
158EN-F3731-01-00 RUNNER 1 (OPT)RUNNER 1 (OPT)
-
168EK-F3751-00-00 BUSH, SKI 1 (OPT)BUSH, SKI 1 (OPT)
-
179702M-08055-00 BOLT (OPT)BOLT (OPT)
-
189702M-08100-00 BOLT (OPT)BOLT (OPT)
-
1990201-08784-00 WASHER, PLATE (OPT)WASHER, PLATE (OPT)
-
2090201-086P8-00 WASHER, PLATE (OPT)WASHER, PLATE (OPT)
-
219570M-08300-00 NUT, NYLON (OPT)NUT, NYLON (OPT)
-
2290105-10106-00 BOLT, FLANGE (OPT)BOLT, FLANGE (OPT)
-
2390387-10029-00 COLLAR (OPT)COLLAR (OPT)
