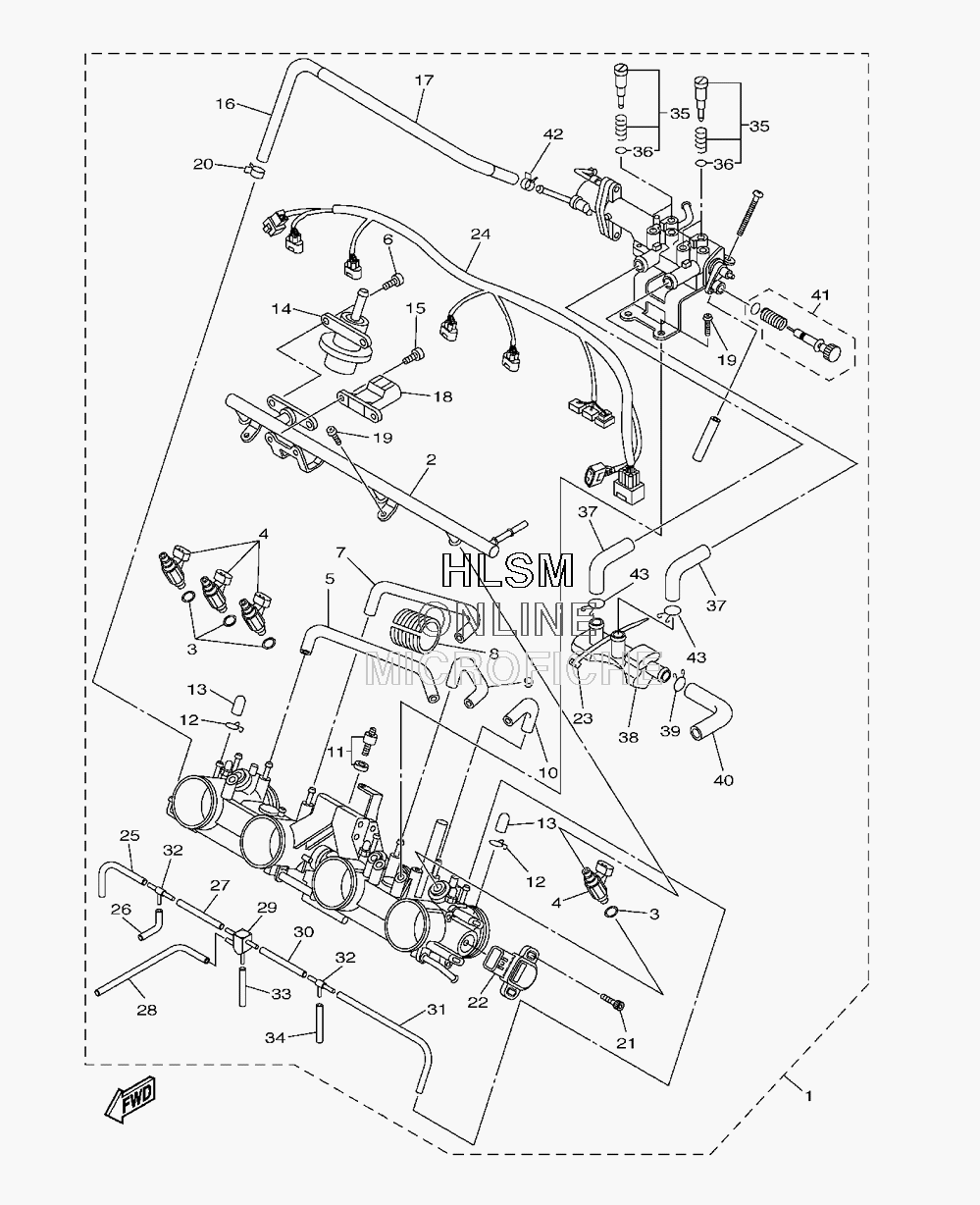

THROTTLE BODY ASSY для Yamaha APEX MTX - 2009 года выпуска
-
№АртикулНазвание
-
18FP-13750-10-00 THROTTLE BODY ASSYTHROTTLE BODY ASSY
-
28FP-13938-00-00 PIPEPIPE
-
38FP-13556-00-00 GASKET, MANIFOLDGASKET, MANIFOLD
-
48FP-13761-00-00 INJECTORINJECTOR
-
58FP-14987-00-00 HOSEHOSE
-
698507-05008-00 SCREW, PAN HEADSCREW, PAN HEAD
-
78FP-14987-10-00 HOSEHOSE
-
88FP-14396-00-00 PIPEPIPE
-
98FP-14987-20-00 HOSEHOSE
-
108FP-14987-30-00 HOSEHOSE
-
115JW-14103-10-00 THROTTLE SCREW SETTHROTTLE SCREW SET
-
128A7-14139-00-00 CLIP, PIPECLIP, PIPE
-
13895-14169-00-00 CAPCAP
-
148FP-13906-00-00 REGULATOR, PRESSUREREGULATOR, PRESSURE
-
1592507-06010-00 SCREW, PAN HEADSCREW, PAN HEAD
-
168FP-14348-00-00 PIPE 1PIPE 1
-
178FP-14348-10-00 PIPE 1PIPE 1
-
185PS-82380-00-00 SENSOR, PRESSURESENSOR, PRESSURE
-
1998507-06012-00 SCREW, PAN HEADSCREW, PAN HEAD
-
2090467-11028-00 CLIP, SCISSORCLIP, SCISSOR
-
218CC-14216-10-00 SCREWSCREW
-
228GL-85885-00-00 THROTTLE SENSOR ASSYTHROTTLE SENSOR ASSY
-
234KM-14137-00-00 CLIPCLIP
-
248FP-82386-01-00 EXTENSION, WIRE HARNESSEXTENSION, WIRE HARNESS
-
255JW-14348-00-00 PIPE 1PIPE 1
-
268FP-14349-00-00 PIPEPIPE
-
275PS-14987-00-00 HOSEHOSE
-
288FP-14349-10-00 PIPEPIPE
-
295PW-1410F-00-00 CONNECTORCONNECTOR
-
308FP-14349-20-00 PIPEPIPE
-
315JW-14987-00-00 HOSEHOSE
-
3268V-24376-00-00 PIPE, JOINT (T - FIT)PIPE, JOINT (T - FIT)
-
335FL-14348-10-00 PIPE 1PIPE 1
-
348FP-14349-30-00 PIPEPIPE
-
355JW-14104-00-00 AIR SCREW SETAIR SCREW SET
-
363H1-14147-00-00 O-RINGO-RING
-
378FP-14148-00-00 PIPEPIPE
-
388FP-14454-00-00 JOINTJOINT
-
3990467-22080-00 CLIP, SCISSORCLIP, SCISSOR
-
408FP-14149-00-00 PIPEPIPE
-
418FP-14503-00-00 ADJUST SCREW SETADJUST SCREW SET
-
428FP-13577-00-00 CLIPCLIP
-
438FP-14137-00-00 CLIPCLIP
