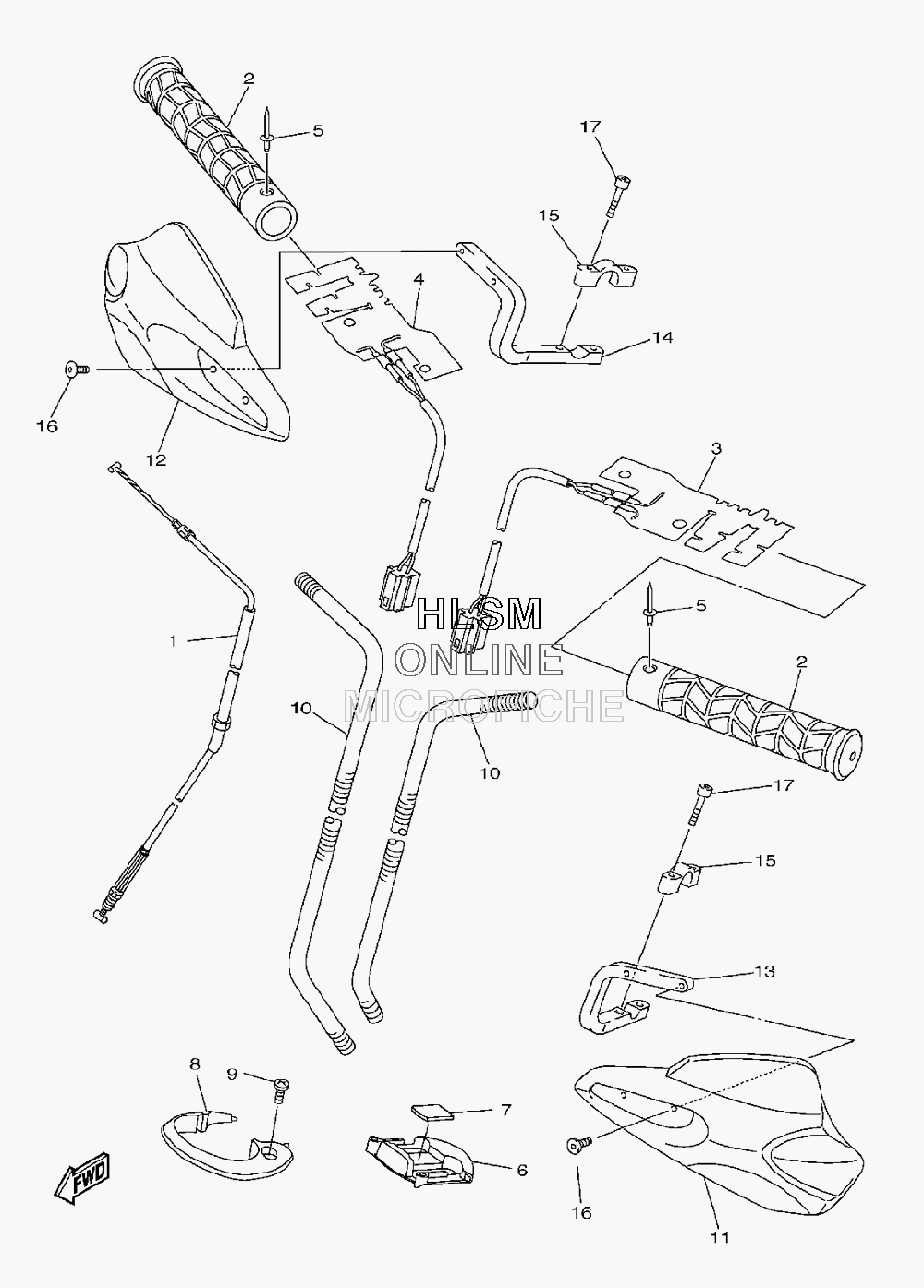

HANDLEBAR - CABLES AND GRIPS для Yamaha APEX RTX - 2009 года выпуска
-
№АртикулНазвание
-
18FP-26311-00-00 CABLE, THROTTLE 1CABLE, THROTTLE 1
-
28GF-26241-00-00 GRIPGRIP
-
38GL-2626A-00-00 GRIP, WARMERGRIP, WARMER
-
48GL-2626A-10-00 GRIP, WARMERGRIP, WARMER
-
590267-48014-00 RIVET, BLIND (4.8X15.1 BLACK)RIVET, BLIND (4.8X15.1 BLACK)
-
68FP-26144-00-00 COVER, HANDLEBAR LOWER 1COVER, HANDLEBAR LOWER 1
-
78FP-26113-00-00 DAMPERDAMPER
-
88FP-26146-00-00 COVER, HANDLEBAR LOWER 2COVER, HANDLEBAR LOWER 2
-
990154-05041-00 SCREW, BINDINGSCREW, BINDING
-
108FP-82351-00-00 TUBE, CORDTUBE, CORD
-
118GL-F6141-20-00 GUARD, BRUSH 1GUARD, BRUSH 1
-
128GL-F6142-20-00 GUARD, BRUSH 2GUARD, BRUSH 2
-
138GL-2612L-01-00 BRACKET 3BRACKET 3
-
148GL-2612M-01-00 BRACKET 4BRACKET 4
-
158GL-2612K-00-00 BRACKET 2BRACKET 2
-
1690109-065F3-00 BOLTBOLT
-
1791312-05030-00 BOLTBOLT
