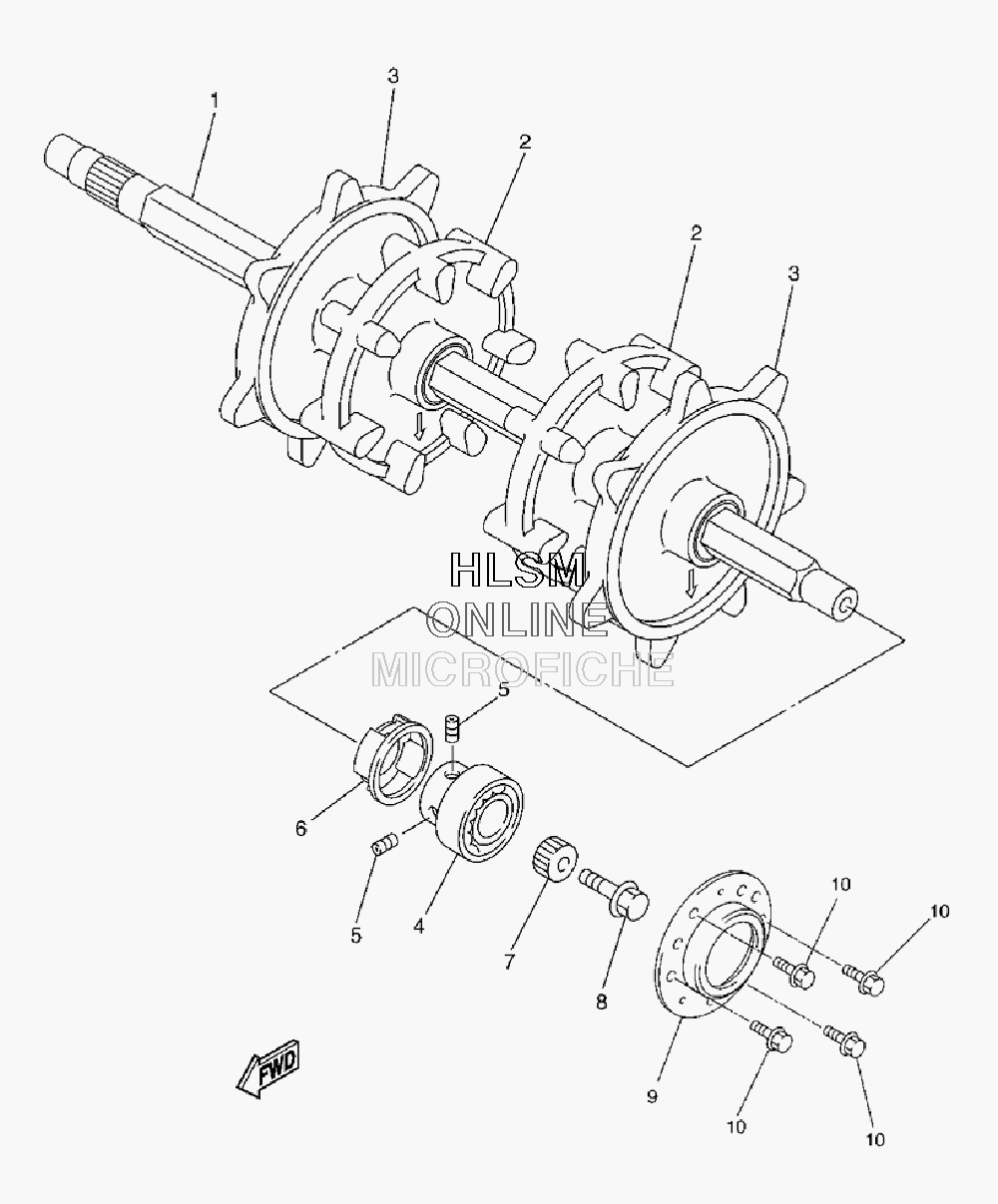

DRIVE TRAIN ASSEMBLY для Yamaha FX NYTRO MTX - 2009 года выпуска
-
№АртикулНазвание
-
18GL-47511-10-00 AXLE, FRONTAXLE, FRONT
-
28FS-47531-00-00 WHEEL, SPROCKET 1WHEEL, SPROCKET 1
-
38FS-47532-00-00 WHEEL, SPROCKET 2WHEEL, SPROCKET 2
-
493306-20589-00 BEARINGBEARING
-
590113-06064-00 BOLT, SETBOLT, SET
-
68FN-47377-00-00 CAPCAP
-
78EK-47715-00-00 JOINTJOINT
-
895822-10025-00 BOLT, FLANGEBOLT, FLANGE
-
98EK-47551-00-00 HOUSING, FRONT AXLEHOUSING, FRONT AXLE
-
1095822-08025-00 BOLT, FLANGEBOLT, FLANGE
