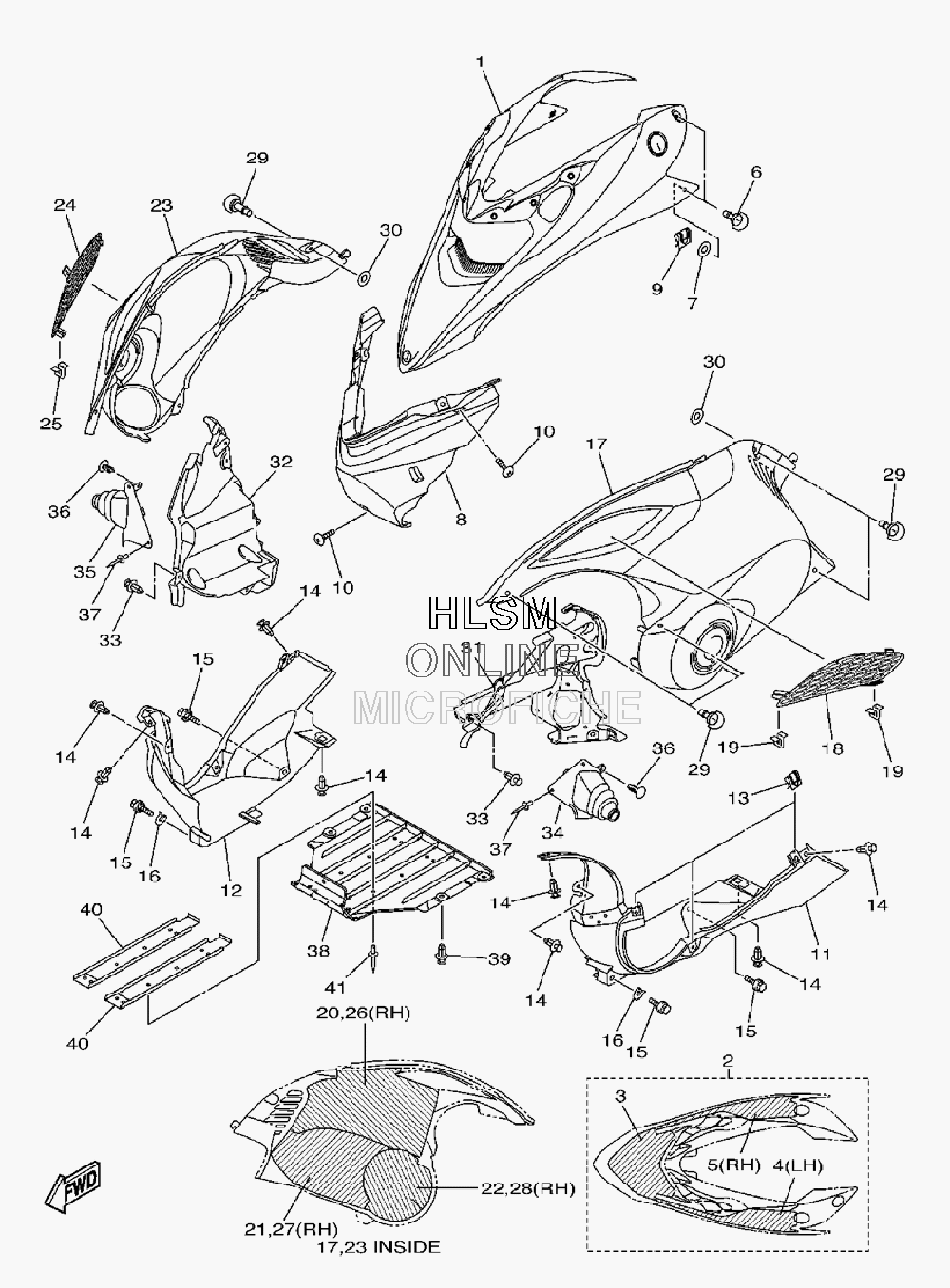

HOOD ASSY для Yamaha FX NYTRO XTX - 2009 года выпуска
-
№АртикулНазвание
-
18GL-77111-00-00 SHROUD FOR DPBSESHROUD FOR DPBSE
-
18GL-77111-30-00 SHROUD FOR BWS1SHROUD FOR BWS1
-
28GL-W7726-00-00 LINING SETLINING SET
-
38GL-77271-00-00 DAMPER, NOISE 11DAMPER, NOISE 11
-
48GL-77272-00-00 DAMPER, NOISE 12DAMPER, NOISE 12
-
58GL-77273-00-00 DAMPER, NOISE 13DAMPER, NOISE 13
-
63FV-28386-00-00 HEAD (SPECIAL FASTENER)HEAD (SPECIAL FASTENER)
-
75TJ-21757-00-00 WASHER, SPECIAL 1WASHER, SPECIAL 1
-
88GL-21912-00-00 PANEL, SUB FRAME 1PANEL, SUB FRAME 1
-
94XV-2177L-01-00 PLATE, SPRINGPLATE, SPRING
-
1090149-06263-00 SCREW, SPEC'L SHAPESCREW, SPEC'L SHAPE
-
118GL-21982-00-00 HOOD 1HOOD 1
-
128GL-21983-00-00 HOOD 2HOOD 2
-
134XV-2177L-01-00 PLATE, SPRINGPLATE, SPRING
-
1490269-08006-00 RIVETRIVET
-
1590109-06174-00 BOLTBOLT
-
168GL-77185-00-00 PLATE 1PLATE 1
-
178GL-2197H-00-00 HOOD 3HOOD 3
-
188GL-77109-00-00 LOUVER 5LOUVER 5
-
1990468-06001-00 CLIPCLIP
-
208GL-77274-00-00 DAMPER, NOISE 14DAMPER, NOISE 14
-
218GL-77275-00-00 DAMPER, NOISE 15DAMPER, NOISE 15
-
228GL-77276-00-00 DAMPER, NOISE 16DAMPER, NOISE 16
-
238GL-2198H-00-00 HOOD 4HOOD 4
-
248GL-77108-00-00 LOUVER 6LOUVER 6
-
2590468-06001-00 CLIPCLIP
-
268GL-77277-00-00 DAMPER, NOISE 17DAMPER, NOISE 17
-
278GL-77278-00-00 DAMPER, NOISE 18DAMPER, NOISE 18
-
288GL-77279-00-00 DAMPER, NOISE 19DAMPER, NOISE 19
-
293FV-28386-00-00 HEAD (SPECIAL FASTENER)HEAD (SPECIAL FASTENER)
-
305TJ-21757-00-00 WASHER, SPECIAL 1WASHER, SPECIAL 1
-
318GL-2196A-00-00 FRAME UNDER 1FRAME UNDER 1
-
328GL-2196E-00-00 FRAME, UNDER 2FRAME, UNDER 2
-
3390269-08006-00 RIVETRIVET
-
348GL-2198F-00-00 COVER 1COVER 1
-
358GL-2198J-00-00 COVER 3COVER 3
-
3690269-05003-00 RIVETRIVET
-
3790267-48024-00 RIVET, BLIND (5X23.6 BLACK)RIVET, BLIND (5X23.6 BLACK)
-
388GL-2193A-00-00 PROTECTORPROTECTOR
-
3990269-08006-00 RIVETRIVET
-
408GL-21997-00-00 PATCH 10PATCH 10
-
4190267-48018-00 RIVET, BLIND (4.8X18.6 BLACK)RIVET, BLIND (4.8X18.6 BLACK)
