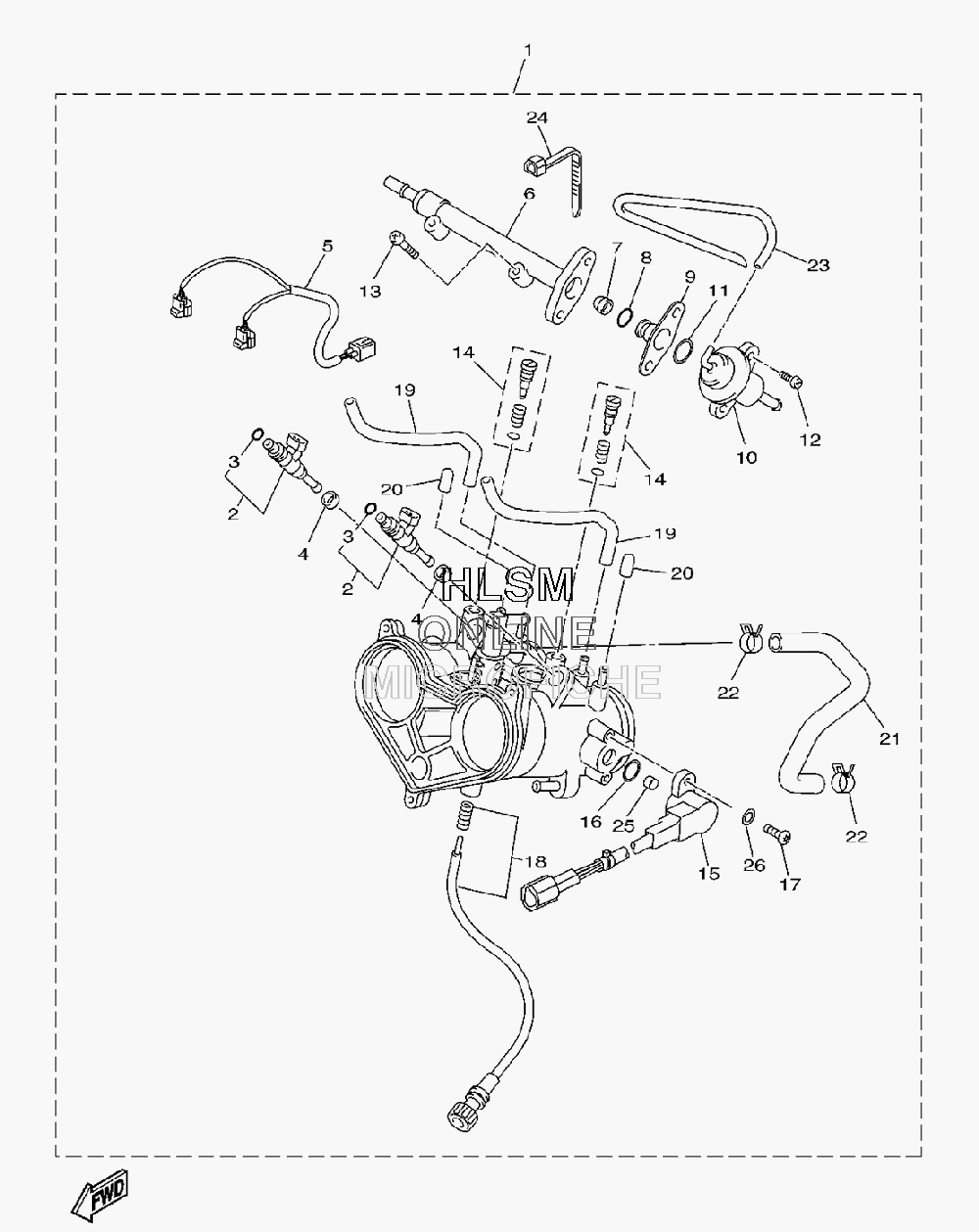

THROTTLE BODY ASSY для Yamaha PHAZER GT - 2009 года выпуска
-
№АртикулНазвание
-
18GC-13750-10-00 THROTTLE BODY ASSYTHROTTLE BODY ASSY
-
28GC-13761-00-00 INJECTORINJECTOR
-
38GC-13769-00-00 O-RINGO-RING
-
490430-09002-00 GASKETGASKET
-
58GC-82386-10-00 EXTENSION, WIRE HARNESSEXTENSION, WIRE HARNESS
-
68GC-13938-00-00 PIPEPIPE
-
73TJ-14569-40-00 STRAINERSTRAINER
-
88GC-13769-00-00 O-RINGO-RING
-
98GC-13661-00-00 SEAT, INTAKE VALVE 1SEAT, INTAKE VALVE 1
-
108GC-13906-00-00 REGULATOR, PRESSUREREGULATOR, PRESSURE
-
118GC-1416A-00-00 O-RINGO-RING
-
128GC-14325-00-00 SCREW, PAN HEADSCREW, PAN HEAD
-
138GC-14486-00-00 SCREW, RODSCREW, ROD
-
148GC-14104-00-00 AIR SCREW SETAIR SCREW SET
-
155BE-85885-10-00 THROTTLE SENSOR ASSYTHROTTLE SENSOR ASSY
-
164TV-14562-00-00 O-RINGO-RING
-
174YR-14216-00-00 SCREWSCREW
-
188GC-14503-00-00 ADJUST SCREW SETADJUST SCREW SET
-
198GC-14349-00-00 PIPEPIPE
-
208GC-14169-00-00 CAPCAP
-
218GC-14987-00-00 HOSEHOSE
-
228GC-13577-00-00 CLIPCLIP
-
238GC-14348-00-00 PIPE 1PIPE 1
-
248GC-13575-00-00 BANDBAND
-
254TV-14534-00-00 COLLARCOLLAR
-
264YR-14557-00-00 WASHERWASHER
Все узлы модели:
- BELT GUARD W/ TOOL BOX
- BRAKE ASSY
- BUMPER - FRONT AND REAR
- CAMSHAFT W/ CAMSHAFT CHAIN ASSY
- CHAINCASE - SPROCKET AND CHAINS (OPTION)
- CHAINCASE ASSY
- CHAINCASE ASSY 2
- CLUTCH - DRIVE
- CLUTCH - DRIVEN W/ DRIVE AXLE
- CLUTCH - REPAIR KIT (OPTION)
- CLUTCH - TUNE-UP KIT (OPTION)
- CLUTCH - WEIGHTS AND SPRINGS (OPTION)
- CONSOLE ASSY
- COOLING SYSTEM
- CRANKCASE ASSY
- CRANKCASE COVER ASSY
- CRANKSHAFT W/ PISTON ASSY
- CYLINDER W/ HEAD ASSY
- DECALS
- DRIVE TRAIN ASSEMBLY
- ELECTRICAL - BATTERY ASSY
- ELECTRICAL - COIL, CDI, RECTIFIER, RELAYS AND SWITCHES
- ELECTRICAL - HEADLIGHT ASSY
- ELECTRICAL - INSTRUMENTS
- ELECTRICAL - MAGNETO ASSEMBLY
- ELECTRICAL - TAILLIGHT ASSY
- ENGINE MOUNTING
- EXHAUST SYSTEM
- FUEL TANK ASSY
- HANDLEBAR - CABLES AND GRIPS
- HANDLEBAR - SWITCHES AND LEVERS
- HANDLEBAR ASSY W/ STEERING ASSY
- HANDLEBAR PAD W/ STEERING GATE
- HOOD - WINDSHIELD ASSY
- HOOD ASSY
- INTAKE W/ AIR BOX ASSY - FUEL PUMP
- MODEL INFO - COLOR CHART
- OIL COOLER ASSY W/ OIL FILTER
- OIL PUMP ASSY
- OIL TANK ASSY
- REAR VIEW MIRROR ASSY (OPTION)
- REFLECTOR ASSY
- SEAT ASSY
- STARTER - ELECTRICAL STARTER ASSY
- STARTER - REDUCTION GEAR W/ CLUTCH ASSY
- SUSPENSION - FRONT W/ SKI ASSY
- SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK
- SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK 2
- • THROTTLE BODY ASSY
- TUNNEL ASSEMBLY W/ LOWER NOSEPAN
- VALVE ASSY
- WATER PUMP ASSY
