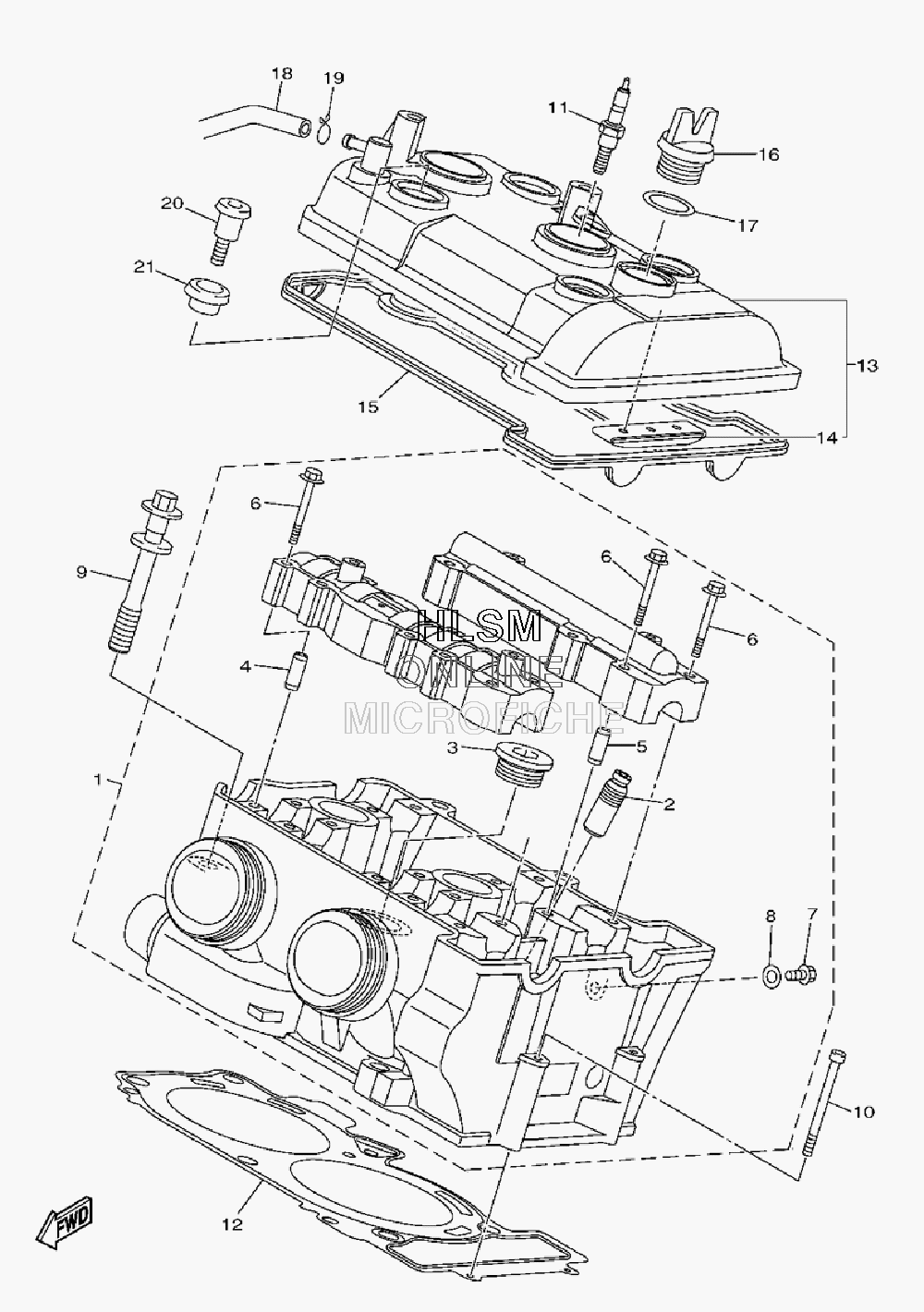

CYLINDER W/ HEAD ASSY для Yamaha PHAZER RTX - 2009 года выпуска
-
№АртикулНазвание
-
18GC-11101-03-00 CYLINDER HEAD ASSYCYLINDER HEAD ASSY
-
25NL-11133-10-00 GUIDE, VALVE 1GUIDE, VALVE 1
-
390340-20004-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
491808-16023-00 PIN, DOWELPIN, DOWEL
-
591808-16023-00 PIN, DOWELPIN, DOWEL
-
690105-06027-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
795022-06012-00 BOLT, FLANGEBOLT, FLANGE
-
890430-06014-00 GASKETGASKET
-
990119-10004-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1091312-06060-00 BOLTBOLT
-
11NGK-CR9EK-B0-00 PLUG, SPARK (NGK CR9EKB)PLUG, SPARK (NGK CR9EKB)
-
128GC-11181-00-00 GASKET, CYLINDER HEAD 1GASKET, CYLINDER HEAD 1
-
138GC-11191-00-00 COVER, CYLINDER HEAD 1COVER, CYLINDER HEAD 1
-
145BE-12241-00-00 GUIDE, STOPPER 2GUIDE, STOPPER 2
-
158GC-11193-00-00 GASKET, HEAD COVER 1GASKET, HEAD COVER 1
-
163Y1-15363-00-00 PLUG, OILPLUG, OIL
-
1793210-19123-00 O-RINGO-RING
-
188GC-11166-00-00 PIPE, BREATHER 1PIPE, BREATHER 1
-
1990467-100A1-00 CLIPCLIP
-
2090109-066F0-00 BOLTBOLT
-
215VY-1111G-00-00 RUBBER, MOUNT 1RUBBER, MOUNT 1
