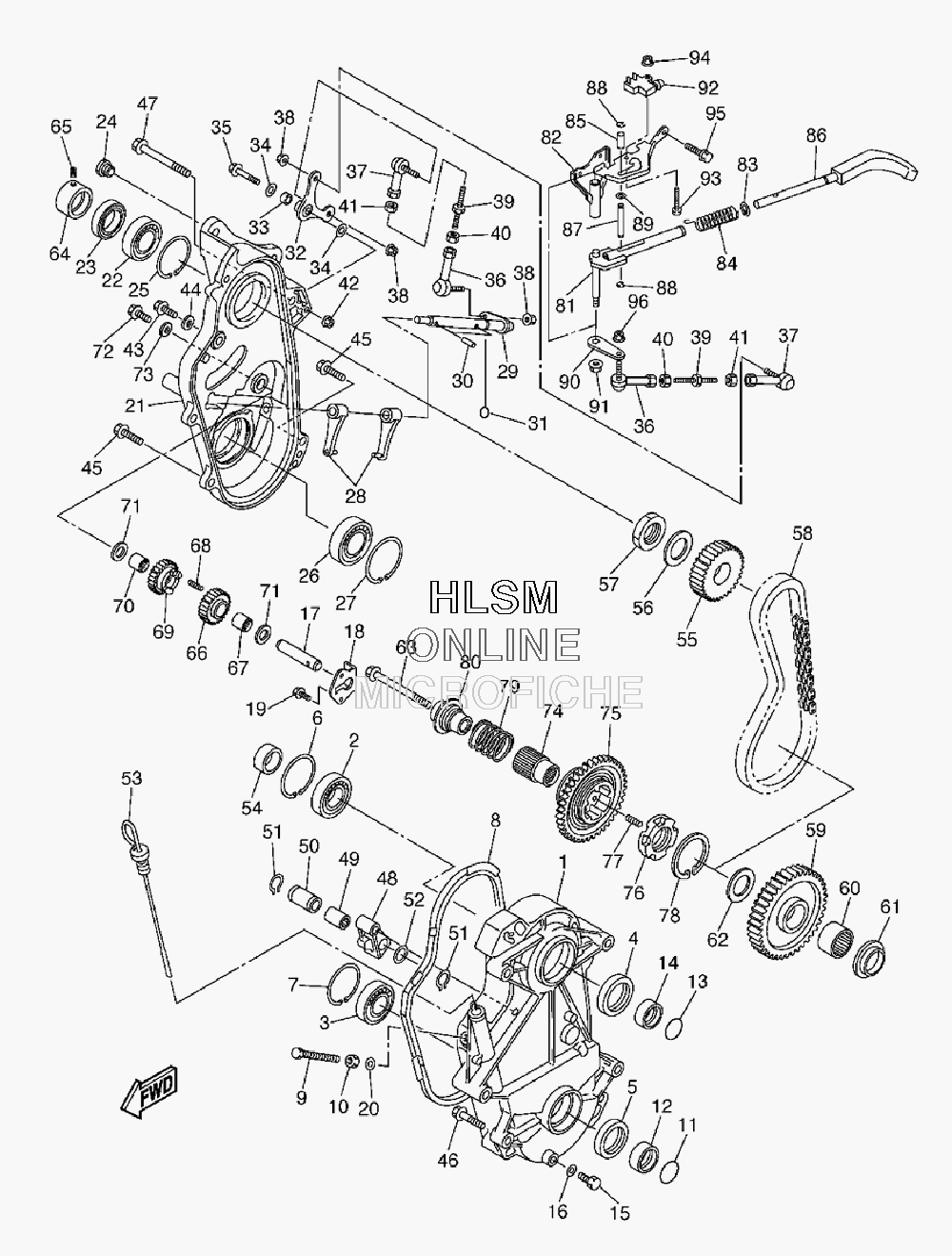

CHAINCASE ASSY для Yamaha RS VENTURE 2-PASS - 2009 года выпуска
-
№АртикулНазвание
-
18FP-47541-10-00 HOUSING, CHAINHOUSING, CHAIN
-
293306-20601-00 BEARINGBEARING
-
393306-20592-00 BEARINGBEARING
-
493102-40014-00 OIL SEALOIL SEAL
-
593102-35010-00 OIL SEALOIL SEAL
-
699009-62500-00 CIRCLIPCIRCLIP
-
799009-52500-00 CIRCLIPCIRCLIP
-
88FP-47558-00-00 RING, HOUSINGRING, HOUSING
-
990101-10357-00 BOLTBOLT
-
1095302-10700-00 NUTNUT
-
1193210-25071-00 O-RINGO-RING
-
1290387-2508C-00 COLLARCOLLAR
-
1393210-29282-00 O-RINGO-RING
-
1490387-30004-00 COLLARCOLLAR
-
1597002-08014-00 BOLTBOLT
-
1690210-08017-00 WASHER, SEALWASHER, SEAL
-
178CW-1761A-00-00 SHAFT, 1SHAFT, 1
-
188CW-47591-00-00 PLATEPLATE
-
1990105-060A6-00 BOLT, FLANGEBOLT, FLANGE
-
2090201-106H5-00 WASHER, PLATEWASHER, PLATE
-
218HF-47543-00-00 CAP, HOUSINGCAP, HOUSING
-
2293306-20511-00 BEARINGBEARING
-
2393102-35473-00 OIL SEALOIL SEAL
-
2490179-10679-00 NUT, SPEC'L SHAPENUT, SPEC'L SHAPE
-
2599009-52500-00 CIRCLIPCIRCLIP
-
2693306-00711-00 BEARINGBEARING
-
2799009-62500-00 CIRCLIPCIRCLIP
-
288GL-18511-01-00 FORK, SHIFT 1FORK, SHIFT 1
-
298FR-18197-00-00 SHAFTSHAFT
-
3091609-50022-00 PIN, SPRINGPIN, SPRING
-
3193210-12131-00 O-RINGO-RING
-
3193210-12131-00 O-RINGO-RING
-
328FR-18198-00-00 LEVERLEVER
-
3390387-0608T-00 COLLARCOLLAR
-
3490201-06033-00 WASHER, PLATEWASHER, PLATE
-
3595812-06040-00 BOLT, FLANGEBOLT, FLANGE
-
36J45-23845-00-00 JOINT, UNIVERSAL 2JOINT, UNIVERSAL 2
-
3788T-18157-00-00 JOINT 2JOINT 2
-
3895602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
3926H-18115-00-00 ROD, SHIFTROD, SHIFT
-
4095302-06600-00 NUTNUT
-
4190170-06289-00 NUTNUT
-
4295602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
4390105-060A6-00 BOLT, FLANGEBOLT, FLANGE
-
4490210-06006-00 WASHER, SEALWASHER, SEAL
-
4590105-08108-00 BOLT, FLANGEBOLT, FLANGE
-
4695822-10045-00 BOLT, FLANGEBOLT, FLANGE
-
4795822-10090-00 BOLT, FLANGEBOLT, FLANGE
-
488ES-47613-00-00 HOLDERHOLDER
-
4993311-32685-00 BEARINGBEARING
-
5090387-22005-00 COLLARCOLLAR
-
5199009-26400-00 CIRCLIPCIRCLIP
-
5290201-266P2-00 WASHER, PLATEWASHER, PLATE
-
538FA-47546-01-00 LEVEL, OILLEVEL, OIL
-
5490387-30005-00 COLLARCOLLAR
-
558FA-17682-20-00 SPROCKET, CHAIN DRIVE (22T)SPROCKET, CHAIN DRIVE (22T)
-
5690208-28001-00 WASHER, CONICAL SPRINGWASHER, CONICAL SPRING
-
5790170-28009-00 NUTNUT
-
5894890-09070-00 CHAIN (70L) BORG WARNCHAIN (70L) BORG WARN
-
598FB-47587-90-00 SPROCKET, CHAIN DRIVEN (39T)SPROCKET, CHAIN DRIVEN (39T)
-
6093317-33179-00 BEARINGBEARING
-
6190387-2008G-00 COLLARCOLLAR
-
6290201-320S3-00 WASHER, PLATEWASHER, PLATE
-
6390105-10320-00 BOLT, FLANGEBOLT, FLANGE
-
648HF-47536-00-00 COLLARCOLLAR
-
6590113-06064-00 BOLT, SETBOLT, SET
-
668FB-17692-00-00 SPROCKET, DRIVE (18T)SPROCKET, DRIVE (18T)
-
6793317-21578-00 BEARING, CYLINDRICALBEARING, CYLINDRICAL
-
6890501-060A1-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
698CW-17143-00-00 GEAR, REVERSE PINION 1 (18T)GEAR, REVERSE PINION 1 (18T)
-
7093317-21578-00 BEARINGBEARING
-
7190201-16245-00 WASHER, PLATEWASHER, PLATE
-
7290105-060A6-00 BOLT, FLANGEBOLT, FLANGE
-
7390210-06006-00 WASHER, SEALWASHER, SEAL
-
748CW-47571-00-00 JOURNAL 1JOURNAL 1
-
758CW-17243-00-00 GEAR, REVERSE WHEEL 1 (50T)GEAR, REVERSE WHEEL 1 (50T)
-
768CW-17492-00-00 DOG, TRANSMISSION SHIFTDOG, TRANSMISSION SHIFT
-
7790501-066J5-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
7893440-39175-00 CIRCLIP, OUTERCIRCLIP, OUTER
-
7990501-260A0-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
808GL-48566-00-00 COLLARCOLLAR
-
818ER-18112-01-00 ARM, SHIFTARM, SHIFT
-
828ER-18161-00-00 GUIDE, PLATE STOPPERGUIDE, PLATE STOPPER
-
8399009-18400-00 CIRCLIPCIRCLIP
-
8490501-130A0-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
8590387-06059-00 COLLARCOLLAR
-
868ER-18174-00-00 KNOB, SHIFT LEVERKNOB, SHIFT LEVER
-
8790249-06002-00 PINPIN
-
8893410-06053-00 CIRCLIPCIRCLIP
-
8990201-067F9-00 WASHER, PLATEWASHER, PLATE
-
908ER-1811A-01-00 PLATE, SHIFT ARMPLATE, SHIFT ARM
-
9195607-06200-00 NUT, SELF U-FLANGENUT, SELF U-FLANGE
-
92J51-82817-00-00 SWITCH, NEUTRALSWITCH, NEUTRAL
-
9398907-04020-00 SCREW, BINDSCREW, BIND
-
9495607-04100-00 NUT, UNUT, U
-
9595822-08020-00 BOLT, FLANGEBOLT, FLANGE
-
9695602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
