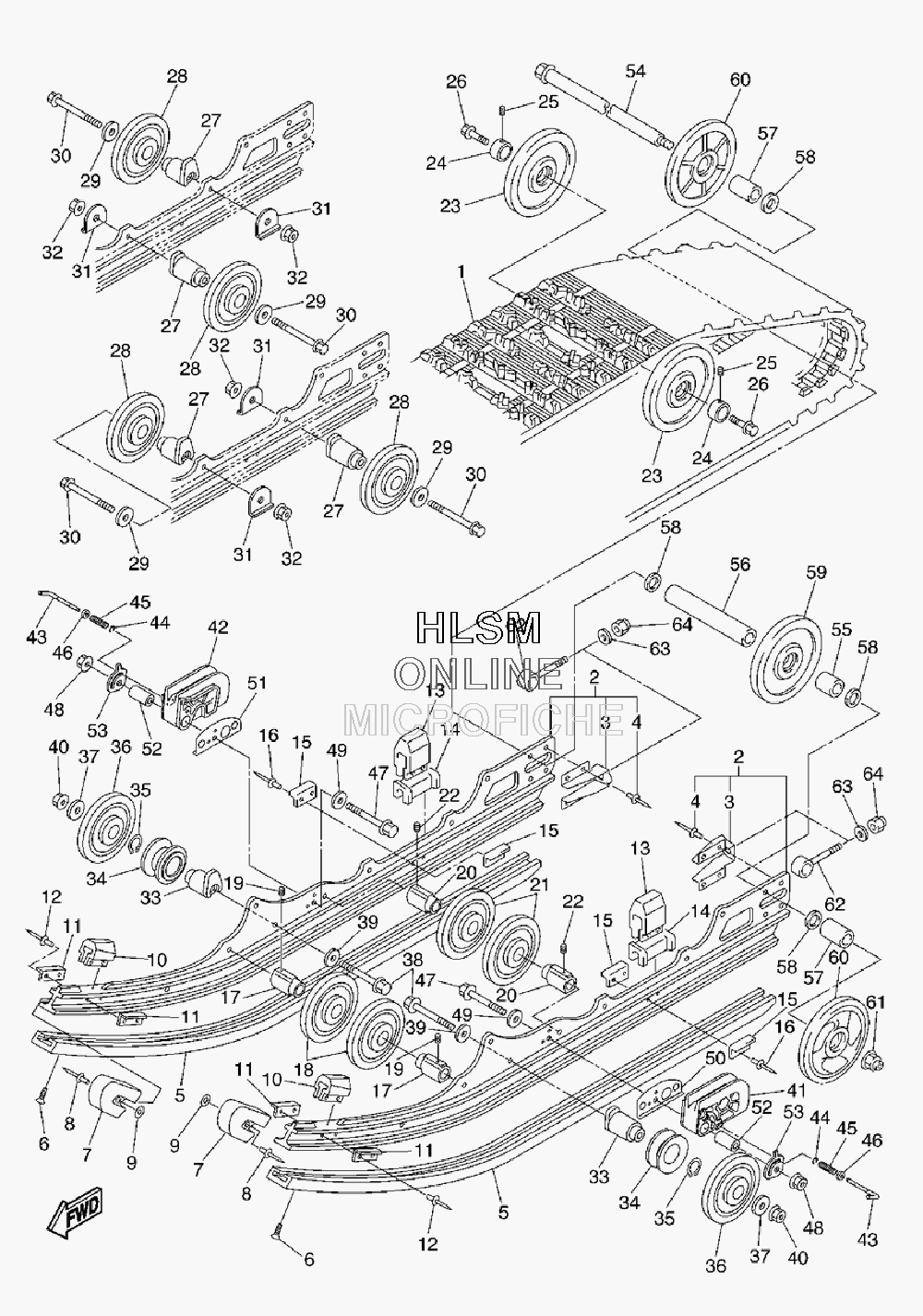

SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK для Yamaha VENTURE LITE 2-PASS - 2009 года выпуска
-
№АртикулНазвание
-
18ET-47110-10-00 TRACK ASSYTRACK ASSY
-
28ET-W4741-11-00 FRAME, SLIDINGFRAME, SLIDING
-
38DM-4741B-00-00 BRACKETBRACKET
-
48V0-47468-00-00 RIVETRIVET
-
58ET-47421-00-00 SLIDE RUNNER BLK 144SLIDE RUNNER BLK 144
-
690151-06010-00 SCREW, COUNTERSUNKSCREW, COUNTERSUNK
-
78ED-47422-00-00 RUNNER, SLIDING 2RUNNER, SLIDING 2
-
890267-48194-00 RIVET, BLIND (4.8X28 SILVER)RIVET, BLIND (4.8X28 SILVER)
-
990201-047R8-00 WASHER, PLATEWASHER, PLATE
-
108ES-47456-00-00 DAMPER 1DAMPER 1
-
118K2-47458-01-00 PLATE, DAMPERPLATE, DAMPER
-
1290267-48199-00 RIVET, BLIND (4.8X28.3)RIVET, BLIND (4.8X28.3)
-
138CM-47457-00-00 DAMPER 2DAMPER 2
-
148CM-47341-00-00 SPACERSPACER
-
158AX-47458-00-00 PLATE, DAMPERPLATE, DAMPER
-
1690267-48199-00 RIVET, BLIND (4.8X28.3)RIVET, BLIND (4.8X28.3)
-
178ES-47319-01-00 COLLARCOLLAR
-
188ET-47310-00-00 SUSPENSION WHEEL ASSYSUSPENSION WHEEL ASSY
-
1990113-06039-00 BOLT, SETBOLT, SET
-
208ES-47319-01-00 COLLARCOLLAR
-
218ET-47310-00-00 SUSPENSION WHEEL ASSYSUSPENSION WHEEL ASSY
-
2290113-06039-00 BOLT, SETBOLT, SET
-
238CR-47550-00-00 GUIDE WHEEL ASSYGUIDE WHEEL ASSY
-
248FS-47365-00-00 COLLAR 1COLLAR 1
-
2590113-06039-00 BOLT, SETBOLT, SET
-
2690109-10030-00 BOLTBOLT
-
278ES-47419-00-00 BRACKET 7BRACKET 7
-
288ET-47310-00-00 SUSPENSION WHEEL ASSYSUSPENSION WHEEL ASSY
-
2990201-10038-00 WASHER, PLATEWASHER, PLATE
-
3095812-10080-00 BOLT, FLANGEBOLT, FLANGE
-
3190214-10003-00 WASHER, CLAWWASHER, CLAW
-
3295602-10200-00 NUT, SELF LOCKINGNUT, SELF LOCKING
-
338ES-47419-10-00 BRACKET 7BRACKET 7
-
348ET-47446-00-00 HOOK 1HOOK 1
-
3599009-35400-00 CIRCLIPCIRCLIP
-
368ET-47310-00-00 SUSPENSION WHEEL ASSYSUSPENSION WHEEL ASSY
-
3790201-10038-00 WASHER, PLATEWASHER, PLATE
-
3895812-10080-00 BOLT, FLANGEBOLT, FLANGE
-
3990201-10052-00 WASHER, PLATEWASHER, PLATE
-
4095602-10200-00 NUT, SELF LOCKINGNUT, SELF LOCKING
-
418ET-47435-10-00 SPRING, OUTSIDE 1SPRING, OUTSIDE 1
-
428ET-47436-10-00 SPRING, OUTSIDE 2SPRING, OUTSIDE 2
-
438ET-47449-10-00 PIN 1PIN 1
-
4499001-04600-00 CIRCLIPCIRCLIP
-
4590501-08665-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
4690387-061Y1-00 WASHER, PLATEWASHER, PLATE
-
4790105-10029-00 BOLT, FLANGEBOLT, FLANGE
-
4895607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
4990201-106F2-00 WASHER, PLATEWASHER, PLATE
-
508ET-47374-10-00 WASHER 1WASHER 1
-
518ET-47375-10-00 WASHER 2WASHER 2
-
5290387-106K8-00 COLLARCOLLAR
-
538ET-47347-00-00 WASHER, LOCKWASHER, LOCK
-
548L8-47520-10-00 REAR AXLE COMP.REAR AXLE COMP.
-
5590387-20015-00 COLLARCOLLAR
-
5690387-20016-00 COLLARCOLLAR
-
5790387-20019-00 COLLARCOLLAR
-
5890201-205R6-00 WASHER, PLATEWASHER, PLATE
-
598CR-47550-10-00 GUIDE WHEEL ASSYGUIDE WHEEL ASSY
-
608EK-47550-10-00 GUIDE WHEEL ASSYGUIDE WHEEL ASSY
-
6195602-14200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
628DM-47479-00-00 COLLAR 3COLLAR 3
-
6392902-10600-00 WASHER, PLATEWASHER, PLATE
-
6495702-10300-00 NUT, NYLONNUT, NYLON
