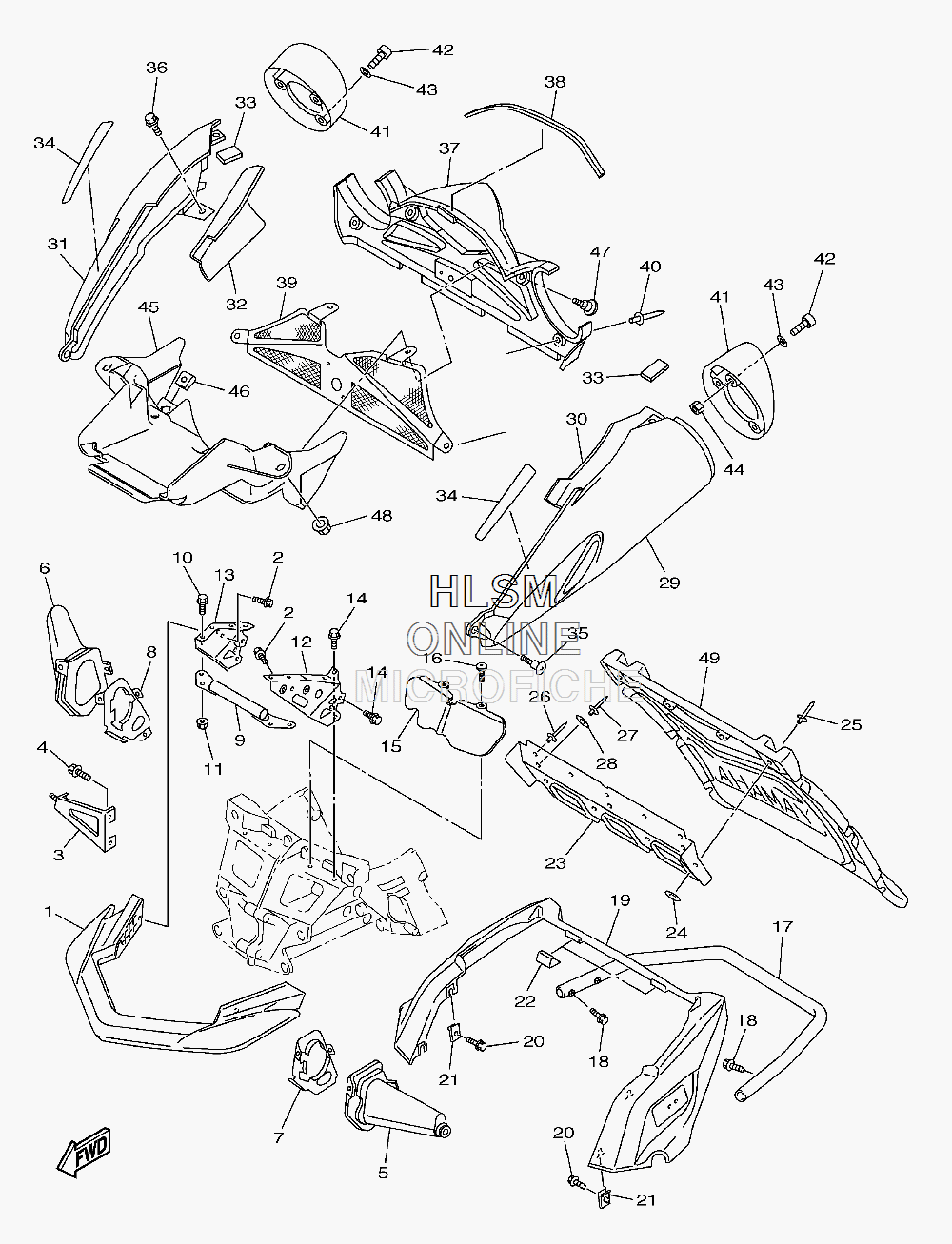

BUMPER - FRONT AND REAR для Yamaha APEX GT - 2010 года выпуска
-
№АртикулНазвание
-
18FA-77511-01-00 BUMPER, FRONT 1BUMPER, FRONT 1
-
295812-08016-00 BOLT, FLANGEBOLT, FLANGE
-
38ES-2193E-00-00 BRACKET, OIL TANK 1BRACKET, OIL TANK 1
-
495822-08014-00 BOLT, FLANGEBOLT, FLANGE
-
58FU-2198F-01-00 COVER 1COVER 1
-
68FU-2198J-01-00 COVER 3COVER 3
-
78FU-2195E-01-00 PLATE, STRG BRACKET 1PLATE, STRG BRACKET 1
-
88FU-2195F-01-00 PLATE, STRG BRACKET 2PLATE, STRG BRACKET 2
-
98FP-21979-00-00 BRKT., FR. HOODBRKT., FR. HOOD
-
1095822-06014-00 BOLT, FLANGEBOLT, FLANGE
-
1195702-06500-00 NUT, FLANGENUT, FLANGE
-
128FA-21949-00-00 BRACKET, FRONTBRACKET, FRONT
-
138FA-21959-00-00 BRACKET, FRONT BUMPERBRACKET, FRONT BUMPER
-
1495822-08016-00 BOLT, FLANGEBOLT, FLANGE
-
158FP-22865-00-00 COVER, FRONTCOVER, FRONT
-
1690109-06261-00 BOLTBOLT
-
178FP-77541-01-00 BUMPER, REAR 1BUMPER, REAR 1
-
1895822-08020-00 BOLT, FLANGEBOLT, FLANGE
-
198FA-77542-00-00 BUMPER, REAR 2BUMPER, REAR 2
-
2095802-06016-00 BOLT, FLANGEBOLT, FLANGE
-
2190183-06053-00 NUT, SPRINGNUT, SPRING
-
228FA-7717H-00-00 TAPE 4TAPE 4
-
238GH-77596-01-00 STOPPER, FLAPSTOPPER, FLAP
-
2490201-04325-00 WASHER, PLATEWASHER, PLATE
-
2590267-47200-00 RIVET, BLIND (4.7X19.5 BLACK)RIVET, BLIND (4.7X19.5 BLACK)
-
2690267-48095-00 RIVET,BLIND (4.8X12.6 SILVER)RIVET,BLIND (4.8X12.6 SILVER)
-
2790267-48083-00 RIVET,BLIND (4.8X15.2 SILVER)RIVET,BLIND (4.8X15.2 SILVER)
-
2890201-05025-00 WASHER, PLATEWASHER, PLATE
-
298FP-77551-01-33 PROTECTOR 1 (FOR YB)PROTECTOR 1 (FOR YB)
-
298FP-77551-01-P4 PROTECTOR 1 (FOR DPBMC)PROTECTOR 1 (FOR DPBMC)
-
308FP-77261-00-00 LINING, SHROUD 1LINING, SHROUD 1
-
318FP-77552-01-P4 PROTECTOR 2 (FOR DPBMC)PROTECTOR 2 (FOR DPBMC)
-
318FP-77552-01-33 PROTECTOR 2 (FOR YB)PROTECTOR 2 (FOR YB)
-
328FP-77262-00-00 LINING, SHROUD 2LINING, SHROUD 2
-
338FP-77263-00-00 LINING, SHROUD 3LINING, SHROUD 3
-
348FR-77561-00-00 PROTECTOR, SIDE 1PROTECTOR, SIDE 1
-
3590154-06009-00 SCREW, BINDINGSCREW, BINDING
-
3690109-06220-00 BOLTBOLT
-
378FP-84516-01-00 COVER, TAILLIGHTCOVER, TAILLIGHT
-
388FP-77234-00-00 TRIM 8TRIM 8
-
398FP-77441-00-00 LOUVER 1LOUVER 1
-
4090267-47187-00 RIVET, BLIND (4.7X16.4 BLACK)RIVET, BLIND (4.7X16.4 BLACK)
-
418FP-77517-00-00 CAPCAP
-
4291314-06020-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
4392990-06200-00 WASHER, PLAINWASHER, PLAIN
-
4495380-06600-00 NUT, HEXAGONNUT, HEXAGON
-
458FP-2117E-01-00 BRACKET, TAILLIGHTBRACKET, TAILLIGHT
-
4690183-06053-00 NUT, SPRINGNUT, SPRING
-
4790109-06220-00 BOLTBOLT
-
4895602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
498GT-K7595-00-00 FLAPFLAP
