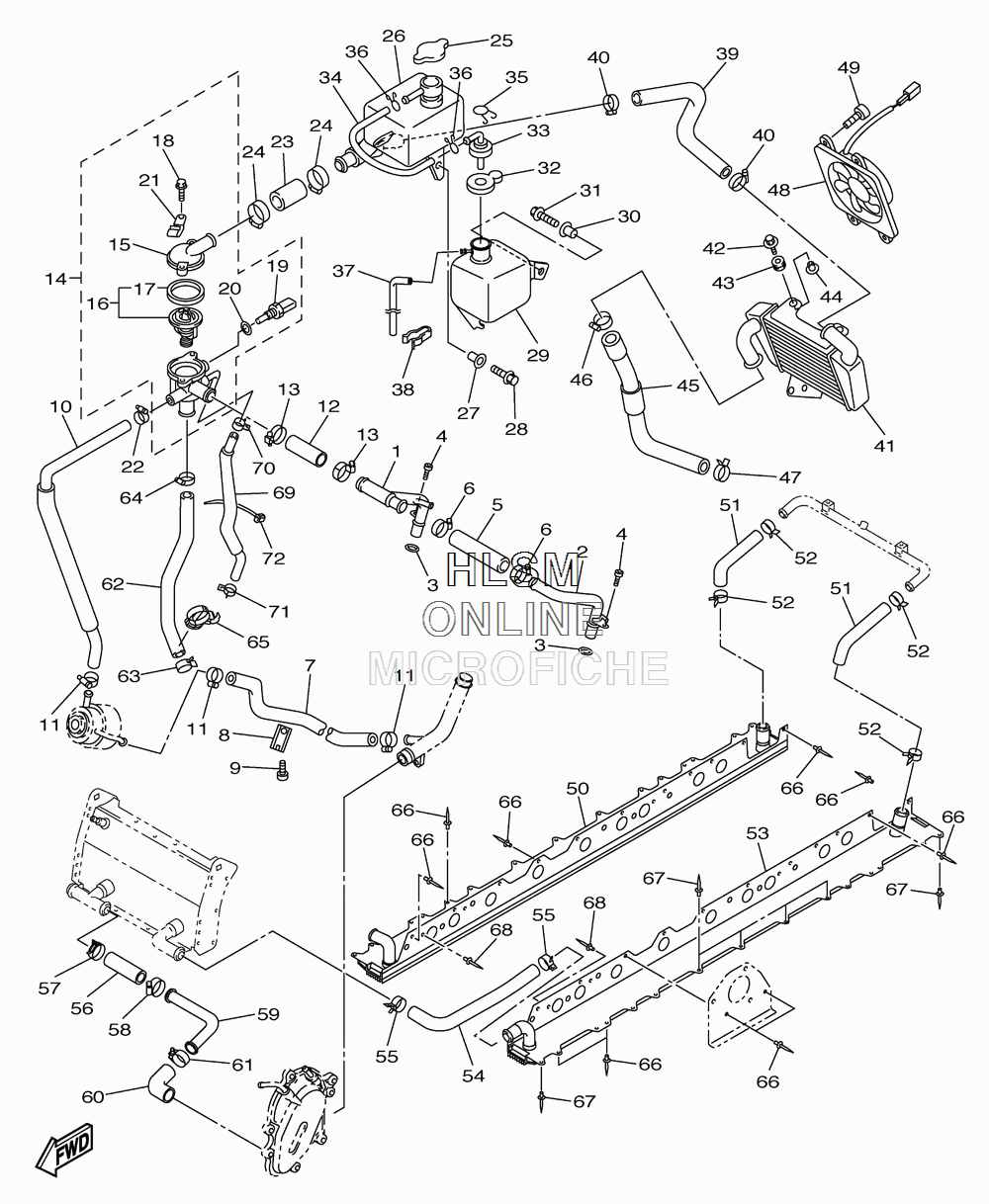

RADIATOR & HOSE для Yamaha APEX LTX GT - 2010 года выпуска
-
№АртикулНазвание
-
18FP-12482-01-00 PIPE 2PIPE 2
-
28FP-12483-01-00 PIPE 3PIPE 3
-
393210-18417-00 O-RINGO-RING
-
491312-06014-00 BOLTBOLT
-
58FA-1243A-00-00 HOSE 1HOSE 1
-
690450-28014-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
78FA-12588-00-00 HOSE 5HOSE 5
-
88FA-12491-00-00 CLAMP 1CLAMP 1
-
991312-06012-00 BOLT (4MY)BOLT (4MY)
-
108FA-12589-01-00 HOSE 6HOSE 6
-
1190450-19001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
128FP-1243E-00-00 HOSE 2HOSE 2
-
1390450-35001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
148FP-12580-00-00 JOINT ASSYJOINT ASSY
-
158FP-12413-00-00 COVER, THERMOSTATCOVER, THERMOSTAT
-
168FP-12410-00-00 THERMOSTAT ASSYTHERMOSTAT ASSY
-
178FP-12412-00-00 SEAL, THERMOSTATSEAL, THERMOSTAT
-
1895022-06020-00 BOLT, FLANGEBOLT, FLANGE
-
198CC-85790-01-00 THERMOSENSOR ASSYTHERMOSENSOR ASSY
-
2090201-12790-00 WASHER, PLATEWASHER, PLATE
-
2190465-06M28-00 CLAMPCLAMP
-
2290450-19001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
238FP-1243F-00-00 HOSE,3HOSE,3
-
2490450-35001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
2522W-12462-00-00 CAP, RADIATORCAP, RADIATOR
-
268FP-1249B-01-00 TANK, RESERVETANK, RESERVE
-
2790387-06024-00 COLLARCOLLAR
-
2895822-06020-00 BOLT, FLANGEBOLT, FLANGE
-
298FP-21871-01-00 TANK, RECOVERYTANK, RECOVERY
-
3090387-06648-00 COLLARCOLLAR
-
3195822-06016-00 BOLT, FLANGEBOLT, FLANGE
-
328FP-21875-00-00 CAPCAP
-
3326H-21828-00-00 ELBOWELBOW
-
3490445-094K7-00 HOSE (L180)HOSE (L180)
-
3590467-11019-00 CLIPCLIP
-
3690467-08003-00 CLIPCLIP
-
3790445-08007-00 HOSEHOSE
-
3890464-15065-00 CLAMPCLAMP
-
398FP-1244G-00-00 HOSE, 4HOSE, 4
-
4090450-35001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
418FR-12461-00-00 RADIATOR COMPRADIATOR COMP
-
4290119-06181-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
4390480-10289-00 GROMMETGROMMET
-
4490387-077M3-00 COLLARCOLLAR
-
458FP-1244H-02-00 HOSE 5HOSE 5
-
4690450-35001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
4790467-28046-00 CLIPCLIP
-
488FP-12405-00-00 BLOWER ASSYBLOWER ASSY
-
4990149-05129-00 BOLT,SOCKETBOLT,SOCKET
-
508FT-1240F-00-00 HEAT EXCHANGERHEAT EXCHANGER
-
518FA-12476-00-00 PIPE 6PIPE 6
-
5290467-28046-00 CLIPCLIP
-
538FT-1240E-00-00 HEAT EXCHANGERHEAT EXCHANGER
-
548FA-12477-00-00 PIPE 7PIPE 7
-
5590467-28046-00 CLIPCLIP
-
568FP-1248A-00-00 PIPE 8PIPE 8
-
5790467-28046-00 CLIPCLIP
-
5890450-35001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
598FP-12564-01-00 PIPE, WATERPIPE, WATER
-
608FA-12479-02-00 JOINTJOINT
-
6190450-32002-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
628ET-1248E-00-00 PIPE 9PIPE 9
-
6390467-28046-00 CLIPCLIP
-
6490450-35001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
6590464-36001-00 CLAMPCLAMP
-
6690267-47195-00 RIVET, BLIND (4.7X16.4 YELLOW)RIVET, BLIND (4.7X16.4 YELLOW)
-
6790267-48023-00 RIVET, BLIND (4.8X12.1 YELLOW)RIVET, BLIND (4.8X12.1 YELLOW)
-
6890267-47197-00 RIVET, BLIND (4.7X19.5 SILVER)RIVET, BLIND (4.7X19.5 SILVER)
-
698FA-12579-00-00 HOSE 4HOSE 4
-
7090467-11090-00 CLIP,SCISSORCLIP,SCISSOR
-
7190467-11044-00 CLIPCLIP
-
7290464-13073-00 CLAMPCLAMP
