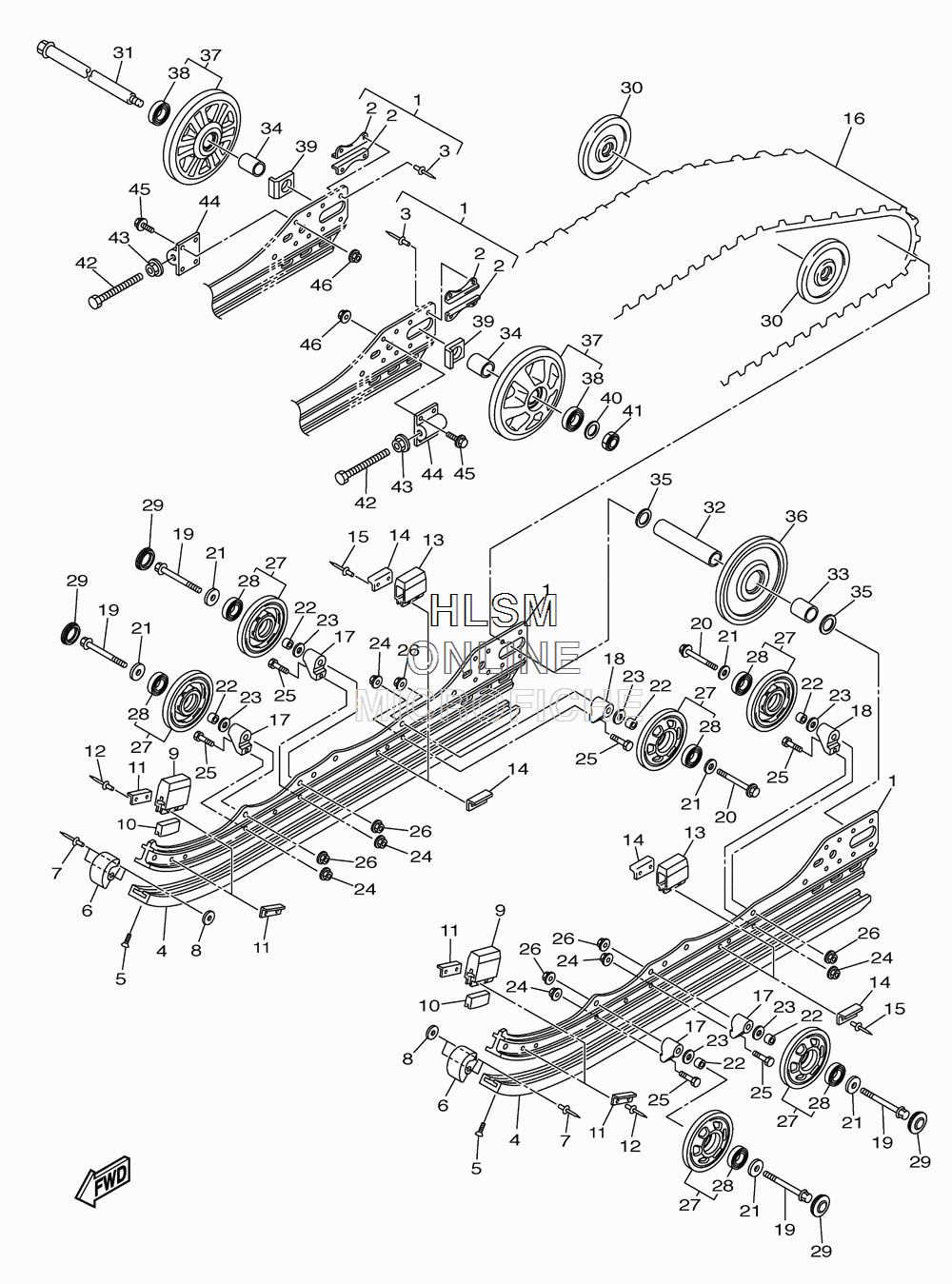

SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK для Yamaha APEX - 2010 года выпуска
-
№АртикулНазвание
-
18JA-W4741-00-00 FRAME, SLIDINGFRAME, SLIDING
-
28JA-4741B-00-00 BRACKETBRACKET
-
38V0-47468-00-00 RIVETRIVET
-
48FU-47421-00-00 SLIDE RUNNER BLK 121SLIDE RUNNER BLK 121
-
590151-06010-00 SCREW, CROSSRECESSSCREW, CROSSRECESS
-
68GL-47422-00-00 RUNNER, SLIDING 2RUNNER, SLIDING 2
-
790267-48194-00 RIVET, BLIND (4.8X28 SILVER)RIVET, BLIND (4.8X28 SILVER)
-
890201-047R8-00 WASHER, PLATEWASHER, PLATE
-
98JB-47456-00-00 DAMPER 1DAMPER 1
-
108FR-47341-00-00 SPACERSPACER
-
118AX-47458-00-00 PLATE, DAMPERPLATE, DAMPER
-
1290267-48199-00 RIVET, BLIND (4.8X28.3)RIVET, BLIND (4.8X28.3)
-
138JA-47457-00-00 DAMPER 2DAMPER 2
-
148AX-47458-00-00 PLATE, DAMPERPLATE, DAMPER
-
1590267-48199-00 RIVET, BLIND (4.8X28.3)RIVET, BLIND (4.8X28.3)
-
168FA-47110-10-00 TRACK ASSYTRACK ASSY
-
178CM-47419-10-00 BRACKET 7BRACKET 7
-
188CM-47419-30-00 BRACKET 7BRACKET 7
-
1990105-10241-00 BOLT, FLANGEBOLT, FLANGE
-
2090105-10150-00 BOLT, FLANGEBOLT, FLANGE
-
2190201-10038-00 WASHER, PLATEWASHER, PLATE
-
2290387-10031-00 COLLARCOLLAR
-
2390201-100S0-00 WASHER, PLATEWASHER, PLATE
-
2495602-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2590101-08774-00 BOLTBOLT
-
2695602-10200-00 NUT, U FLANGENUT, U FLANGE
-
278HF-47310-10-00 WHEEL BLK 130MMWHEEL BLK 130MM
-
2893306-00507-00 BEARINGBEARING
-
298HF-47317-00-00 CAP, WHEELCAP, WHEEL
-
308CR-47550-00-00 GUIDE WHEEL ASSYGUIDE WHEEL ASSY
-
318JA-47521-00-00 AXLE, REARAXLE, REAR
-
3290387-25029-00 COLLARCOLLAR
-
3390387-25028-00 COLLARCOLLAR
-
3490387-25027-00 COLLARCOLLAR
-
3590201-25025-00 WASHER, PLATEWASHER, PLATE
-
368CR-47550-30-00 GUIDE WHEEL ASSYGUIDE WHEEL ASSY
-
378HF-47550-20-00 GUIDE WHEEL ASSYGUIDE WHEEL ASSY
-
3893306-00507-00 BEARINGBEARING
-
398JA-47375-00-00 WASHER 2WASHER 2
-
4090201-22018-00 WASHER, PLATEWASHER, PLATE
-
4190185-22009-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
4290101-12041-00 BOLTBOLT
-
4395702-12500-00 NUT (3GG)NUT (3GG)
-
448JA-47463-00-00 BRACKET 5BRACKET 5
-
4590105-08183-00 BOLT, FLANGEBOLT, FLANGE
-
4695602-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
