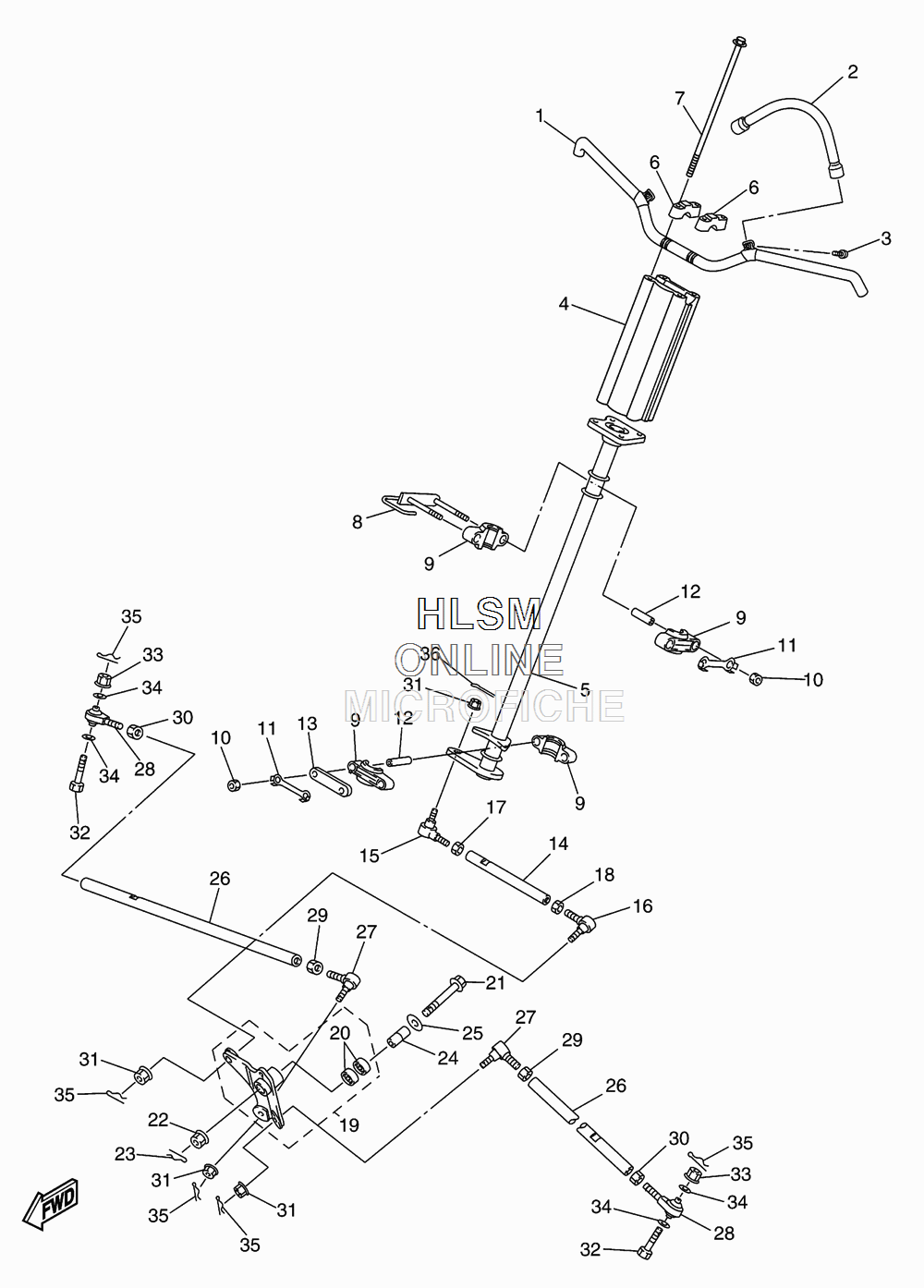

HANDLEBAR ASSY W/ STEERING ASSY для Yamaha FX NYTRO MTX SE 153 - 2010 года выпуска
-
№АртикулНазвание
-
18HA-26111-00-00 HANDLEBARHANDLEBAR
-
28GE-23829-00-00 STRAP, STRGSTRAP, STRG
-
392012-06020-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
48HA-2381B-00-00 JOINTJOINT
-
58GL-23813-00-00 COLUMN, STEERING 2COLUMN, STEERING 2
-
68K1-23814-00-00 HOLDER, HANDLE UPPERHOLDER, HANDLE UPPER
-
78GT-23876-00-00 BOLTBOLT
-
88GL-23872-00-00 HOLDER, BEARINGHOLDER, BEARING
-
98FA-23812-00-00 BEARING, STEERINGBEARING, STEERING
-
1095312-08600-00 NUTNUT
-
111UY-23894-01-00 WASHER, LOCK 1WASHER, LOCK 1
-
128HF-2412G-00-00 COLLARCOLLAR
-
138FA-23867-00-00 HOLDER 2HOLDER 2
-
148GL-23821-00-00 ROD, STEERING RELAYROD, STEERING RELAY
-
158CR-23845-10-00 JOINT, UNIVERSAL 2JOINT, UNIVERSAL 2
-
168CR-23847-00-00 JOINT, UNIVERSAL 3JOINT, UNIVERSAL 3
-
1795302-10700-00 NUTNUT
-
1890170-10186-00 NUT, HEXAGON (L/H THREAD)NUT, HEXAGON (L/H THREAD)
-
198GL-2389K-00-00 ARM PIVOT ASSYARM PIVOT ASSY
-
2093317-420A7-00 BEARINGBEARING
-
2190105-12070-00 BOLT, FLANGEBOLT, FLANGE
-
2295602-12200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2391402-20025-00 PIN, COTTERPIN, COTTER
-
248GL-2412G-00-00 COLLARCOLLAR
-
2590201-13016-00 WASHER, PLATEWASHER, PLATE
-
268HK-23831-00-00 ROD, TIEROD, TIE
-
278CR-23845-10-00 JOINT, UNIVERSAL 2JOINT, UNIVERSAL 2
-
288GC-23847-00-00 JOINT, UNIVERSAL 3JOINT, UNIVERSAL 3
-
2995302-10700-00 NUTNUT
-
3090170-10186-00 NUT, HEXAGON (L/H THREAD)NUT, HEXAGON (L/H THREAD)
-
3195702-10500-00 NUT, FLANGENUT, FLANGE
-
328GC-23493-00-00 BOLTBOLT
-
3395702-08500-00 NUT, FLANGENUT, FLANGE
-
3490201-06018-00 WASHER, PLATEWASHER, PLATE
-
3591402-20012-00 PIN, COTTERPIN, COTTER
-
3691402-20020-00 PIN, COTTERPIN, COTTER
