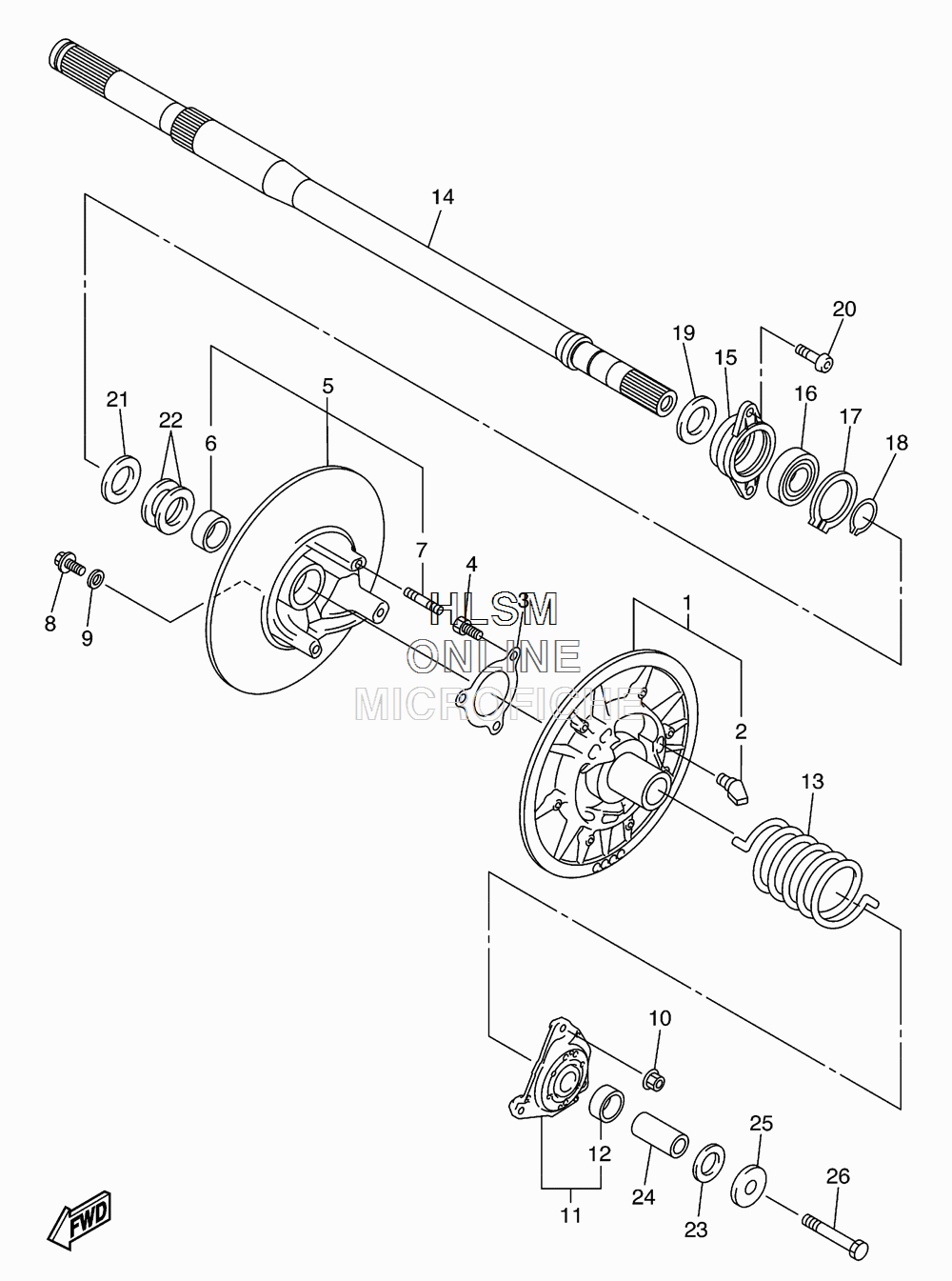

CLUTCH - DRIVEN W/ DRIVE AXLE для Yamaha FX NYTRO XTX - 2010 года выпуска
-
№АртикулНазвание
-
18GL-17660-00-00 SECONDARY FIXED SHEAVE COMP.SECONDARY FIXED SHEAVE COMP.
-
28AV-17688-10-00 SHOE, RAMPSHOE, RAMP
-
38BV-17656-00-00 STOPPER, HOLDERSTOPPER, HOLDER
-
490154-06062-00 BOLT,SOCKETBOLT,SOCKET
-
58BU-17670-20-00 SECONDARY SLIDING SHEAVESECONDARY SLIDING SHEAVE
-
690384-38243-00 BUSH, BIMETAL FORMEDBUSH, BIMETAL FORMED
-
795617-08630-00 BOLT, STUDBOLT, STUD
-
890105-06734-00 BOLT, FLANGEBOLT, FLANGE
-
990201-061H1-00 WASHER, PLATE (T=0.5)WASHER, PLATE (T=0.5)
-
990201-06037-00 WASHER, PLATE (T=1.0)WASHER, PLATE (T=1.0)
-
1090179-08655-00 NUTNUT
-
118BV-17604-31-00 SEAT SPRING SETSEAT SPRING SET
-
1290384-38243-00 BUSH, BIMETAL FORMEDBUSH, BIMETAL FORMED
-
1390508-60016-00 SPRING, TORSIONSPRING, TORSION
-
148GL-17681-00-00 SHAFT, SECONDARYSHAFT, SECONDARY
-
158GL-47631-00-00 HOUSING, BEARINGHOUSING, BEARING
-
1693306-20656-00 BEARINGBEARING
-
1799009-62500-00 CIRCLIPCIRCLIP
-
1899009-28400-00 CIRCLIPCIRCLIP
-
1990201-284P7-00 WASHER, PLATEWASHER, PLATE
-
2090149-08034-00 SCREWSCREW
-
2190201-284P7-00 WASHER, PLATEWASHER, PLATE
-
2290201-286K9-00 WASHER, PLATE (T1.0)WASHER, PLATE (T1.0)
-
2390201-25527-00 WASHER, PLATE (T1.0)WASHER, PLATE (T1.0)
-
2390201-252F1-00 WASHER, PLATE (T0.5)WASHER, PLATE (T0.5)
-
2490387-18014-00 COLLARCOLLAR
-
2590201-18020-00 WASHER, PLATEWASHER, PLATE
-
268GL-17698-00-00 BOLT, SECONDARYBOLT, SECONDARY
