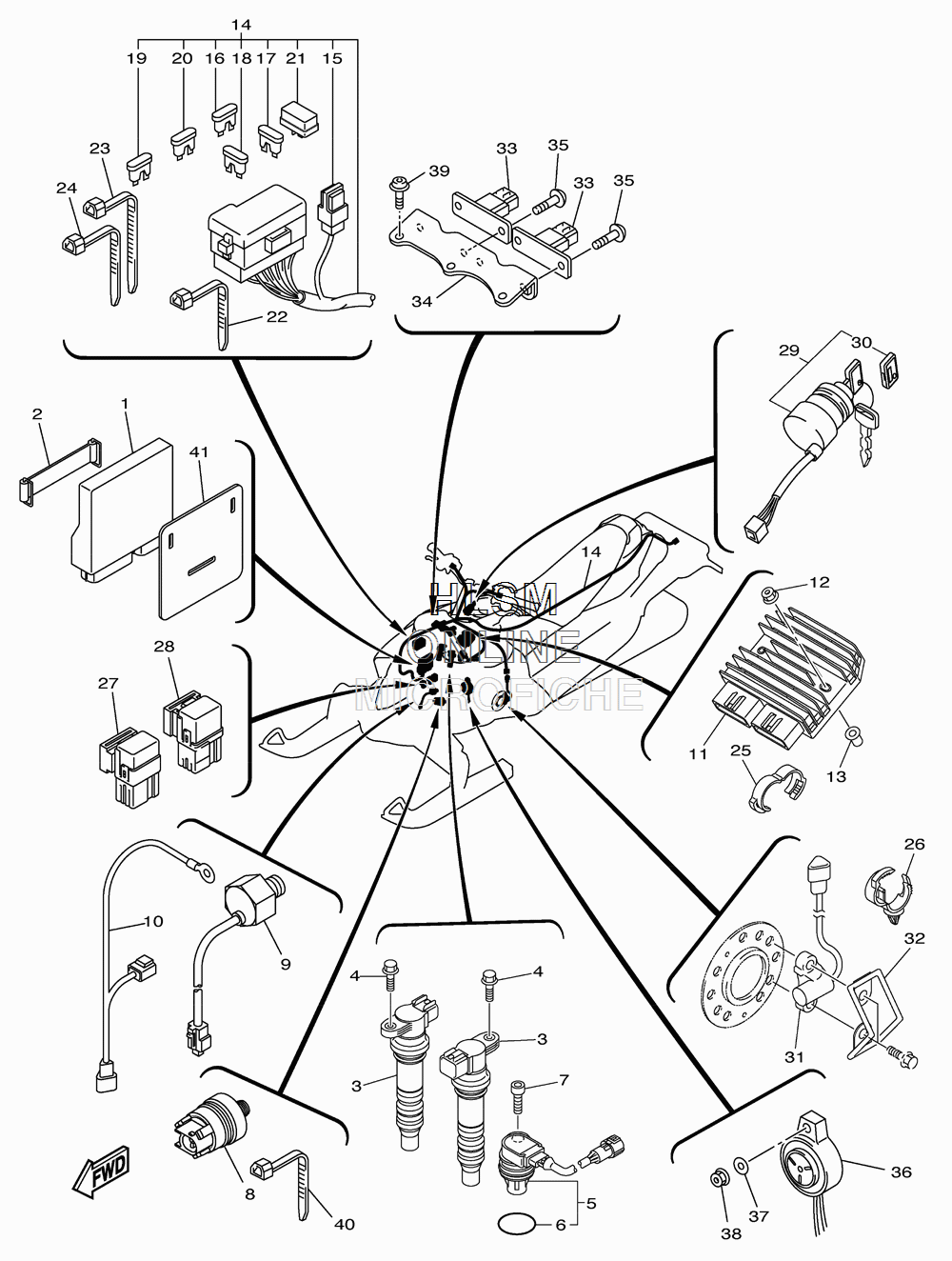

ELECTRICAL - COIL, CDI, RECTIFIER, RELAYS AND SWITCHES для Yamaha PHAZER MTX - 2010 года выпуска
-
№АртикулНазвание
-
18GP-8591A-20-00 ENGINE CONTROL UNIT ASSYENGINE CONTROL UNIT ASSY
-
22T4-82131-00-00 BAND, BATTERYBAND, BATTERY
-
38FP-82310-00-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
495812-06025-00 BOLT, FLANGEBOLT, FLANGE
-
58GC-85896-00-00 SENSOR, CAM POSITIONSENSOR, CAM POSITION
-
64D9-81168-00-00 O-RINGO-RING
-
790110-06175-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
88FP-82504-00-00 OIL PRESSURE SWITCH ASSYOIL PRESSURE SWITCH ASSY
-
98GC-85780-00-00 SENSOR, KNOCKSENSOR, KNOCK
-
108GC-81515-00-00 LEAD WIRE ASSYLEAD WIRE ASSY
-
111D7-81960-00-00 RECTIFIER AND REGULATOR ASSYRECTIFIER AND REGULATOR ASSY
-
1295602-06200-00 NUT-UNUT-U
-
1390387-06M45-00 COLLARCOLLAR
-
148GN-82590-21-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
155PS-82151-00-00 FUSE (40A)FUSE (40A)
-
165JJ-82151-10-00 FUSE (15A-BL)FUSE (15A-BL)
-
175JJ-82151-20-00 FUSE (20A-BL)FUSE (20A-BL)
-
185JJ-82151-00-00 FUSE (7.5A-BL)FUSE (7.5A-BL)
-
195JJ-82151-40-00 FUSE (4A-BL)FUSE (4A-BL)
-
205JJ-82151-50-00 FUSE (3A-BL)FUSE (3A-BL)
-
214WA-81980-00-00 DIODE ASSYDIODE ASSY
-
2290464-12045-00 BAND,SWITCH CORDBAND,SWITCH CORD
-
2390464-15195-00 CLAMPCLAMP
-
2490464-13073-00 CLAMPCLAMP
-
2590464-16001-00 CLAMPCLAMP
-
2690464-20181-00 CLAMPCLAMP
-
275DM-81950-00-00 RELAY ASSY (G8HN-1C4T-DJ-Y52)RELAY ASSY (G8HN-1C4T-DJ-Y52)
-
288FP-81950-01-00 RELAY ASSYRELAY ASSY
-
298FA-82510-00-00 MAIN SWITCH ASSYMAIN SWITCH ASSY
-
30526-82579-00-00 CAP, KEYCAP, KEY
-
318GK-83755-10-00 SENSOR, SPEEDSENSOR, SPEED
-
328GC-2198G-00-00 COVER 2COVER 2
-
335PS-82380-00-00 SENSOR, PRESSURESENSOR, PRESSURE
-
348GC-1441L-00-00 PANEL 1PANEL 1
-
3598502-06012-00 SCREW, PAN HEADSCREW, PAN HEAD
-
368GL-83383-00-00 BUZZERBUZZER
-
3790201-05043-00 WASHER, PLATEWASHER, PLATE
-
3895702-05500-00 NUT, FLANGENUT, FLANGE
-
3992012-05008-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
4090464-13077-00 CLAMPCLAMP
-
418GC-77152-00-00 PAD 2PAD 2
