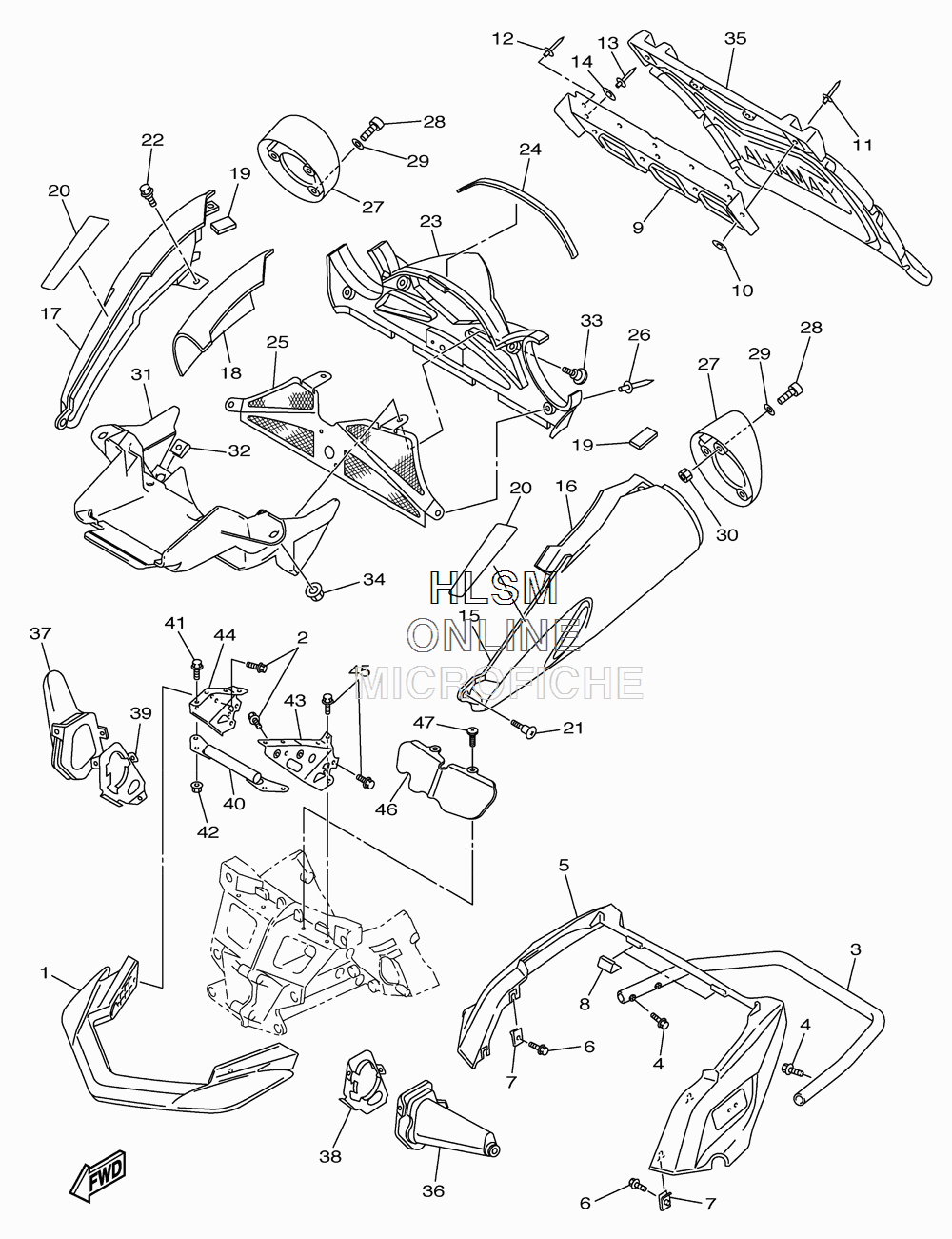

BUMPER - FRONT AND REAR для Yamaha RS VECTOR LTX GT - 2010 года выпуска
-
№АртикулНазвание
-
18FA-77511-01-00 BUMPER, FRONT 1BUMPER, FRONT 1
-
295812-08016-00 BOLT, FLANGEBOLT, FLANGE
-
38FP-77541-01-00 BUMPER, REAR 1BUMPER, REAR 1
-
495822-08020-00 BOLT, FLANGEBOLT, FLANGE
-
58FA-77542-00-00 BUMPER, REAR 2BUMPER, REAR 2
-
695802-06016-00 BOLT, FLANGEBOLT, FLANGE
-
790183-06053-00 NUT, SPRINGNUT, SPRING
-
88FA-7717H-00-00 TAPE 4TAPE 4
-
98GH-77596-01-00 STOPPER, FLAPSTOPPER, FLAP
-
1090201-04325-00 WASHER, PLATEWASHER, PLATE
-
1190267-47200-00 RIVET, BLIND (4.7X19.5 BLACK)RIVET, BLIND (4.7X19.5 BLACK)
-
1290267-48095-00 RIVET,BLIND (4.8X12.6 SILVER)RIVET,BLIND (4.8X12.6 SILVER)
-
1390267-48083-00 RIVET,BLIND (4.8X15.2 SILVER)RIVET,BLIND (4.8X15.2 SILVER)
-
1490201-05025-00 WASHER, PLATEWASHER, PLATE
-
158FP-77551-01-P0 PROTECTOR 1 FOR DRMKPROTECTOR 1 FOR DRMK
-
158FP-77551-01-P2 PROTECTOR 1 FOR BWC1PROTECTOR 1 FOR BWC1
-
158FP-77551-01-P4 PROTECTOR 1 FOR DPBMCPROTECTOR 1 FOR DPBMC
-
168FP-77261-00-00 LINING, SHROUD 1LINING, SHROUD 1
-
178FP-77552-01-P4 PROTECTOR 2 FOR DPBMCPROTECTOR 2 FOR DPBMC
-
178FP-77552-01-P2 PROTECTOR 2 FOR BWC1PROTECTOR 2 FOR BWC1
-
178FP-77552-01-P0 PROTECTOR 2 FOR DRMKPROTECTOR 2 FOR DRMK
-
188FP-77262-00-00 LINING, SHROUD 2LINING, SHROUD 2
-
198FP-77263-00-00 LINING, SHROUD 3LINING, SHROUD 3
-
208FR-77561-00-00 PROTECTOR, SIDE 1PROTECTOR, SIDE 1
-
2190154-06009-00 SCREW, BINDINGSCREW, BINDING
-
2290109-06220-00 BOLTBOLT
-
238FP-84516-01-00 COVER, TAILLIGHTCOVER, TAILLIGHT
-
248FP-77234-00-00 TRIM 8TRIM 8
-
258FP-77441-00-00 LOUVER 1LOUVER 1
-
2690267-47187-00 RIVET, BLIND (4.7X16.4 BLACK)RIVET, BLIND (4.7X16.4 BLACK)
-
278FP-77517-00-00 CAPCAP
-
2891314-06020-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2992990-06200-00 WASHER, PLAINWASHER, PLAIN
-
3095380-06600-00 NUT, HEXAGONNUT, HEXAGON
-
318FP-2117E-01-00 BRACKET, TAILLIGHTBRACKET, TAILLIGHT
-
3290183-06053-00 NUT, SPRINGNUT, SPRING
-
3390109-06220-00 BOLTBOLT
-
3495602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
358GT-K7595-00-00 FLAPFLAP
-
368FU-2198F-01-00 COVER 1COVER 1
-
378FU-2198J-01-00 COVER 3COVER 3
-
388FU-2195E-01-00 PLATE, STRG BRACKET 1PLATE, STRG BRACKET 1
-
398FU-2195F-01-00 PLATE, STRG BRACKET 2PLATE, STRG BRACKET 2
-
408FP-21979-00-00 BRKT., FR. HOODBRKT., FR. HOOD
-
4195822-06014-00 BOLT, FLANGEBOLT, FLANGE
-
4295702-06500-00 NUT, FLANGENUT, FLANGE
-
438FA-21949-00-00 BRACKET, FRONTBRACKET, FRONT
-
448FA-21959-00-00 BRACKET, FRONT BUMPERBRACKET, FRONT BUMPER
-
4595822-08016-00 BOLT, FLANGEBOLT, FLANGE
-
468FP-22865-00-00 COVER, FRONTCOVER, FRONT
-
4790109-06261-00 BOLTBOLT
