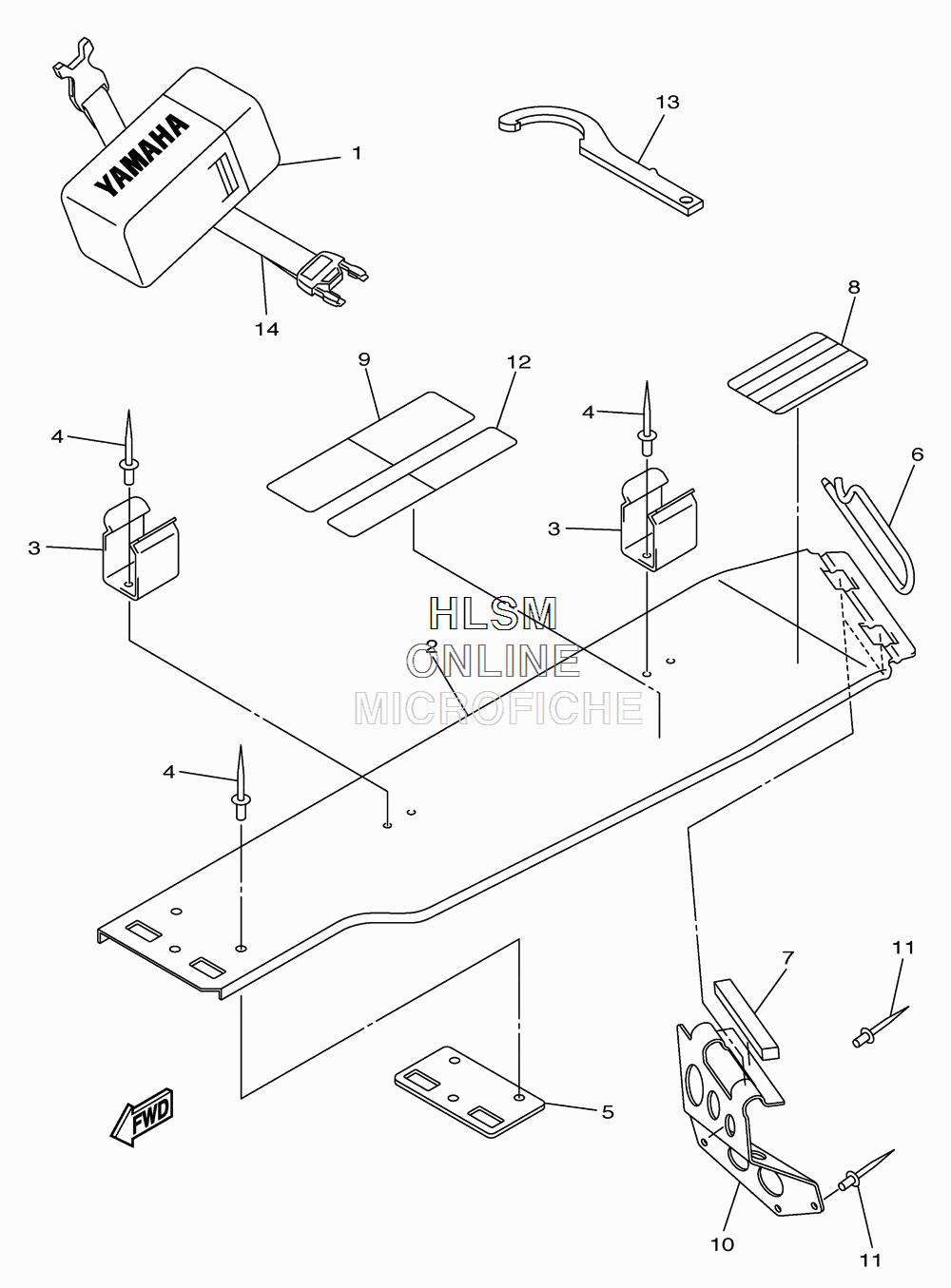

BELT GUARD W/ TOOL BOX для Yamaha RS VECTOR GT - 2011 года выпуска
-
№АртикулНазвание
-
18JA-28100-00-00 TOOL KITTOOL KIT
-
28FP-77311-00-00 GUARD, DRIVEGUARD, DRIVE
-
38CR-77338-00-00 STAY, BELTSTAY, BELT
-
490267-47195-00 RIVET, BLIND (4.7X16.4 YELLOW)RIVET, BLIND (4.7X16.4 YELLOW)
-
58FP-77373-00-00 PROTECTORPROTECTOR
-
68CR-77384-01-00 PINPIN
-
78CR-77319-00-00 DAMPER 1DAMPER 1
-
88BD-77762-00-00 LABEL, WARNING 2LABEL, WARNING 2
-
98ES-47578-00-00 LABEL 1LABEL 1
-
108FA-21973-00-00 HOOKHOOK
-
1190267-47195-00 RIVET, BLIND (4.7X16.4 YELLOW)RIVET, BLIND (4.7X16.4 YELLOW)
-
128HF-1417E-00-00 LABEL, CAUTIONLABEL, CAUTION
-
132NK-28135-00-00 SPANNER, SPECIALSPANNER, SPECIAL
-
148JA-2811G-00-00 BANDBAND
