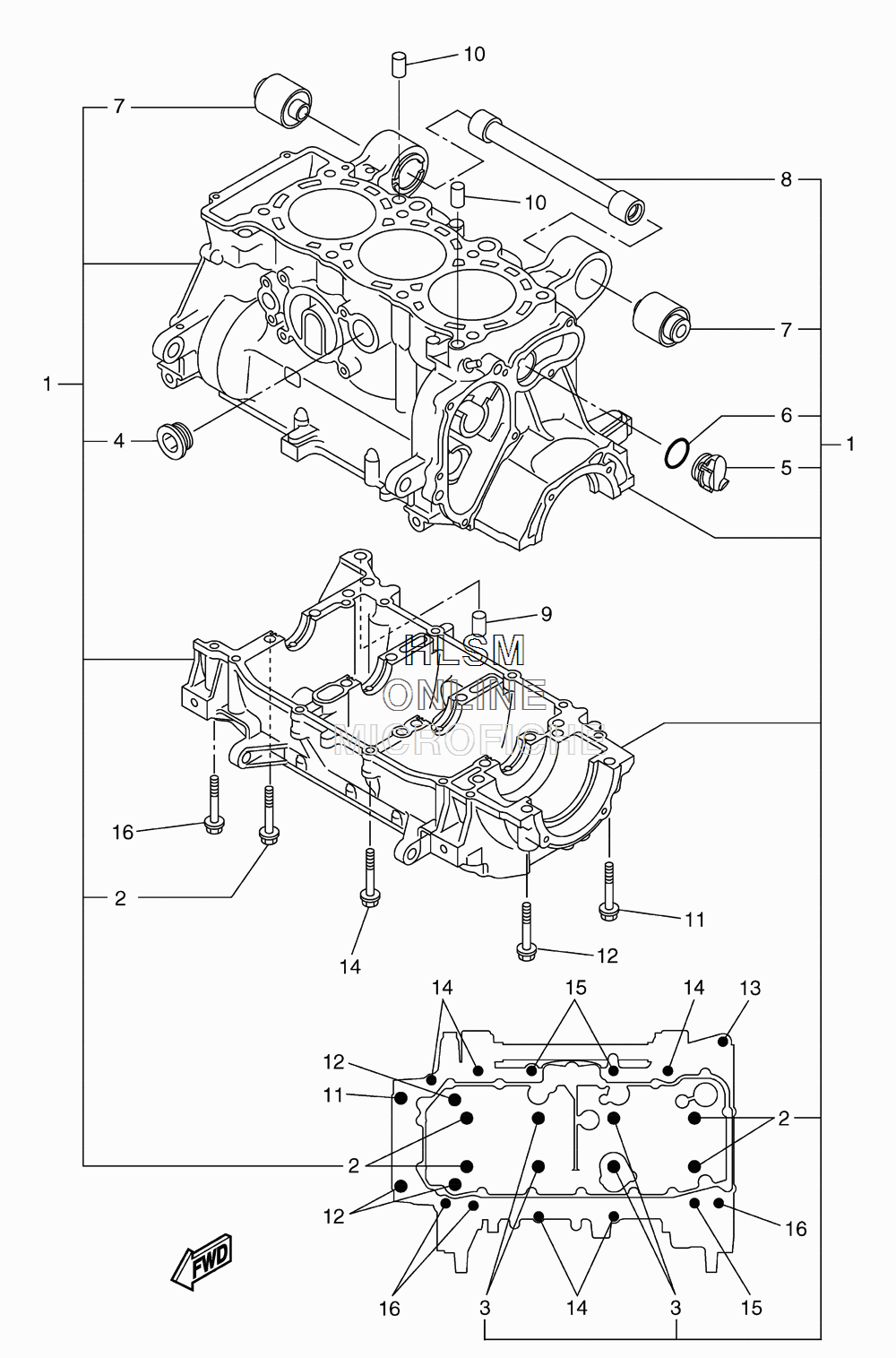

CRANKCASE ASSY для Yamaha RS VENTURE GT - 2011 года выпуска
-
№АртикулНазвание
-
18GL-W1510-03-00 CRANKCASE ASSYCRANKCASE ASSY
-
290119-09004-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
390119-09011-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
490340-27001-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
58ES-15167-00-00 PLUG, BLIND 1PLUG, BLIND 1
-
693210-24709-00 O-RINGO-RING
-
78FA-2139X-00-00 DAMPERDAMPER
-
88ES-21459-00-00 SPACERSPACER
-
999530-10014-00 PIN, DOWELPIN, DOWEL
-
1099530-10114-00 PIN, DOWELPIN, DOWEL
-
1195812-08055-00 BOLT, FLANGEBOLT, FLANGE
-
1295812-08070-00 BOLT, FLANGEBOLT, FLANGE
-
1390109-06185-00 BOLTBOLT
-
1495812-06055-00 BOLT, FLANGEBOLT, FLANGE
-
1595812-06080-00 BOLT, FLANGEBOLT, FLANGE
-
1690105-06123-00 BOLT, FLANGEBOLT, FLANGE
