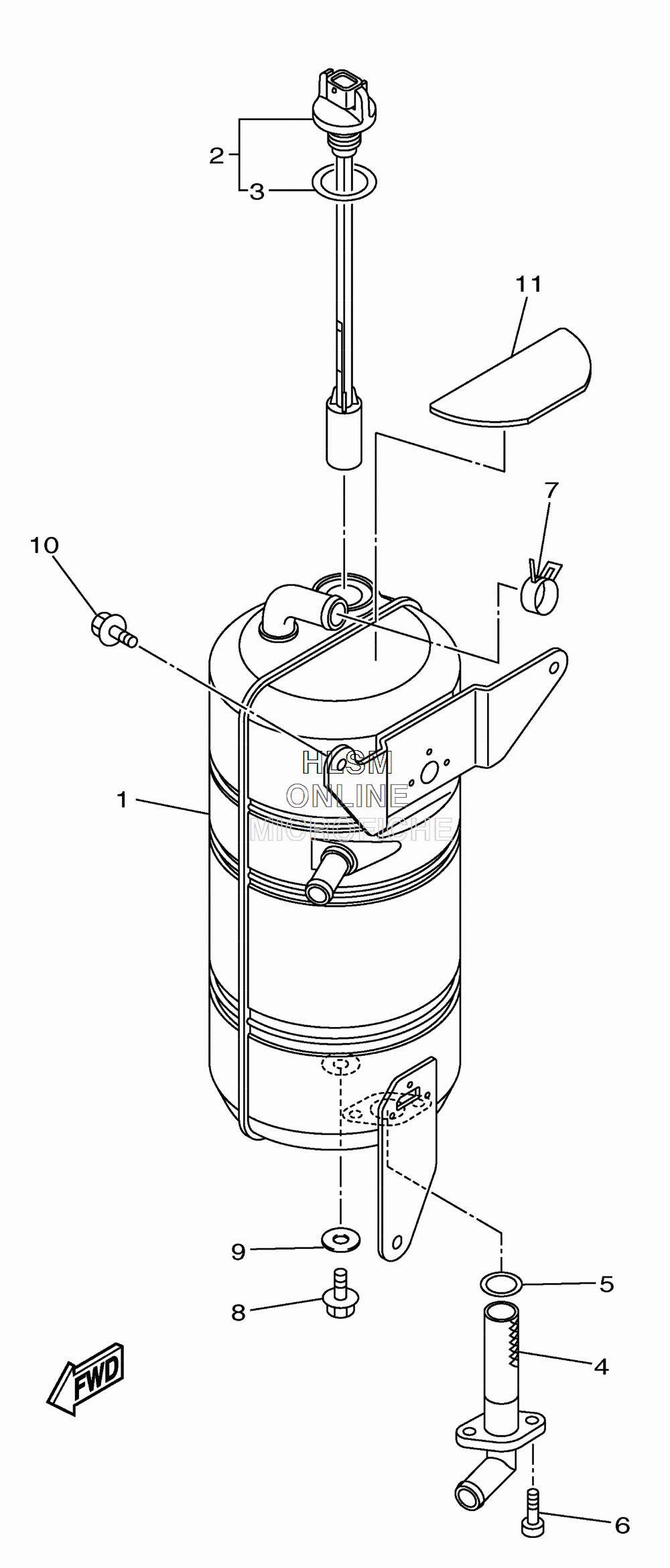

OIL TANK ASSY для Yamaha VENTURE LITE - 2011 года выпуска
-
№АртикулНазвание
-
18GC-21751-00-00 TANK, OILTANK, OIL
-
28GC-85720-00-00 OIL LEVEL GAUGE ASSYOIL LEVEL GAUGE ASSY
-
38FP-85075-00-00 O-RINGO-RING
-
48GC-13406-00-00 OIL PIPE COMP. 2OIL PIPE COMP. 2
-
593210-19026-00 O-RINGO-RING
-
691312-06016-00 BOLTBOLT
-
790467-22097-00 CLIPCLIP
-
895802-08012-00 BOLT, FLANGEBOLT, FLANGE
-
990430-08204-00 GASKETGASKET
-
1095812-06016-00 BOLT, FLANGEBOLT, FLANGE
-
118GC-21746-00-00 DAMPERDAMPER
