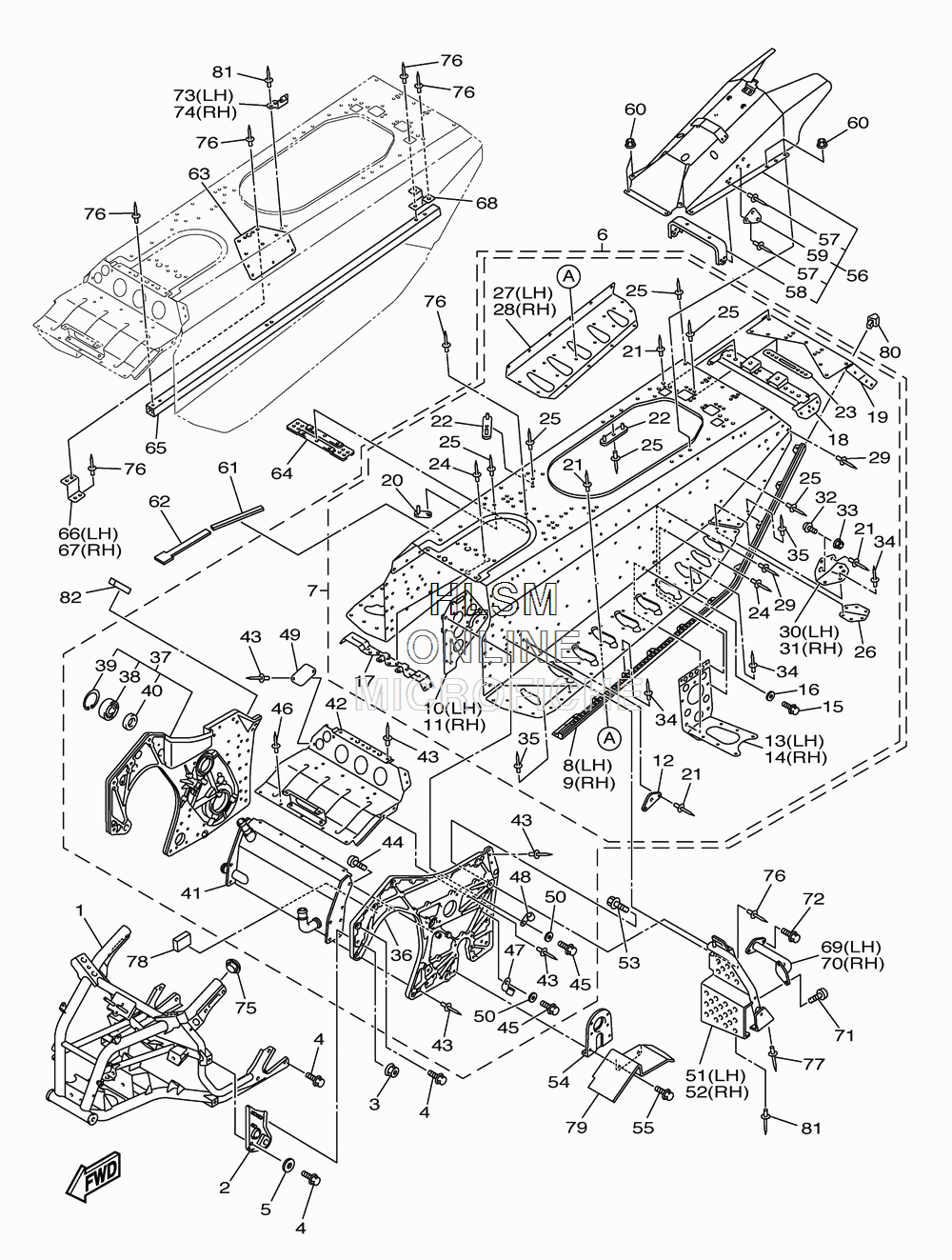

TUNNEL ASSEMBLY W/ LOWER NOSEPAN для Yamaha FX NYTRO RTX - 2012 года выпуска
-
№АртикулНазвание
-
18GL-21940-02-00 FRONT FRAME COMP.FRONT FRAME COMP.
-
28GL-2194E-00-00 BRACKET, ENGINEBRACKET, ENGINE
-
390185-08054-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
495827-08016-00 BOLT, FLANGEBOLT, FLANGE
-
590201-086A3-00 WASHER, PLATEWASHER, PLATE
-
68HK-21950-01-00 REAR FRAME COMP.REAR FRAME COMP.
-
78HK-21950-09-00 ...REAR FRAME COMP....REAR FRAME COMP.
-
88HK-21926-00-00 ......REINFORCEMENT, FOOTREST 1......REINFORCEMENT, FOOTREST 1
-
98HK-21936-00-00 ......REINFORCEMENT, FOOTREST 2......REINFORCEMENT, FOOTREST 2
-
108GL-21943-00-00 ......BRACKET, MAIN TRACK 1 (LEFT HAND)......BRACKET, MAIN TRACK 1 (LEFT HAND)
-
118GL-21953-00-00 ......BRACKET, MAIN TRACK 2 (RIGHT HAND)......BRACKET, MAIN TRACK 2 (RIGHT HAND)
-
128FU-21919-00-00 ......BRACKET, MAIN TRACK 3......BRACKET, MAIN TRACK 3
-
138HK-21944-00-00 ......BRACKET, REAR TRACK SUSPENSION (LEFT HAND)......BRACKET, REAR TRACK SUSPENSION (LEFT HAND)
-
148HK-21954-00-00 ......BRACKET, REAR TRACK SUSPENSION (RIGHT HAND)......BRACKET, REAR TRACK SUSPENSION (RIGHT HAND)
-
1595812-10020-00 ......BOLT, FLANGE......BOLT, FLANGE
-
1690201-10035-00 ......WASHER, PLATE......WASHER, PLATE
-
178GL-2194H-00-00 ......PROTECTOR, MUFFLER......PROTECTOR, MUFFLER
-
188GL-2197N-00-00 ......BRACKET 7......BRACKET 7
-
198GL-21923-00-00 ......REINEFORCEMENT, FRAME REAR......REINEFORCEMENT, FRAME REAR
-
208CR-2194N-00-00 ......BRACKET, FUEL TANK 1......BRACKET, FUEL TANK 1
-
2190267-47195-00 ......RIVET, BLIND (4.7X16.4 YELLOW)......RIVET, BLIND (4.7X16.4 YELLOW)
-
228GL-22512-00-00 ......BRACKET 8......BRACKET 8
-
238GL-21295-00-00 ......NUT......NUT
-
2490267-48010-00 ......RIVET, BLIND (4.8X12 YELLOW)......RIVET, BLIND (4.8X12 YELLOW)
-
2590267-48023-00 ......RIVET, BLIND (4.8X12.1 YELLOW)......RIVET, BLIND (4.8X12.1 YELLOW)
-
268HK-21961-00-00 ......PATCH 1......PATCH 1
-
278HK-21963-00-00 ......PATCH 3 (LEFT HAND)......PATCH 3 (LEFT HAND)
-
288HK-21964-00-00 ......PATCH 4 (RIGHT HAND)......PATCH 4 (RIGHT HAND)
-
2990267-48016-00 ......RIVET, BLIND (4.8X16.4 YELLOW)......RIVET, BLIND (4.8X16.4 YELLOW)
-
308HK-21965-00-00 ......PATCH 5 (LEFT HAND)......PATCH 5 (LEFT HAND)
-
318HK-21966-00-00 ......PATCH 6 (RIGHT HAND)......PATCH 6 (RIGHT HAND)
-
3292012-10016-00 ......BOLT, BUTTON HEAD......BOLT, BUTTON HEAD
-
3390176-10075-00 ......NUT, CROWN......NUT, CROWN
-
3490267-48176-00 ......RIVET, BLIND (4.8X17 YELLOW)......RIVET, BLIND (4.8X17 YELLOW)
-
3590267-48177-00 ......RIVET, BLIND (4.8X14 YELLOW)......RIVET, BLIND (4.8X14 YELLOW)
-
368GL-21925-00-00 ......REINF, HOUSING 1......REINF, HOUSING 1
-
378GL-21930-00-00 ...HOUSING, REINF SUB-ASSY (RIGHT)...HOUSING, REINF SUB-ASSY (RIGHT)
-
3893306-20601-00 ......BEARING......BEARING
-
3999009-62500-00 ......CIRCLIP......CIRCLIP
-
4093102-30012-00 ......OIL SEAL......OIL SEAL
-
418GL-12440-00-00 ...HEAT EXCHANGER ASSY...HEAT EXCHANGER ASSY
-
428GL-21915-00-00 ...PANEL, SUB FRAME 4...PANEL, SUB FRAME 4
-
4390267-47195-00 ...RIVET, BLIND (4.7X16.4 YELLOW)...RIVET, BLIND (4.7X16.4 YELLOW)
-
4492012-08016-00 ...BOLT, BUTTON HEAD...BOLT, BUTTON HEAD
-
4597012-08016-00 ...BOLT...BOLT
-
4690267-48010-00 ...RIVET, BLIND (4.8X12 YELLOW)...RIVET, BLIND (4.8X12 YELLOW)
-
4790462-08061-00 ...CLAMP...CLAMP
-
4890462-08064-00 ...CLAMP...CLAMP
-
498GL-2131D-00-00 ...PLATE, COVER...PLATE, COVER
-
5090201-08512-00 ...WASHER, PLATE...WASHER, PLATE
-
518GL-21960-00-00 FOOTREST COMP. 1 (LEFT HAND)FOOTREST COMP. 1 (LEFT HAND)
-
528GL-21970-01-00 FOOTREST COMP. 2 (RIGHT HAND)FOOTREST COMP. 2 (RIGHT HAND)
-
5395827-10030-00 BOLT, FLANGEBOLT, FLANGE
-
548GL-21920-00-00 HOUSING, REINF SUB-ASSY (LEFT)HOUSING, REINF SUB-ASSY (LEFT)
-
5595812-08020-00 BOLT, FLANGEBOLT, FLANGE
-
568GL-21916-00-00 PANEL, SUB FRAME 5PANEL, SUB FRAME 5
-
5790267-47195-00 ...RIVET, BLIND (4.7X16.4 YELLOW)...RIVET, BLIND (4.7X16.4 YELLOW)
-
588GL-2194L-00-00 ...STAY, MUFFER...STAY, MUFFER
-
598GL-21946-00-00 ...BRACKET, SEAT FITTING...BRACKET, SEAT FITTING
-
6090176-06016-00 NUT, CAPNUT, CAP
-
618GL-22151-00-00 SEAL, GUARDSEAL, GUARD
-
628GL-22152-00-00 SEAL, GUARDSEAL, GUARD
-
638GL-21967-00-00 PATCH 7PATCH 7
-
648GL-21988-00-00 PATCH 8PATCH 8
-
658GL-21978-00-00 PROTECTOR, FRAMEPROTECTOR, FRAME
-
668GL-2196M-00-00 BRACKET 5 (LEFT HAND)BRACKET 5 (LEFT HAND)
-
678GL-2197M-00-00 BRACKET 6 (RIGHT HAND)BRACKET 6 (RIGHT HAND)
-
688GL-21443-00-00 BRACKET, PROTECTOR REARBRACKET, PROTECTOR REAR
-
698GL-27471-00-00 BAR, FOOTREST 1 (LEFT HAND)BAR, FOOTREST 1 (LEFT HAND)
-
708GL-27472-00-00 BAR, FOOTREST 2 (RIGHT HAND)BAR, FOOTREST 2 (RIGHT HAND)
-
7192012-06014-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
7295812-06012-00 BOLT, FLANGEBOLT, FLANGE
-
738GL-21151-00-00 BRACKET, REAR FENDER 1 (LEFT HAND)BRACKET, REAR FENDER 1 (LEFT HAND)
-
748GL-21152-00-00 BRACKET, REAR FENDER 2 (RIGHTHAND)BRACKET, REAR FENDER 2 (RIGHTHAND)
-
75180-22117-00-00 CAPCAP
-
7690267-47195-00 RIVET, BLIND (4.7X16.4 YELLOW)RIVET, BLIND (4.7X16.4 YELLOW)
-
7790267-48016-00 RIVET, BLIND (4.8X16.4 YELLOW)RIVET, BLIND (4.8X16.4 YELLOW)
-
788GL-21852-00-00 DAMPERDAMPER
-
798GL-2197B-00-00 PROTECTOR, FRAMEPROTECTOR, FRAME
-
808FS-2312G-00-00 PLUGPLUG
-
8190267-48023-00 RIVET, BLIND (4.8X12.1 YELLOW)RIVET, BLIND (4.8X12.1 YELLOW)
-
8290520-05012-00 DAMPER, PLATEDAMPER, PLATE
