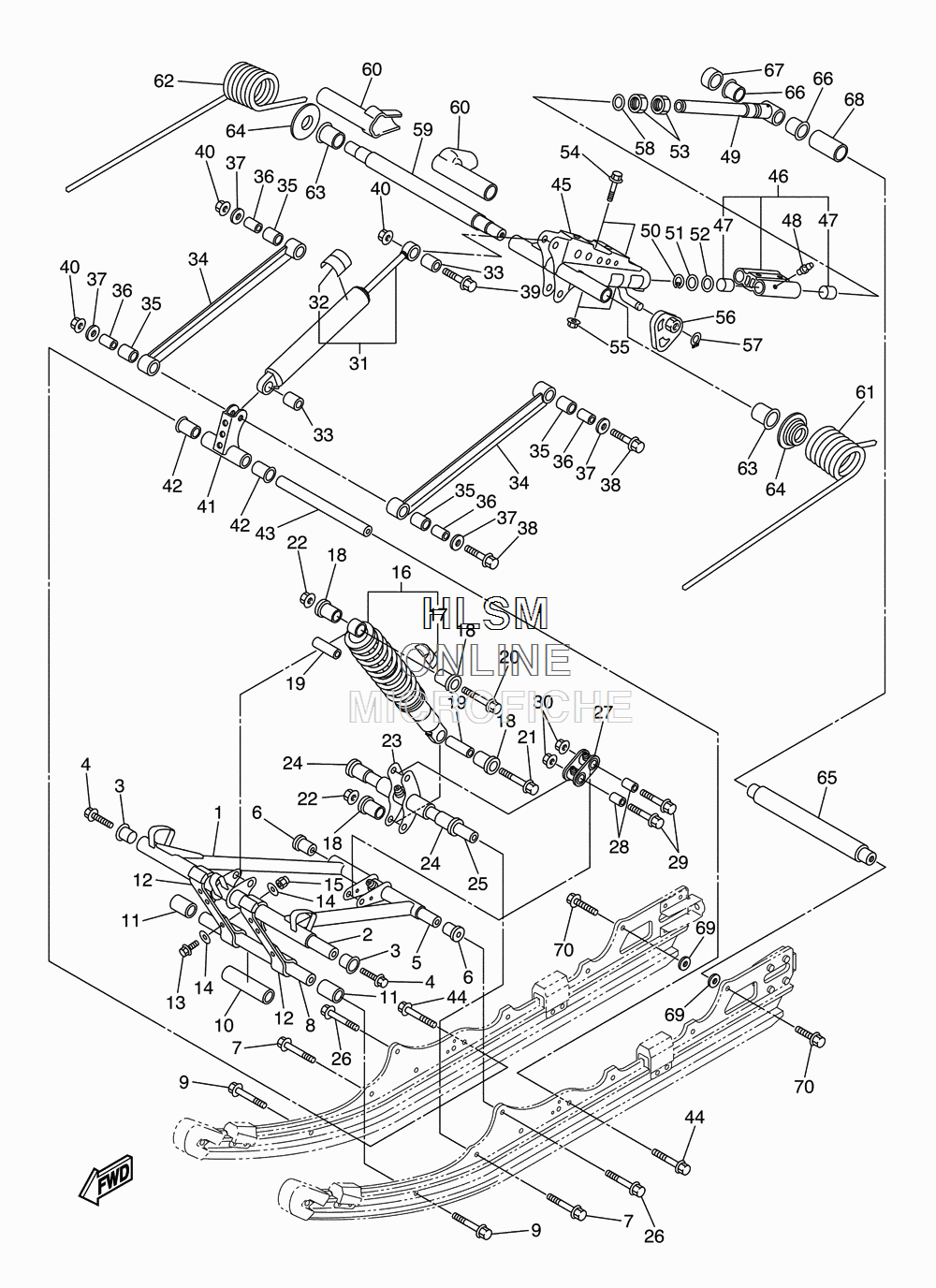

SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK 2 для Yamaha RS VENTURE - 2012 года выпуска
-
№АртикулНазвание
-
18ET-47331-01-00 ARM, PIVOT 1ARM, PIVOT 1
-
28ES-47465-10-00 SHAFT 1SHAFT 1
-
390386-22001-00 BUSHBUSH
-
490105-103A1-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
58ES-47486-00-00 SHAFT 4SHAFT 4
-
690387-10022-00 COLLARCOLLAR
-
790105-10209-00 BOLT, FLANGEBOLT, FLANGE
-
88ES-47485-00-00 SHAFT 3SHAFT 3
-
990105-10209-00 BOLT, FLANGEBOLT, FLANGE
-
1090387-19002-00 COLLARCOLLAR
-
1190387-19001-00 COLLARCOLLAR
-
128ET-47495-00-00 STOPPER 1STOPPER 1
-
1397002-06025-00 BOLTBOLT
-
1490201-06081-00 WASHER, PLATEWASHER, PLATE
-
1595702-06300-00 NUT, NYLONNUT, NYLON
-
168GW-47481-40-00 SHOCK ABSORBER 2SHOCK ABSORBER 2
-
174AA-22259-60-00 ...LABEL, WARNING...LABEL, WARNING
-
1890381-14101-00 BUSH, SOLIDBUSH, SOLID
-
1990387-105G5-00 COLLARCOLLAR
-
2095812-10045-00 BOLT, FLANGEBOLT, FLANGE
-
2190101-10738-00 BOLTBOLT
-
2295602-10200-00 NUT, SELF LOCKINGNUT, SELF LOCKING
-
238ES-47349-01-00 BRACKET, ARM PIVOTBRACKET, ARM PIVOT
-
2490386-20001-00 BUSHBUSH
-
258ES-47487-00-00 SHAFT 5SHAFT 5
-
2690105-10209-00 BOLT, FLANGEBOLT, FLANGE
-
278FK-47416-01-00 BRACKET 2BRACKET 2
-
2890387-10024-00 COLLARCOLLAR
-
2995812-10045-00 BOLT, FLANGEBOLT, FLANGE
-
3095602-10200-00 NUT, SELF LOCKINGNUT, SELF LOCKING
-
318ET-47480-40-00 SHOCK ABSORBERSHOCK ABSORBER
-
324AA-22259-60-00 ...LABEL, WARNING...LABEL, WARNING
-
3390387-10023-00 COLLARCOLLAR
-
348FK-47494-00-00 ROD, RELAYROD, RELAY
-
3590386-16001-00 BUSHBUSH
-
3690387-101A1-00 COLLARCOLLAR
-
3790201-10043-00 WASHER, PLATEWASHER, PLATE
-
3895812-10090-00 BOLT, FLANGEBOLT, FLANGE
-
3995812-10040-00 BOLT, FLANGEBOLT, FLANGE
-
4095602-10200-00 NUT, SELF LOCKINGNUT, SELF LOCKING
-
418FK-47349-10-00 BRACKET, ARM PIVOTBRACKET, ARM PIVOT
-
4290386-20001-00 BUSHBUSH
-
438ES-47487-00-00 SHAFT 5SHAFT 5
-
4490105-10209-00 BOLT, FLANGEBOLT, FLANGE
-
458ET-47332-01-00 ARM, PIVOT 2ARM, PIVOT 2
-
468ES-4745D-00-00 STOPPER, CONT. 1STOPPER, CONT. 1
-
4790380-24001-00 ...BUSH, SOLID...BUSH, SOLID
-
4893700-06004-00 NIPPLE, GREASENIPPLE, GREASE
-
498ET-4745A-00-00 ROD, CONTROL 1ROD, CONTROL 1
-
5099009-24400-00 CIRCLIP, S-TYPECIRCLIP, S-TYPE
-
5190201-24015-00 WASHER, PLATEWASHER, PLATE
-
5290202-25001-00 WASHER, PLATEWASHER, PLATE
-
538ES-48142-00-00 STOPPER, ADJUSTING NUTSTOPPER, ADJUSTING NUT
-
5495812-10055-00 BOLT, FLANGEBOLT, FLANGE
-
5595602-10200-00 NUT, SELF LOCKINGNUT, SELF LOCKING
-
568ES-47447-00-00 HOOK 2HOOK 2
-
5799009-14400-00 CIRCLIPCIRCLIP
-
5890202-25002-00 WASHER, PLATEWASHER, PLATE
-
598FM-47475-01-00 SHAFT 2SHAFT 2
-
608ES-47445-00-00 PROTECTORPROTECTOR
-
618ET-47473-00-00 SPRING, REAR 1 (K=2500NMM/DEG)SPRING, REAR 1 (K=2500NMM/DEG)
-
628ET-47474-00-00 SPRING, REAR 2 (K=2500NMM/DEG)SPRING, REAR 2 (K=2500NMM/DEG)
-
6390381-28108-00 BUSH, SOLIDBUSH, SOLID
-
648ES-47467-00-00 PLATE, GUIDEPLATE, GUIDE
-
658ES-47337-00-00 SHAFT, PIVOTSHAFT, PIVOT
-
6690386-25001-00 BUSHBUSH
-
6790387-26002-00 COLLARCOLLAR
-
6890387-26003-00 COLLARCOLLAR
-
6990201-10028-00 WASHER, PLATEWASHER, PLATE
-
7095812-10030-00 BOLT, FLANGEBOLT, FLANGE
