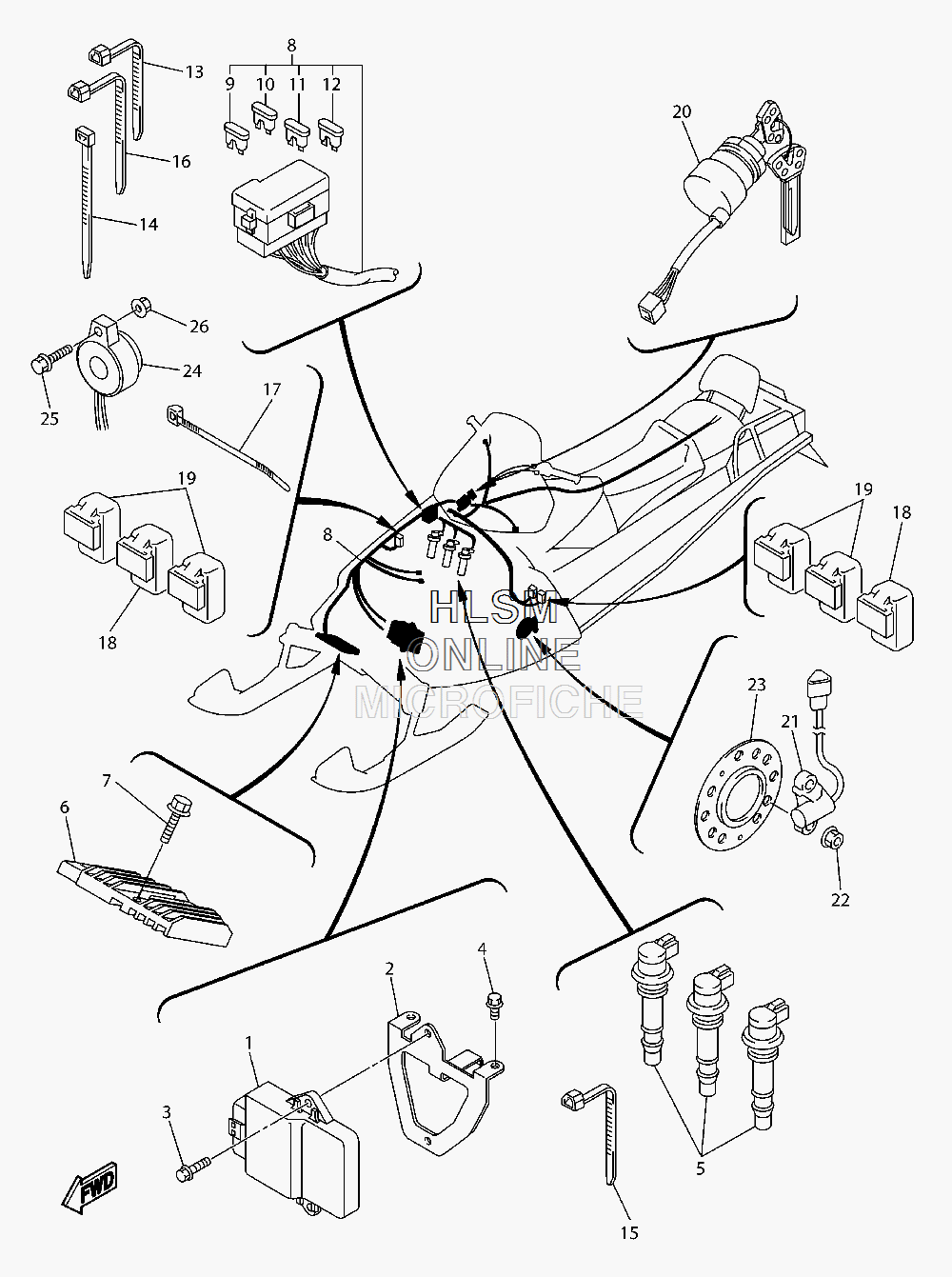

ELECTRICAL - COIL, CDI, RECTIFIER, RELAYS AND SWITCHES для Yamaha VK PRO - 2012 года выпуска
-
№АртикулНазвание
-
18FN-82305-00-00 IGNITOR UNIT ASSYIGNITOR UNIT ASSY
-
28ES-85991-00-00 BRACKET, UNITBRACKET, UNIT
-
395822-06016-00 BOLT, FLANGEBOLT, FLANGE
-
495822-06010-00 BOLT, FLANGEBOLT, FLANGE
-
58ES-82310-00-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
65JW-81960-00-00 RECTIFIER AND REGULATOR ASSYRECTIFIER AND REGULATOR ASSY
-
790105-06185-00 BOLT, FLANGEBOLT, FLANGE
-
88GS-82590-10-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
95JJ-82151-20-00 ...FUSE (20A-BL)...FUSE (20A-BL)
-
105JJ-82151-30-00 ...FUSE (10A-BL)...FUSE (10A-BL)
-
115JJ-82151-10-00 ...FUSE (15A-BL)...FUSE (15A-BL)
-
125JJ-82151-50-00 ...FUSE (3A-BL)...FUSE (3A-BL)
-
1390464-15195-00 CLAMPCLAMP
-
1490464-13073-00 CLAMPCLAMP
-
1590464-12045-00 CLAMPCLAMP
-
1690464-13077-00 CLAMPCLAMP
-
1790464-35132-00 CLAMPCLAMP
-
185DM-81950-00-00 RELAY ASSY (G8HN-1C4T-DJ-Y52)RELAY ASSY (G8HN-1C4T-DJ-Y52)
-
198DM-81950-11-00 RELAY ASSYRELAY ASSY
-
208FJ-82510-00-00 MAIN SWITCH ASSYMAIN SWITCH ASSY
-
218GK-83755-11-00 SENSOR, SPEEDSENSOR, SPEED
-
2295702-08300-00 NUT, NYLONNUT, NYLON
-
238EK-47551-00-00 HOUSING, FRONT AXLEHOUSING, FRONT AXLE
-
248GL-83383-00-00 BUZZERBUZZER
-
2590159-05035-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
2695702-05500-00 NUT, FLANGENUT, FLANGE
-
18FN-82305-00-00 IGNITOR UNIT ASSYIGNITOR UNIT ASSY
-
28ES-85991-00-00 BRACKET, UNITBRACKET, UNIT
-
395822-06016-00 BOLT, FLANGEBOLT, FLANGE
-
495822-06010-00 BOLT, FLANGEBOLT, FLANGE
-
58ES-82310-00-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
65JW-81960-00-00 RECTIFIER AND REGULATOR ASSYRECTIFIER AND REGULATOR ASSY
-
790105-06185-00 BOLT, FLANGEBOLT, FLANGE
-
88GS-82590-10-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
95JJ-82151-20-00 ...FUSE (20A-BL)...FUSE (20A-BL)
-
105JJ-82151-30-00 ...FUSE (10A-BL)...FUSE (10A-BL)
-
115JJ-82151-10-00 ...FUSE (15A-BL)...FUSE (15A-BL)
-
125JJ-82151-50-00 ...FUSE (3A-BL)...FUSE (3A-BL)
-
1390464-15195-00 CLAMPCLAMP
-
1490464-13073-00 CLAMPCLAMP
-
1590464-12045-00 CLAMPCLAMP
-
1690464-13077-00 CLAMPCLAMP
-
1790464-35132-00 CLAMPCLAMP
-
185DM-81950-00-00 RELAY ASSY (G8HN-1C4T-DJ-Y52)RELAY ASSY (G8HN-1C4T-DJ-Y52)
-
198DM-81950-11-00 RELAY ASSYRELAY ASSY
-
208FJ-82510-00-00 MAIN SWITCH ASSYMAIN SWITCH ASSY
-
218GK-83755-11-00 SENSOR, SPEEDSENSOR, SPEED
-
2295702-08300-00 NUT, NYLONNUT, NYLON
-
238EK-47551-00-00 HOUSING, FRONT AXLEHOUSING, FRONT AXLE
-
248GL-83383-00-00 BUZZERBUZZER
-
2590159-05035-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
2695702-05500-00 NUT, FLANGENUT, FLANGE
