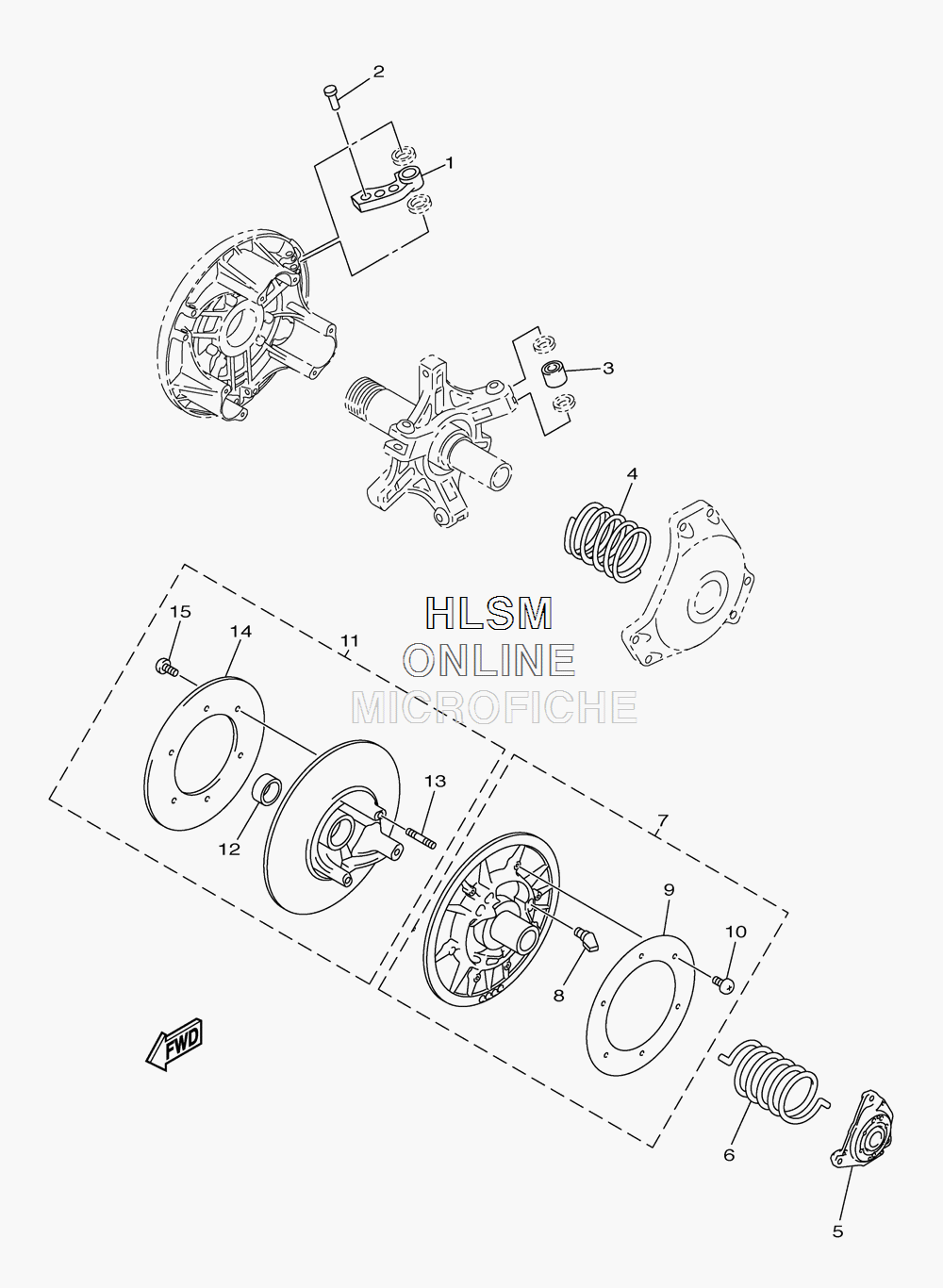

CLUTCH - WEIGHTS AND SPRINGS (OPTION) для Yamaha APEX - 2013 года выпуска

№

Артикул

Название
1

8FA-17605-10-00 WEIGHT COMP

WEIGHT COMP

9 920 ₽
1

8ES-17605-00-00 WEIGHT COMP

WEIGHT COMP

6 770 ₽
1

8FP-17605-00-00 WEIGHT COMP

WEIGHT COMP

8 340 ₽
1

8FN-17605-00-00 WEIGHT COMP

WEIGHT COMP

5 980 ₽
1

8HG-17605-00-00 WEIGHT COMP

WEIGHT COMP

6 920 ₽
1

8GC-17605-00-00 WEIGHT COMP

WEIGHT COMP

8 340 ₽
1

8DN-17605-30-00 WEIGHT COMP

WEIGHT COMP

9 130 ₽
1

8GL-17605-00-00 WEIGHT COMP

WEIGHT COMP

7 870 ₽
1

8HF-17605-00-00 WEIGHT COMP

WEIGHT COMP

6 450 ₽
1

8FS-17605-00-00 WEIGHT COMP

WEIGHT COMP

28 030 ₽
2

90261-06019-00 RIVET, COUNTERSUNK (ST13.3MM)

RIVET, COUNTERSUNK (ST13.3MM)

180 ₽
2

90261-06015-00 RIVET, COUNTERSUNK (ST10.3MM)

RIVET, COUNTERSUNK (ST10.3MM)

320 ₽
2

90266-06001-00 RIVET (AL13.3)

RIVET (AL13.3)

400 ₽
2

90266-06002-00 RIVET (ST13.3)

RIVET (ST13.3)

540 ₽
2

90269-06006-00 RIVET (ST17.2MM)

RIVET (ST17.2MM)

290 ₽
2

90261-06034-00 RIVET, COUNTERSUNK (ST13.9MM)

RIVET, COUNTERSUNK (ST13.9MM)

250 ₽
2

90261-06028-00 RIVET, COUNTERSUNK (AL10.3MM)

RIVET, COUNTERSUNK (AL10.3MM)

160 ₽
2

90261-06033-00 RIVET, COUNTERSUNK (ST17.2MM)

RIVET, COUNTERSUNK (ST17.2MM)

290 ₽
3

8FG-17624-00-00 ROLLER, COMP

ROLLER, COMP

4 250 ₽
3

8FG-17624-20-00 .ROLLER, COMP

.ROLLER, COMP

5 660 ₽
3

8FG-17624-30-00 ROLLER, COMP

ROLLER, COMP

9 130 ₽
3

8FG-17624-10-00 ROLLER, COMP

ROLLER, COMP

7 550 ₽
3

8FG-17624-40-00 ROLLER, COMP

ROLLER, COMP

5 660 ₽
4

90501-551L3-00 SPRING, COMPRESSION (BL-P-BL)

SPRING, COMPRESSION (BL-P-BL)

3 770 ₽
4

90501-551L9-00 SPRING, COMPRESSION (BL-SL-BL)

SPRING, COMPRESSION (BL-SL-BL)

2 990 ₽
4

90501-552L5-00 SPRING, COMPRESSION (BL-GR-BL)

SPRING, COMPRESSION (BL-GR-BL)

3 770 ₽
4

90501-581L5-00 SPRING, COMPRESSION (Y-P-Y)

SPRING, COMPRESSION (Y-P-Y)

3 300 ₽
4

90501-581L6-00 SPRING, COMPRESSION (GR-P-GR)

SPRING, COMPRESSION (GR-P-GR)

3 300 ₽
4

90501-582L1-00 SPRING, COMPRESSION (Y-SL-Y)

SPRING, COMPRESSION (Y-SL-Y)

3 300 ₽
4

90501-582L2-00 SPRING, COMPRESSION (GR-SL-GR)

SPRING, COMPRESSION (GR-SL-GR)

3 300 ₽
4

90501-582L6-00 SPRING, COMPRESSION (WH-GR-WH)

SPRING, COMPRESSION (WH-GR-WH)

3 770 ₽
4

90501-582L7-00 SPRING, COMPRESSION (Y-GR-Y)

SPRING, COMPRESSION (Y-GR-Y)

3 300 ₽
4

90501-583L0-00 SPRING, COMPRESSION (BL-WH-BL)

SPRING, COMPRESSION (BL-WH-BL)

4 250 ₽
4

90501-583L1-00 SPRING, COMPRESSION (WH-WH-WH)

SPRING, COMPRESSION (WH-WH-WH)

4 250 ₽
4

90501-583L4-00 SPRING, COMPRESSION (WH-SL-WH)

SPRING, COMPRESSION (WH-SL-WH)

5 030 ₽
4

90501-583L5-00 SPRING, COMPRESSION (WH-P-WH)

SPRING, COMPRESSION (WH-P-WH)

4 250 ₽
4

90501-601L7-00 SPRING, COMPRESSION (P-P-P)

SPRING, COMPRESSION (P-P-P)

4 250 ₽
4

90501-601L8-00 SPRING, COMPRESSION (OR-P-OR)

SPRING, COMPRESSION (OR-P-OR)

4 250 ₽
4

90501-602L3-00 SPRING, COMPRESSION (P-SL-P)

SPRING, COMPRESSION (P-SL-P)

4 250 ₽
4

90501-602L8-00 SPRING, COMPRESSION (GR-GR-GR)

SPRING, COMPRESSION (GR-GR-GR)

4 250 ₽
4

90501-602L9-00 SPRING, COMPRESSION (P-GR-P)

SPRING, COMPRESSION (P-GR-P)

4 250 ₽
4

90501-603L2-00 SPRING, COMPRESSION (Y-WH-Y)

SPRING, COMPRESSION (Y-WH-Y)

4 250 ₽
4

90501-603L3-00 SPRING, COMPRESSION (GR-WH-GR)

SPRING, COMPRESSION (GR-WH-GR)

3 620 ₽
4

90501-624L8-00 SPRING, COMPRESSION (OR-SL-OR)

SPRING, COMPRESSION (OR-SL-OR)

4 400 ₽
4

90501-550A2-00 SPRING, COMPRESSION (BL-BL-BL)

SPRING, COMPRESSION (BL-BL-BL)

3 300 ₽
4

90501-580A1-00 SPRING, COMPRESSION (Y-BL-Y)

SPRING, COMPRESSION (Y-BL-Y)

3 770 ₽
4

90501-600A1-00 SPRING, COMPRESSION (P-BL-P)

SPRING, COMPRESSION (P-BL-P)

3 770 ₽
4

90501-550A3-00 SPRING, COMPRESSION (WH-BL-WH)

SPRING, COMPRESSION (WH-BL-WH)

2 670 ₽
4

90501-550A5-00 SPRING, COMPRESSION (BL-Y-BL)

SPRING, COMPRESSION (BL-Y-BL)

8 340 ₽
4

90501-550A6-00 SPRING, COMPRESSION (WH-Y-WH)

SPRING, COMPRESSION (WH-Y-WH)

6 920 ₽
4

90501-580A3-00 SPRING, COMPRESSION (Y-Y-Y)

SPRING, COMPRESSION (Y-Y-Y)

4 400 ₽
4

90501-580A4-00 SPRING, COMPRESSION (GR-Y-GR)

SPRING, COMPRESSION (GR-Y-GR)

6 920 ₽
4

90501-600A4-00 SPRING, COMPRESSION (P-Y-P)

SPRING, COMPRESSION (P-Y-P)

6 920 ₽
4

90501-600A5-00 SPRING, COMPRESSION (OR-Y-OR)

SPRING, COMPRESSION (OR-Y-OR)

6 920 ₽
4

90501-580A2-00 SPRING, COMPRESSION (BL-BR-BL)

SPRING, COMPRESSION (BL-BR-BL)

7 550 ₽
5

8BV-17604-91-00 SEAT SPRING SET

SEAT SPRING SET

16 690 ₽
5

8BV-17604-71-00 SEAT SPRING SET

SEAT SPRING SET

16 690 ₽
5

8BV-17604-51-00 SEAT SPRING SET

SEAT SPRING SET

16 690 ₽
5

8BV-17604-11-00 SEAT SPRING SET

SEAT SPRING SET

16 690 ₽
5

8BV-17604-31-00 SEAT SPRING SET

SEAT SPRING SET

16 690 ₽
5

8FA-17604-00-00 SEAT SPRING SET

SEAT SPRING SET

21 570 ₽
6

90508-500B1-00 SPRING, TORSION (BROWN)

SPRING, TORSION (BROWN)

2 200 ₽
6

90508-60012-00 SPRING, TORSION (PINK)

SPRING, TORSION (PINK)

3 300 ₽
6

90508-60007-00 SPRING, TORSION (WHITE)

SPRING, TORSION (WHITE)

5 030 ₽
6

90508-60018-00 SPRING, TORSION (P-P)

SPRING, TORSION (P-P)

3 620 ₽
6

90508-556A2-00 SPRING, TORSION (GREEN)

SPRING, TORSION (GREEN)

3 300 ₽
6

90508-60016-00 SPRING, TORSION (WH-WH)

SPRING, TORSION (WH-WH)

3 620 ₽
6

90508-556A7-00 SPRING, TORSION (SILVER)

SPRING, TORSION (SILVER)

4 400 ₽
6

90508-536A9-00 SPRING, TORSION (RED)

SPRING, TORSION (RED)

2 200 ₽
7

8CR-17660-10-00 SECONDARY FIXED SHEAVE COMP.

SECONDARY FIXED SHEAVE COMP.

52 280 ₽
8

8AV-17688-10-00 ...SHOE, RAMP

...SHOE, RAMP

2 360 ₽
9

8CM-17665-00-00 ...PLATE 1

...PLATE 1

4 250 ₽
10

90150-05040-00 ...SCREW, ROUND HEAD

...SCREW, ROUND HEAD

150 ₽
11

8BU-17670-10-00 SECONDARY SLIDING SHEAVE

SECONDARY SLIDING SHEAVE

26 140 ₽
12

90384-38243-00 ...BUSH, BIMETAL FORMED

...BUSH, BIMETAL FORMED

3 620 ₽
13

95617-08630-00 ...BOLT, STUD

...BOLT, STUD

380 ₽
14

8CM-17675-00-00 ...PLATE 2

...PLATE 2

4 250 ₽
15

90150-05040-00 ...SCREW, ROUND HEAD

...SCREW, ROUND HEAD

150 ₽
