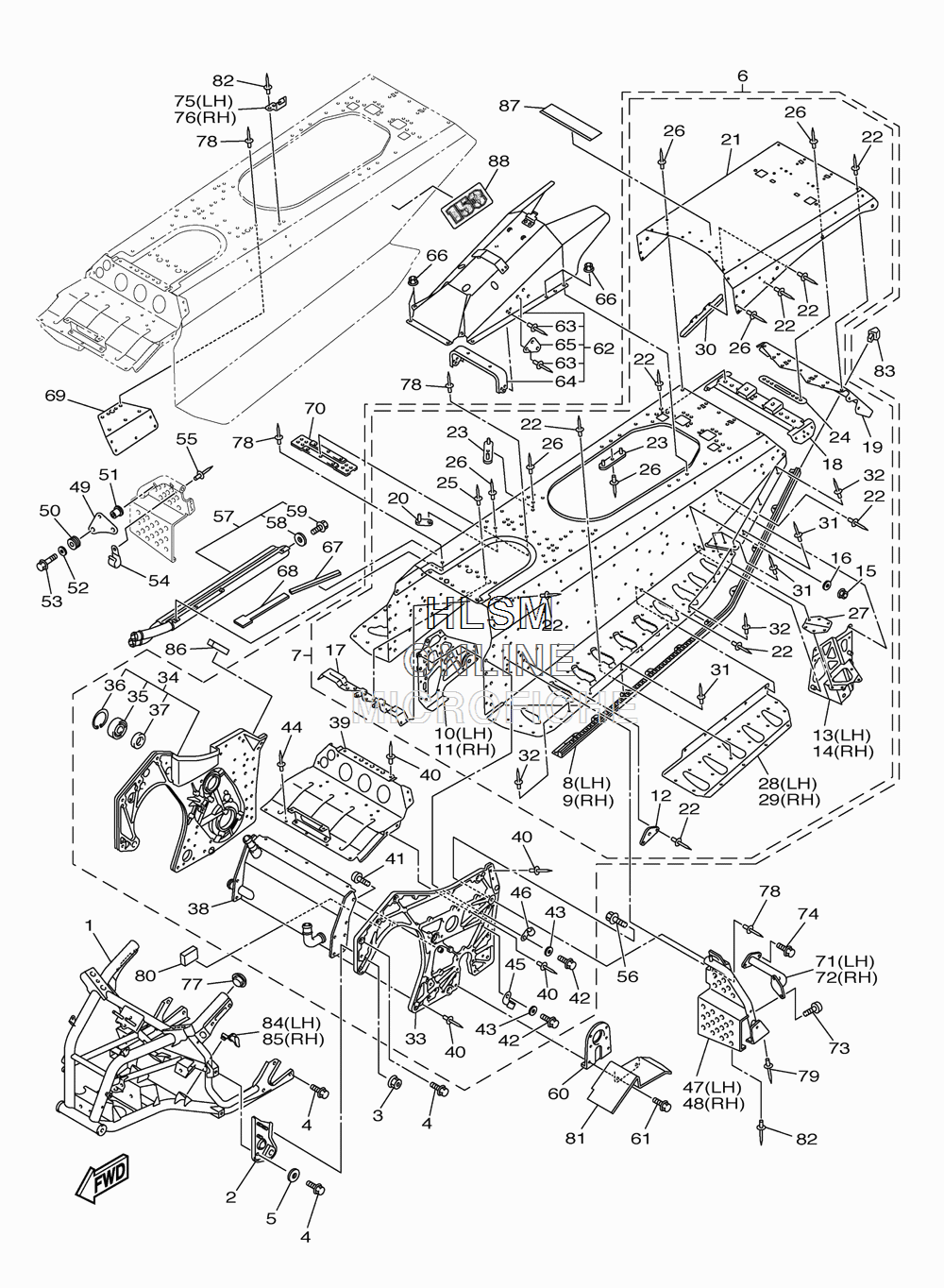

TUNNEL ASSEMBLY W/ LOWER NOSEPAN для Yamaha FX NYTRO MTX 153 - 2013 года выпуска
-
№АртикулНазвание
-
18GL-21940-03-00 FRONT FRAME COMP.FRONT FRAME COMP.
-
28GL-2194E-00-00 BRACKET, ENGINEBRACKET, ENGINE
-
390185-08054-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
495827-08016-00 BOLT, FLANGEBOLT, FLANGE
-
590201-086A3-00 WASHER, PLATEWASHER, PLATE
-
68HR-21950-00-00 REAR FRAME COMP.REAR FRAME COMP.
-
78HR-21950-09-00 ...REAR FRAME COMP....REAR FRAME COMP.
-
88HK-21926-00-00 .....REINFORCEMENT, FOOTREST 1.....REINFORCEMENT, FOOTREST 1
-
98HK-21936-00-00 .....REINFORCEMENT, FOOTREST 2.....REINFORCEMENT, FOOTREST 2
-
108HR-21943-00-00 .....BRACKET, MAIN TRACK 1.....BRACKET, MAIN TRACK 1
-
118HR-21953-00-00 .....BRACKET, MAIN TRACK 2.....BRACKET, MAIN TRACK 2
-
128FU-21919-00-00 .....BRACKET, MAIN TRACK 3.....BRACKET, MAIN TRACK 3
-
138HR-21944-00-00 .....BRACKET, RR. TRACK SUSP.....BRACKET, RR. TRACK SUSP
-
148HR-21954-00-00 .....BRACKET, RR. TRACK SUSP.....BRACKET, RR. TRACK SUSP
-
1590176-10075-00 .....NUT, CROWN.....NUT, CROWN
-
1690201-10035-00 ...WASHER, PLATE...WASHER, PLATE
-
178GL-2194H-00-00 .....PROTECTOR, MUFFLER.....PROTECTOR, MUFFLER
-
188GL-2197N-00-00 .....BRACKET 7.....BRACKET 7
-
198HL-21923-00-00 .....REINEFORCEMENT, FRAME REAR.....REINEFORCEMENT, FRAME REAR
-
208CR-2194N-00-00 .....BRACKET, FUEL TANK 1.....BRACKET, FUEL TANK 1
-
218HR-21917-00-00 .....PANEL, SUB FRAME 6.....PANEL, SUB FRAME 6
-
2290267-47195-00 ...RIVET, BLIND (4.7X16.4 YELLOW) QTY. 117...RIVET, BLIND (4.7X16.4 YELLOW) QTY. 117
-
238GL-22512-00-00 .....BRACKET 8.....BRACKET 8
-
248GL-21295-00-00 .....NUT.....NUT
-
2590267-48010-00 ....RIVET, BLIND (4.8X12 YELLOW)....RIVET, BLIND (4.8X12 YELLOW)
-
2690267-48023-00 ...RIVET, BLIND (4.8X12.1 YELLOW)...RIVET, BLIND (4.8X12.1 YELLOW)
-
278HK-21961-00-00 .....PATCH 1.....PATCH 1
-
288HR-21963-00-00 .....PATCH 3.....PATCH 3
-
298HR-21964-00-00 .....PATCH 4.....PATCH 4
-
308HR-2193A-00-00 .....PROTECTOR.....PROTECTOR
-
3190267-48176-00 ...RIVET, BLIND (4.8X17 YELLOW)...RIVET, BLIND (4.8X17 YELLOW)
-
3290267-48177-00 .....RIVET, BLIND (4.8X14 YELLOW).....RIVET, BLIND (4.8X14 YELLOW)
-
338GL-21925-00-00 ...REINF., HOUSING 1...REINF., HOUSING 1
-
348GL-21930-00-00 ...HOUSING, REINF SUB-ASSY (RIGHT HAND)...HOUSING, REINF SUB-ASSY (RIGHT HAND)
-
3593306-20601-00 ......BEARING......BEARING
-
3699009-62500-00 ......CIRCLIP......CIRCLIP
-
3793102-30012-00 ......OIL SEAL......OIL SEAL
-
388HA-12440-00-00 ...HEAT EXCHANGER ASSY...HEAT EXCHANGER ASSY
-
398GL-21915-00-00 ...PANEL, SUB FRAME 4...PANEL, SUB FRAME 4
-
4090267-47195-00 ...RIVET, BLIND (4.7X16.4 YELLOW)...RIVET, BLIND (4.7X16.4 YELLOW)
-
4192012-08016-00 ...BOLT, BUTTON HEAD...BOLT, BUTTON HEAD
-
4297012-08016-00 ...BOLT...BOLT
-
4390201-08512-00 ...WASHER, PLATE...WASHER, PLATE
-
4490267-48010-00 ...RIVET, BLIND (4.8X12 YELLOW)...RIVET, BLIND (4.8X12 YELLOW)
-
4590462-08061-00 ...CLAMP...CLAMP
-
4690462-08064-00 ...CLAMP...CLAMP
-
478GL-21960-00-00 FOOTREST COMP. 1FOOTREST COMP. 1
-
488GL-21970-02-00 FOOTREST COMP. 2FOOTREST COMP. 2
-
498JH-83386-00-00 STAY, BUZZERSTAY, BUZZER
-
5090480-14004-00 GROMMETGROMMET
-
5190387-07391-00 COLLARCOLLAR
-
5290201-06057-00 WASHER, PLATEWASHER, PLATE
-
5395822-06025-00 BOLT, FLANGEBOLT, FLANGE
-
5490462-06022-00 CLAMPCLAMP
-
5590267-48023-00 RIVET, BLIND (4.8X12.1 YELLOW)RIVET, BLIND (4.8X12.1 YELLOW)
-
5695827-10030-00 BOLT, FLANGEBOLT, FLANGE
-
578HA-1241A-00-00 HEAT EXCHANGER ASSY 4HEAT EXCHANGER ASSY 4
-
5890210-06006-00 ...WASHER, SEAL...WASHER, SEAL
-
5997022-06010-00 ...BOLT...BOLT
-
608GL-21920-00-00 HOUSING, REINF SUB-ASSY (LEFT HAND)HOUSING, REINF SUB-ASSY (LEFT HAND)
-
6195812-08020-00 BOLT, FLANGEBOLT, FLANGE
-
628GL-21916-00-00 PANEL, SUB FRAME 5PANEL, SUB FRAME 5
-
6390267-47195-00 ...RIVET, BLIND (4.7X16.4 YELLOW)...RIVET, BLIND (4.7X16.4 YELLOW)
-
648GL-2194L-00-00 ...STAY, MUFFER...STAY, MUFFER
-
658GL-21946-00-00 ...BRACKET, SEAT FITTING...BRACKET, SEAT FITTING
-
6690176-06016-00 NUT, CAPNUT, CAP
-
678GL-22151-00-00 SEAL, GUARDSEAL, GUARD
-
688GL-22152-00-00 SEAL, GUARDSEAL, GUARD
-
698GL-21967-00-00 PATCH 7PATCH 7
-
708GL-21988-00-00 PATCH 8PATCH 8
-
718GL-27471-00-00 BAR, FOOTREST 1BAR, FOOTREST 1
-
728GL-27472-00-00 BAR, FOOTREST 2BAR, FOOTREST 2
-
7392012-06014-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
7495812-06012-00 BOLT, FLANGEBOLT, FLANGE
-
758GL-21151-00-00 BRACKET, REAR FENDER 1BRACKET, REAR FENDER 1
-
768GL-21152-00-00 BRACKET, REAR FENDER 2BRACKET, REAR FENDER 2
-
77180-22117-00-00 CAPCAP
-
7890267-47195-00 RIVET, BLIND (4.7X16.4 YELLOW)RIVET, BLIND (4.7X16.4 YELLOW)
-
7990267-48016-00 RIVET, BLIND (4.8X16.4 YELLOW)RIVET, BLIND (4.8X16.4 YELLOW)
-
808GL-21852-00-00 DAMPERDAMPER
-
818GL-2197B-00-00 PROTECTOR, FRAMEPROTECTOR, FRAME
-
8290267-48023-00 RIVET, BLIND (4.8X12.1 YELLOW)RIVET, BLIND (4.8X12.1 YELLOW)
-
838FS-2312G-00-00 PLUGPLUG
-
848HR-21279-00-00 PLUG, BLINDPLUG, BLIND
-
858HR-21289-00-00 PLUG, BLINDPLUG, BLIND
-
8690520-05012-00 DAMPER, PLATEDAMPER, PLATE
-
878HA-77762-E0-00 LABEL, WARNING 2LABEL, WARNING 2
-
888HU-2199A-01-00 GRAPHIC 1GRAPHIC 1
