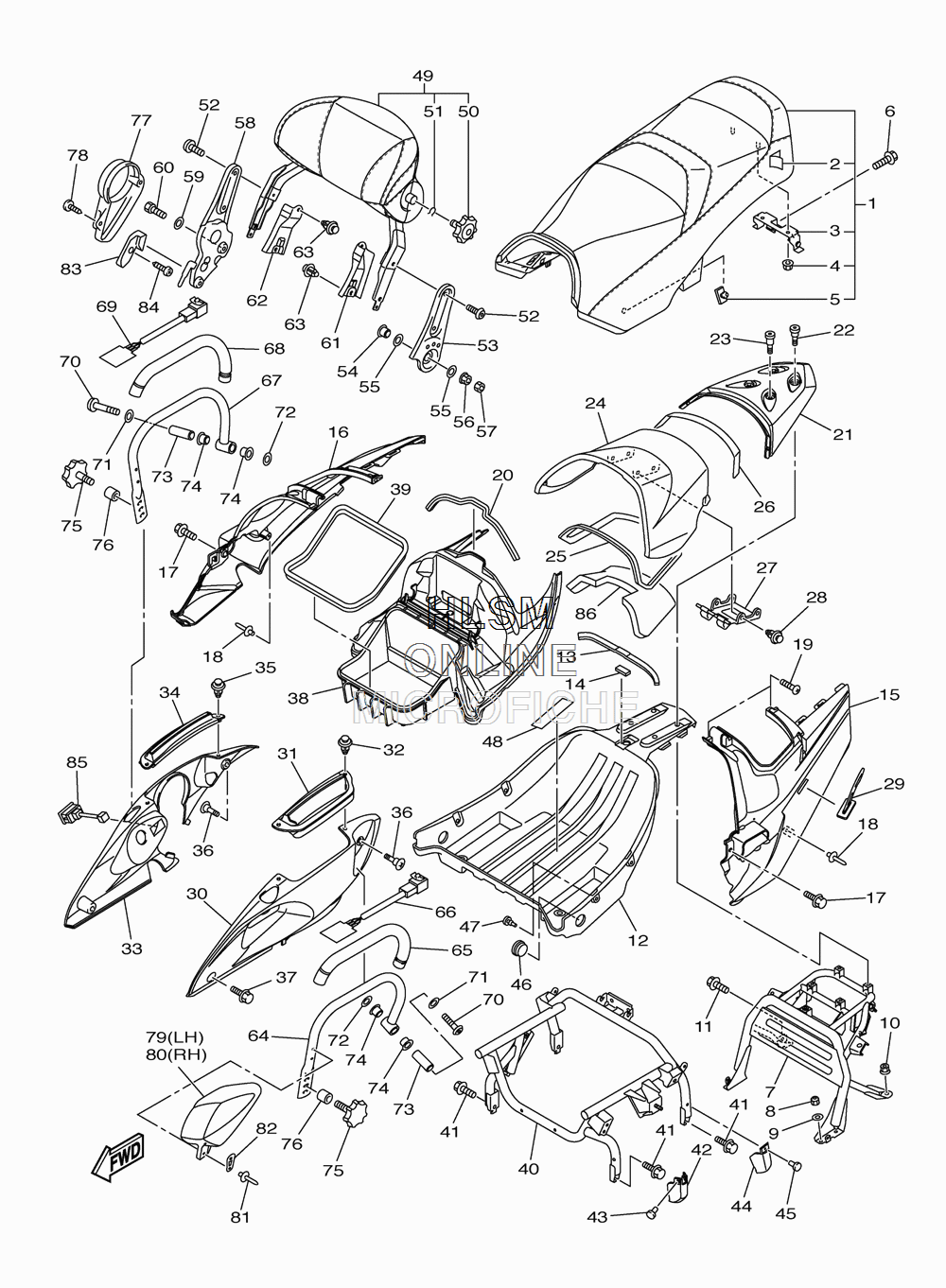

SEAT ASSY для Yamaha RS VENTURE GT - 2013 года выпуска
-
№АртикулНазвание
-
18HX-24730-00-00 DOUBLE SEAT ASSYDOUBLE SEAT ASSY
-
28HX-2470F-00-00 ...SEAT COVER COMP....SEAT COVER COMP.
-
38HF-2475H-00-00 ...BRACKET, SEAT LEVER 1...BRACKET, SEAT LEVER 1
-
495602-06200-00 ...NUT, SELF-LOCKING...NUT, SELF-LOCKING
-
5509-24724-00-00 ...DAMPER, SEAT...DAMPER, SEAT
-
695817-08020-00 ...BOLT, FLANGE...BOLT, FLANGE
-
78HF-24766-00-00 REINFORCEMENTREINFORCEMENT
-
895702-08300-00 NUT, NYLONNUT, NYLON
-
990201-08053-00 WASHER, PLATEWASHER, PLATE
-
1095602-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1195822-08014-00 BOLT, FLANGEBOLT, FLANGE
-
128ET-24756-01-00 COVER, TAILCOVER, TAIL
-
138HF-25975-00-00 RUBBER, BUSHINGRUBBER, BUSHING
-
148HF-24858-00-00 SEALSEAL
-
158HF-2471K-00-00 COVER, TAIL 1COVER, TAIL 1
-
168HF-2472K-00-00 COVER, TAIL 2COVER, TAIL 2
-
1790109-06220-00 BOLTBOLT
-
1890269-05006-00 RIVETRIVET
-
1997702-50025-00 SCREW, TAPPINGSCREW, TAPPING
-
208HF-78425-00-00 SEAL, SEATSEAL, SEAT
-
218HF-24756-00-33 COVER, TAIL (FOR YB - YAMAHA BLACK)COVER, TAIL (FOR YB - YAMAHA BLACK)
-
218HF-24756-00-P3 COVER, TAIL (FOR DPBML - PURPLISH BLUE)COVER, TAIL (FOR DPBML - PURPLISH BLUE)
-
2290109-08198-00 BOLTBOLT
-
2390109-08199-00 BOLTBOLT
-
248HF-2473T-00-33 LID 1 (FOR YB - YAMAHA BLACK)LID 1 (FOR YB - YAMAHA BLACK)
-
248HF-2473T-00-P3 LID 1 (FOR DPBML - PURPLISH BLUE)LID 1 (FOR DPBML - PURPLISH BLUE)
-
258HF-2475M-00-00 SEALSEAL
-
268HF-24723-00-00 DAMPER, SEATDAMPER, SEAT
-
278HF-24769-00-00 HINGE, SEATHINGE, SEAT
-
2890269-08005-00 RIVETRIVET
-
298HF-24734-00-00 BAND, SEATBAND, SEAT
-
308HF-24796-00-00 COVERCOVER
-
318HF-24731-00-00 COVER, SEATCOVER, SEAT
-
3290269-08005-00 RIVETRIVET
-
338HF-2475X-00-00 COVER,2COVER,2
-
348HF-24731-10-00 COVER, SEATCOVER, SEAT
-
3590269-08005-00 RIVETRIVET
-
3690154-06009-00 SCREW, BINDINGSCREW, BINDING
-
3790109-06220-00 BOLTBOLT
-
388HF-2473R-00-00 BOX 1BOX 1
-
398HF-7842A-00-00 SEAL, SEAT 2SEAL, SEAT 2
-
408HF-2475C-00-00 SEAT BASE, REARSEAT BASE, REAR
-
4195817-08020-00 .BOLT, FLANGE.BOLT, FLANGE
-
428HF-2476U-00-00 PROTECTOR,1PROTECTOR,1
-
4390269-05049-00 RIVET, SPEC'L SHAPERIVET, SPEC'L SHAPE
-
448HF-2476V-00-00 PROTECTOR, 2PROTECTOR, 2
-
4590269-05049-00 RIVET, SPEC'L SHAPERIVET, SPEC'L SHAPE
-
4690338-28239-00 PLUGPLUG
-
4790338-05008-00 PLUGPLUG
-
488FM-24897-01-00 EMBLEMEMBLEM
-
498HF-24790-01-00 SEAT BACK ASSYSEAT BACK ASSY
-
508DM-24598-01-00 ...KNOB...KNOB
-
518DM-24519-00-00 ...CLIP...CLIP
-
5292017-10016-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
538HF-2477R-00-00 ARM 2ARM 2
-
5490387-083Y8-00 COLLARCOLLAR
-
5590202-12236-00 WASHER, PLATEWASHER, PLATE
-
5695702-08500-00 NUT, FLANGENUT, FLANGE
-
5795302-08700-00 NUTNUT
-
588DM-24760-00-00 SEAT LEVER ASSYSEAT LEVER ASSY
-
5990201-10029-00 WASHER, PLATEWASHER, PLATE
-
6097012-10016-00 BOLTBOLT
-
618HF-24785-00-00 MOLD, SEATMOLD, SEAT
-
628HF-2478K-00-00 MOLD 2MOLD 2
-
6390269-08006-00 RIVETRIVET
-
648HF-2474A-00-00 ASSIST, GRIPASSIST, GRIP
-
658HF-2842M-00-00 COVER 1COVER 1
-
668HF-2474B-00-00 ASSIST GRIP WARMER ASSY 1ASSIST GRIP WARMER ASSY 1
-
678HF-2474W-00-00 ASSIST, GRIP 2ASSIST, GRIP 2
-
688HF-2842M-00-00 COVER 1COVER 1
-
698HF-2474B-00-00 ASSIST GRIP WARMER ASSY 1ASSIST GRIP WARMER ASSY 1
-
7092017-10080-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
7190201-100L3-00 WASHER, PLATEWASHER, PLATE
-
7290201-10043-00 WASHER, PLATEWASHER, PLATE
-
7390387-10090-00 COLLARCOLLAR
-
7490386-14002-00 BUSHBUSH
-
758CW-2479H-00-00 BODY, SEAT LOCKBODY, SEAT LOCK
-
768CW-24737-00-00 DAMPER, SEATDAMPER, SEAT
-
778DM-2475X-01-00 COVER,2COVER,2
-
7897702-40012-00 SCREW, TAPPINGSCREW, TAPPING
-
798HF-F6141-00-00 GUARD, BRUSH 1GUARD, BRUSH 1
-
808HF-F6142-00-00 GUARD, BRUSH 2GUARD, BRUSH 2
-
8190267-48051-00 RIVET, BLIND (4.8X18.7 BLACK)RIVET, BLIND (4.8X18.7 BLACK)
-
828HF-24722-00-00 WASHER, SPECIALWASHER, SPECIAL
-
838DM-2477F-00-00 LEVER, SEATLEVER, SEAT
-
8497702-40008-00 SCREW, TAPPINGSCREW, TAPPING
-
858ET-82917-00-00 SWITCHSWITCH
-
868HX-24724-00-00 DAMPER, SEATDAMPER, SEAT
