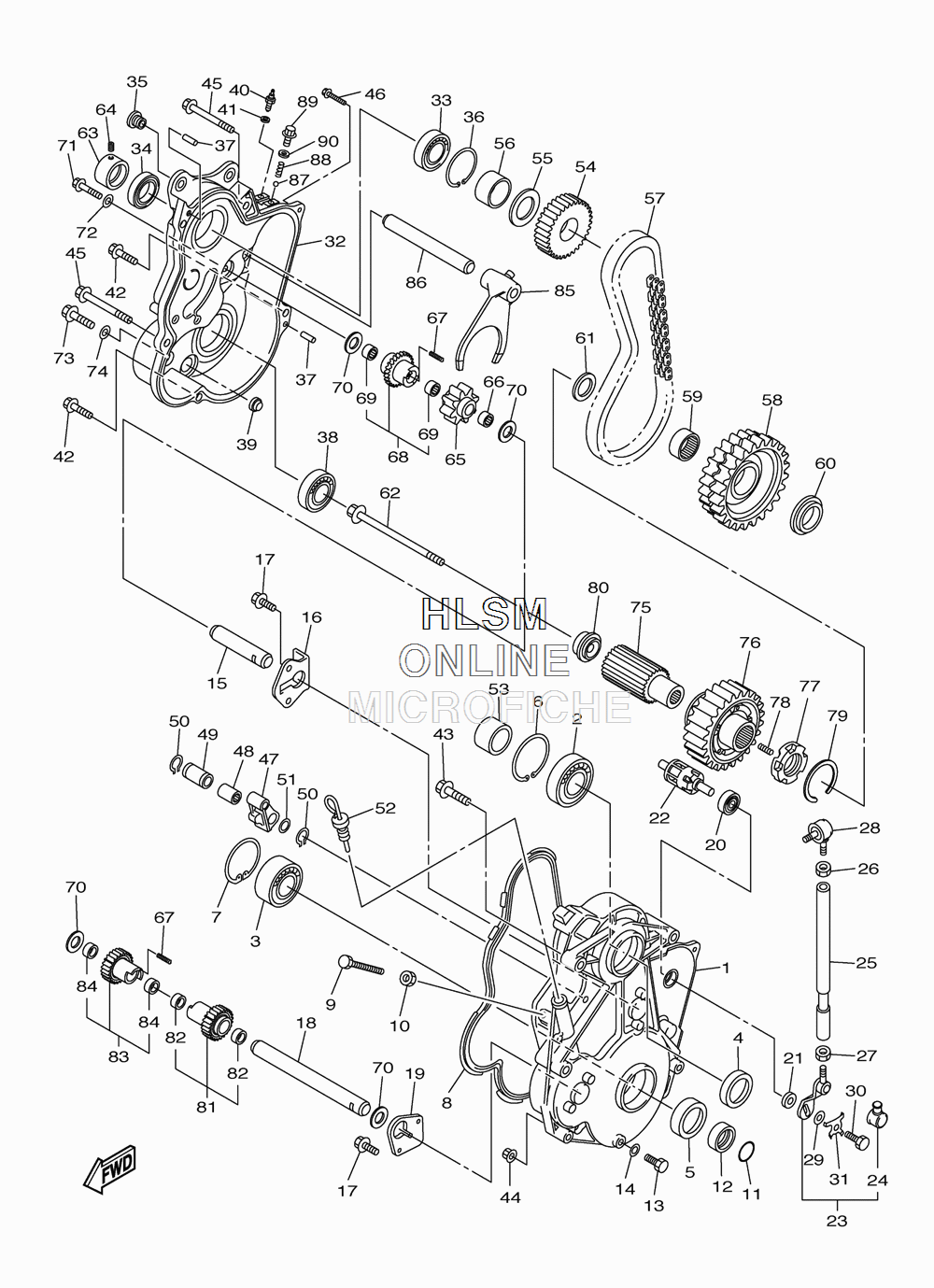

CHAINCASE ASSY для Yamaha RS VIKING PRO - 2013 года выпуска
-
№АртикулНазвание
-
18GS-47541-00-00 HOUSING, CHAINHOUSING, CHAIN
-
293306-20601-00 BEARINGBEARING
-
393304-20511-00 BEARINGBEARING
-
493102-30012-00 OIL SEALOIL SEAL
-
593102-35010-00 OIL SEALOIL SEAL
-
699009-62500-00 CIRCLIPCIRCLIP
-
799009-52500-00 CIRCLIPCIRCLIP
-
88GS-47558-00-00 RING, HOUSINGRING, HOUSING
-
990101-10357-00 BOLTBOLT
-
1095307-10600-00 NUTNUT
-
1193210-25071-00 O-RINGO-RING
-
1290387-2508C-00 COLLARCOLLAR
-
1397002-08014-00 BOLTBOLT
-
1490210-08017-00 WASHER, SEALWASHER, SEAL
-
158GS-1761A-00-00 SHAFT, 1SHAFT, 1
-
168CW-47591-00-00 PLATEPLATE
-
1790105-060A6-00 BOLT, FLANGEBOLT, FLANGE
-
188JE-1761E-00-00 SHAFT 2SHAFT 2
-
198GS-47591-00-00 PLATEPLATE
-
2093306-00208-00 BEARINGBEARING
-
2193102-15212-00 OIL SEAL, SD-TYPEOIL SEAL, SD-TYPE
-
228GS-18541-01-00 CAM, SHIFTCAM, SHIFT
