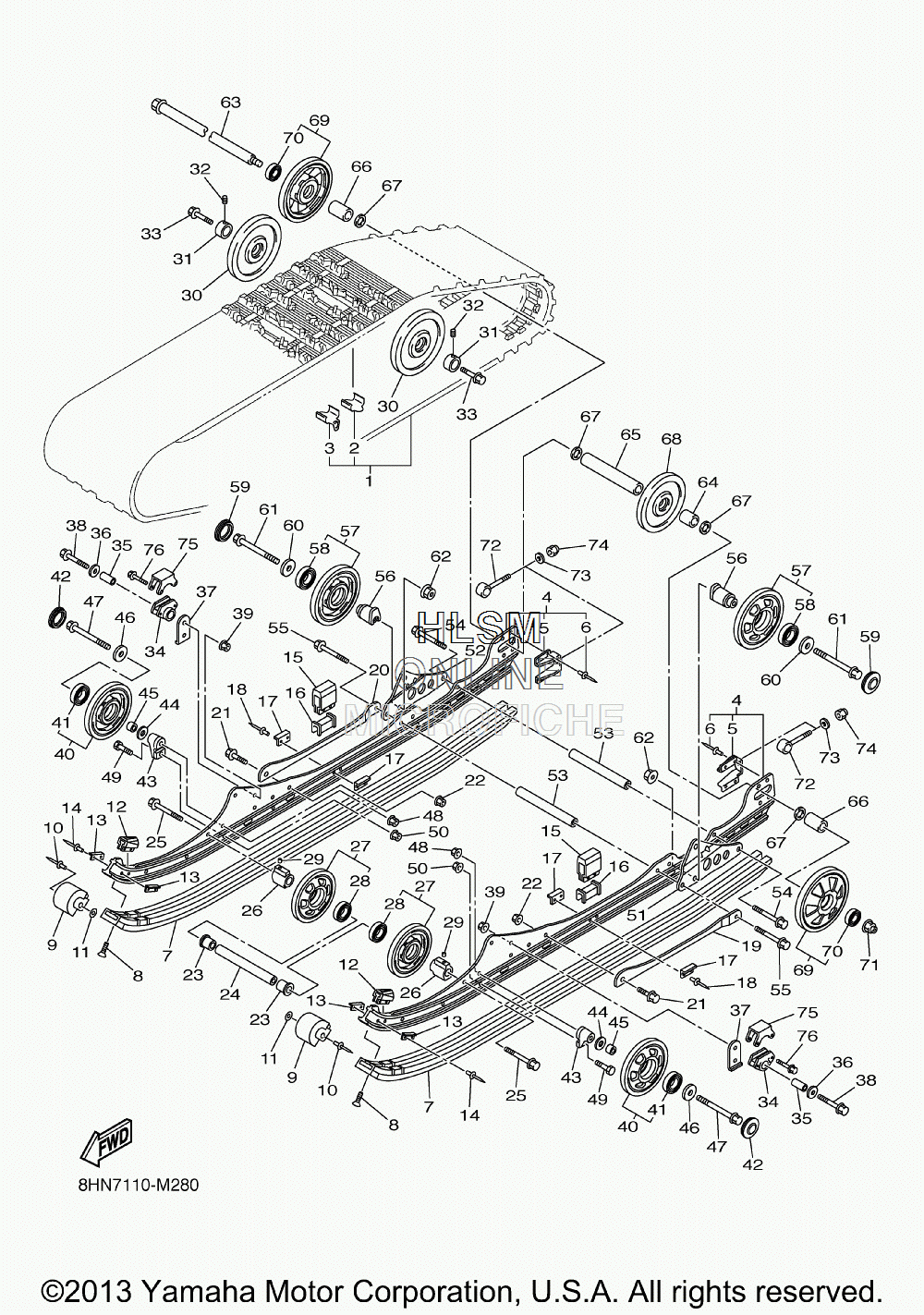

SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK для Yamaha APEX XTX - 2014 года выпуска
-
№АртикулНазвание
-
18ET-47110-30-00 TRACK ASSYTRACK ASSY
-
28HR-47113-09-00 ...PLATE, REINFORCEMENT...PLATE, REINFORCEMENT
-
38HR-47115-09-00 ...METAL, SLIDE...METAL, SLIDE
-
48HL-W4741-10-00 FRAME, SLIDINGFRAME, SLIDING
-
58DM-4741B-00-00 ...BRACKET...BRACKET
-
68V0-47468-00-00 ...RIVET...RIVET
-
78HL-47421-20-00 RUNNER, SLIDING 1RUNNER, SLIDING 1
-
890151-06010-00 SCREW, COUNTERSUNKSCREW, COUNTERSUNK
-
98GL-47422-00-00 RUNNER, SLIDING 2RUNNER, SLIDING 2
-
1090267-48194-00 RIVET, BLIND (4.8X28 SILVER)RIVET, BLIND (4.8X28 SILVER)
-
1190201-047R8-00 WASHER, PLATEWASHER, PLATE
-
128ES-47456-00-00 DAMPER 1DAMPER 1
-
138K2-47458-01-00 PLATE, DAMPERPLATE, DAMPER
-
1490267-48199-00 RIVET, BLIND (4.8X28.3)RIVET, BLIND (4.8X28.3)
-
158CM-47457-00-00 DAMPER 2DAMPER 2
-
168HL-47341-00-00 SPACERSPACER
-
178AX-47458-00-00 PLATE, DAMPERPLATE, DAMPER
-
1890267-48199-00 RIVET, BLIND (4.8X28.3)RIVET, BLIND (4.8X28.3)
-
198HL-4741C-00-00 FRAME, SLIDING CFRAME, SLIDING C
-
208HL-4741D-00-00 FRAME, SLIDING DFRAME, SLIDING D
-
2195812-10025-00 BOLT, FLANGEBOLT, FLANGE
-
2295602-10200-00 NUT SELF LOCKINGNUT SELF LOCKING
-
2390386-20001-00 BUSHBUSH
-
248GN-47487-00-00 SHAFT 5SHAFT 5
-
2590105-10209-00 BOLT, FLANGEBOLT, FLANGE
-
268ES-47319-10-00 COLLARCOLLAR
-
278HF-47310-10-00 SUSPENSION WHEEL ASSYSUSPENSION WHEEL ASSY
-
2893306-00507-00 ...BEARING...BEARING
-
2990113-06039-00 BOLT, SETBOLT, SET
-
308CR-47550-00-00 GUIDE WHEEL ASSYGUIDE WHEEL ASSY
-
318ES-47365-00-00 COLLAR 1COLLAR 1
-
3290113-06039-00 BOLT, SETBOLT, SET
-
3390105-103A1-00 BOLT, FLANGEBOLT, FLANGE
-
348JJ-47446-00-00 HOOK 1HOOK 1
-
3590387-10081-00 COLLARCOLLAR
-
3690201-100S0-00 WASHER, PLATEWASHER, PLATE
-
378HL-47374-00-00 WASHER 1WASHER 1
-
3895812-10055-00 BOLT, FLANGEBOLT, FLANGE
-
3995602-10200-00 NUT SELF LOCKINGNUT SELF LOCKING
-
408HF-47310-10-00 SUSPENSION WHEEL ASSYSUSPENSION WHEEL ASSY
-
4193306-00507-00 ...BEARING...BEARING
-
428HF-47317-00-00 CAP, WHEELCAP, WHEEL
-
438CM-47419-10-00 BRACKET 7BRACKET 7
-
4490201-10714-00 WASHER, PLATEWASHER, PLATE
-
4590387-10031-00 COLLARCOLLAR
-
4690201-101U2-00 WASHER, PLATEWASHER, PLATE
-
4790105-10241-00 BOLT, FLANGEBOLT, FLANGE
-
4895602-10200-00 NUT SELF LOCKINGNUT SELF LOCKING
-
4990101-08063-00 BOLTBOLT
-
5095602-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
518HL-47463-00-00 BRACKET 5BRACKET 5
-
528HL-47464-00-00 BRACKET 6BRACKET 6
-
538HL-47485-00-00 SHAFT 3SHAFT 3
-
5490105-08150-00 BOLT, FLANGEBOLT, FLANGE
-
5590105-08228-00 BOLT, FLANGEBOLT, FLANGE
-
568ES-47419-00-00 BRACKET 7BRACKET 7
-
578HF-47310-10-00 SUSPENSION WHEEL ASSYSUSPENSION WHEEL ASSY
-
5893306-00507-00 ...BEARING...BEARING
-
598HF-47317-00-00 CAP, WHEELCAP, WHEEL
-
6090201-101U2-00 WASHER, PLATEWASHER, PLATE
-
6190105-10233-00 BOLT, FLANGEBOLT, FLANGE
-
6295602-10200-00 NUT SELF LOCKINGNUT SELF LOCKING
-
638L8-47520-10-00 REAR AXLE COMP.REAR AXLE COMP.
-
6490387-20015-00 COLLARCOLLAR
-
6590387-20016-00 COLLARCOLLAR
-
6690387-20019-00 COLLARCOLLAR
-
6790201-205R6-00 WASHER, PLATEWASHER, PLATE
-
688CR-47550-10-00 GUIDE WHEEL ASSYGUIDE WHEEL ASSY
-
698HF-47550-10-00 GUIDE WHEEL ASSYGUIDE WHEEL ASSY
-
7093306-00444-00 ...BEARING...BEARING
-
7195602-14200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
728DM-47479-00-00 COLLAR 3COLLAR 3
-
7392902-10600-00 WASHER, PLATEWASHER, PLATE
-
7495702-10300-00 NUT, NYLONNUT, NYLON
-
758JJ-47467-00-00 PLATE, GUIDEPLATE, GUIDE
-
7697022-05030-00 BOLT, HEXAGONBOLT, HEXAGON
