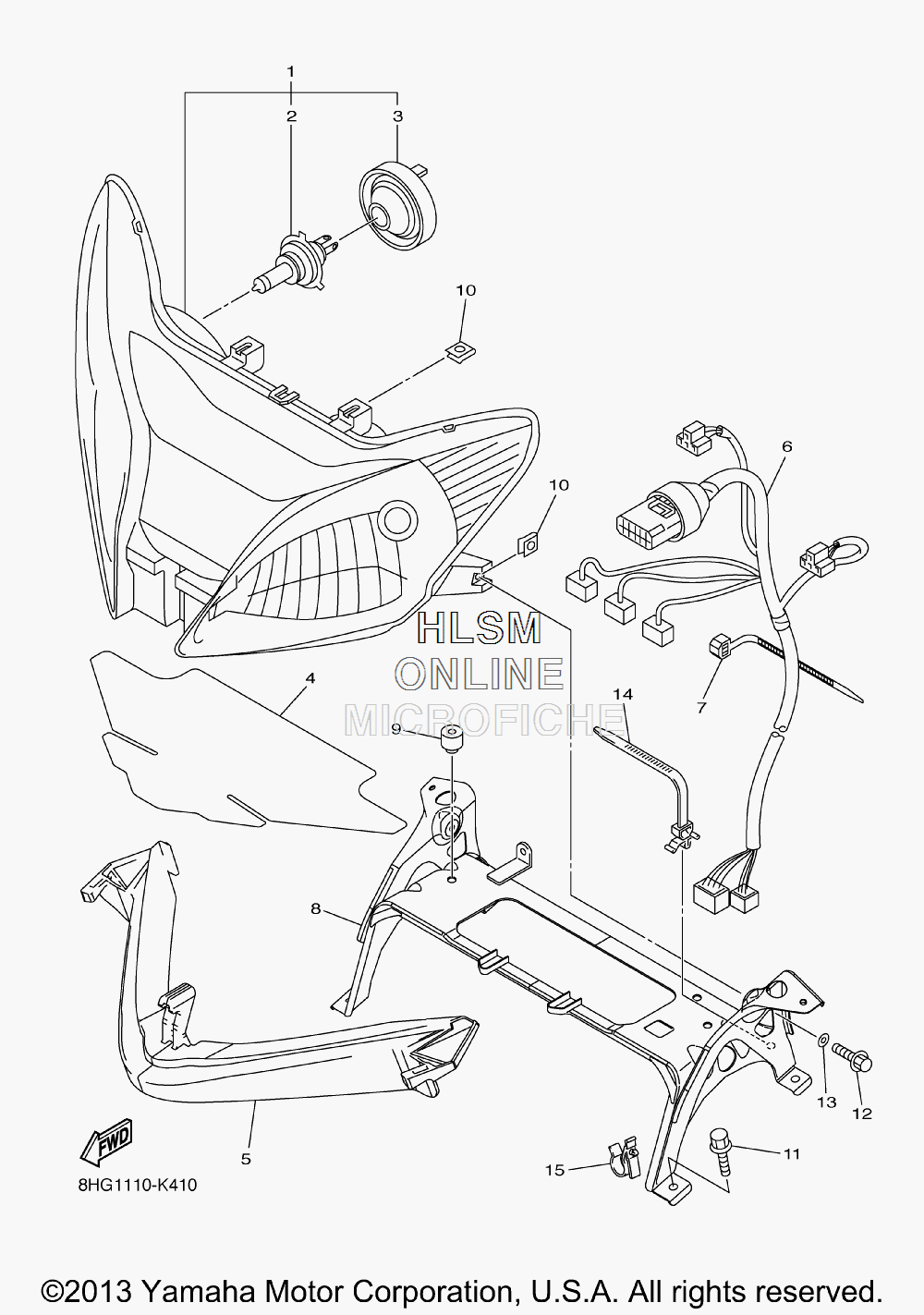

ELECTRICAL - HEADLIGHT ASSY для Yamaha APEX - 2014 года выпуска
-
№АртикулНазвание
-
18FP-84310-00-00 HEADLIGHT UNIT ASSYHEADLIGHT UNIT ASSY
-
28FP-84314-00-00 ...BULB, HEADLIGHT (12V-60/55W)...BULB, HEADLIGHT (12V-60/55W)
-
38EK-84397-00-00 ...COVER, SOCKET...COVER, SOCKET
-
48HG-8399N-00-00 INSULATOR 1INSULATOR 1
-
58FP-84366-00-00 DAMPER, HEADLIGHT 1DAMPER, HEADLIGHT 1
-
68HG-84359-10-00 CORD, HEADLIGHTCORD, HEADLIGHT
-
790464-13077-00 CLAMPCLAMP
-
88HG-84118-00-00 STAY, HEADLIGHT 1STAY, HEADLIGHT 1
-
91UJ-27114-00-00 STOPPER, MAIN STANDSTOPPER, MAIN STAND
-
1090183-06100-00 NUT, SPRINGNUT, SPRING
-
1195802-06016-00 BOLT, FLANGEBOLT, FLANGE
-
1297002-06016-00 BOLTBOLT
-
1392902-06100-00 WASHER, SPRINGWASHER, SPRING
-
1490464-12036-00 CLAMPCLAMP
-
1590464-25007-00 CLAMPCLAMP
