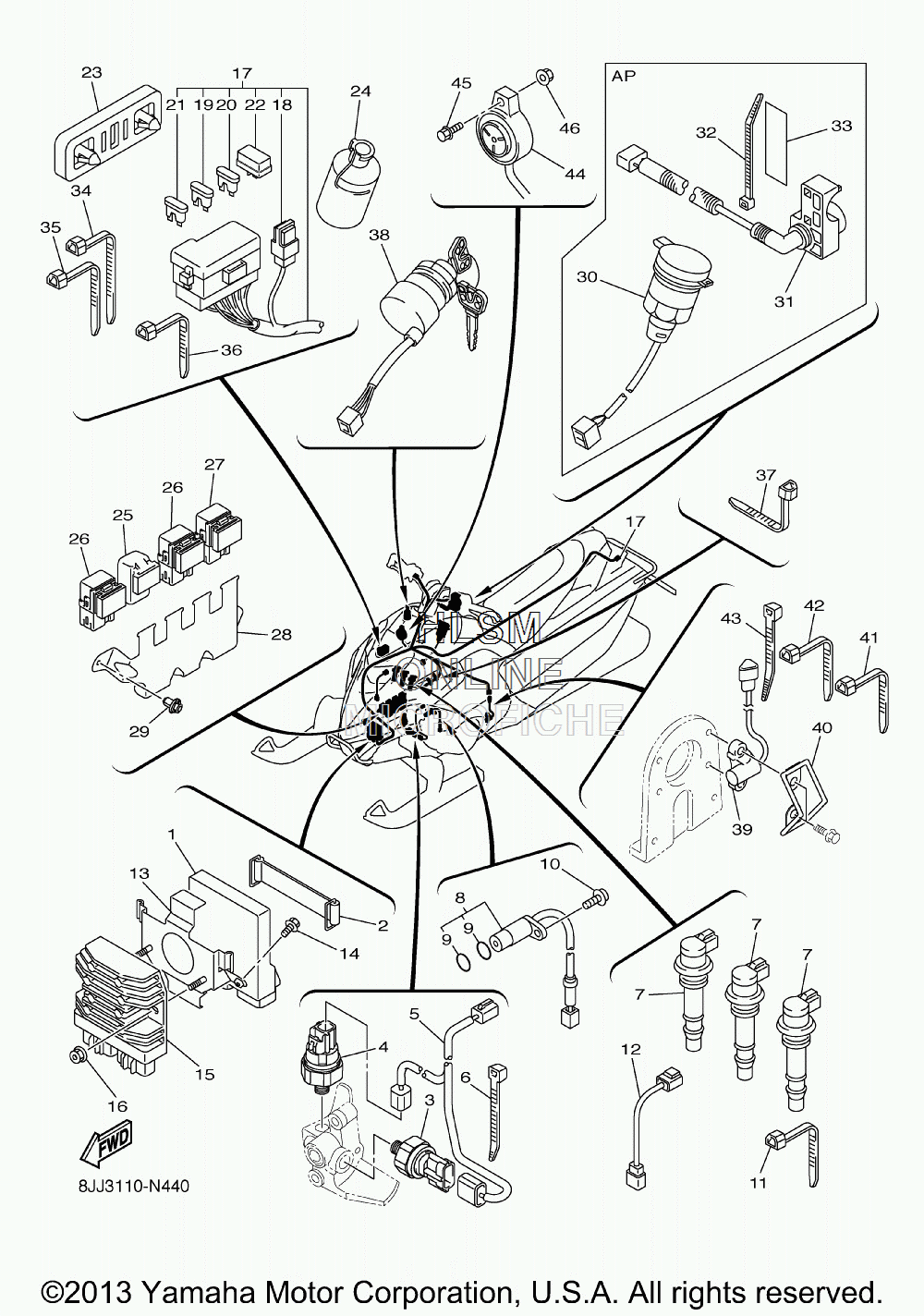

ELECTRICAL - COIL, CDI, RECTIFIER, RELAYS AND SWITCHES для Yamaha FX NYTRO - 2014 года выпуска
-
№АртикулНазвание
-
18GL-8591A-20-00 ENGINE CONTROL UNIT ASSYENGINE CONTROL UNIT ASSY
-
22T4-82131-00-00 BAND, BATTERYBAND, BATTERY
-
38GN-83651-00-00 SENDER, OIL PRESSURESENDER, OIL PRESSURE
-
48FP-82504-00-00 OIL PRESSURE SWITCH ASSYOIL PRESSURE SWITCH ASSY
-
58GL-82318-10-00 WIRE, SUB-LEADWIRE, SUB-LEAD
-
65Y9-12491-00-00 CLAMP 1CLAMP 1
-
78ES-82310-00-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
88GL-81670-00-00 PICK-UP ASSYPICK-UP ASSY
-
95VY-8A8E1-00-00 ...O-RING 1...O-RING 1
-
1090110-06218-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1190464-13073-00 CLAMPCLAMP
-
128GL-81515-10-00 LEAD WIRE ASSYLEAD WIRE ASSY
-
138GL-85991-00-00 BRACKET, UNITBRACKET, UNIT
-
1495022-06010-00 BOLT, FLANGEBOLT, FLANGE
-
151D7-81960-01-00 RECTIFIER & REGULATOR ASSYRECTIFIER & REGULATOR ASSY
-
1695602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
178HK-82590-31-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
185PS-82151-00-00 ...FUSE (40A)...FUSE (40A)
-
195JJ-82151-30-00 ...FUSE (10A-BL)...FUSE (10A-BL)
-
205JJ-82151-20-00 ...FUSE (20A-BL)...FUSE (20A-BL)
-
215JJ-82151-50-00 ...FUSE (3A-BL)...FUSE (3A-BL)
-
224WA-81980-00-00 ...DIODE ASSY...DIODE ASSY
-
238FA-83614-00-00 BRACKETBRACKET
-
248GL-8252U-00-00 COVERCOVER
-
255DM-81950-00-00 RELAY ASSY (G8HN-1C4T-DJ-Y52)RELAY ASSY (G8HN-1C4T-DJ-Y52)
-
268HG-81950-09-00 RELAY ASSY (8HG-09)RELAY ASSY (8HG-09)
-
278GN-81950-00-00 RELAY ASSY (8GN-00)RELAY ASSY (8GN-00)
-
288GL-81952-00-00 HOLDER, RELAYHOLDER, RELAY
-
2990269-08006-00 RIVETRIVET
-
308FP-8254B-00-00 TERMINAL COMP.TERMINAL COMP.
-
318HK-8254B-00-00 TERMINAL COMP.TERMINAL COMP.
-
3290464-35132-00 CLAMPCLAMP
-
338HF-84527-00-00 DAMPERDAMPER
-
3490464-15195-00 CLAMPCLAMP
-
3590464-13073-00 CLAMPCLAMP
-
3690464-13077-00 CLAMPCLAMP
-
3790464-12045-00 CLAMPCLAMP
-
388HK-82510-00-00 MAIN SWITCH ASSYMAIN SWITCH ASSY
-
398GL-83755-00-00 SENSOR, SPEEDSENSOR, SPEED
-
408GC-2198G-00-00 COVER 2COVER 2
-
4190464-13073-00 CLAMPCLAMP
-
4290464-35132-00 CLAMPCLAMP
-
4390464-15195-00 CLAMPCLAMP
-
448GL-83383-00-00 BUZZERBUZZER
-
4590159-05035-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
4695602-05200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
