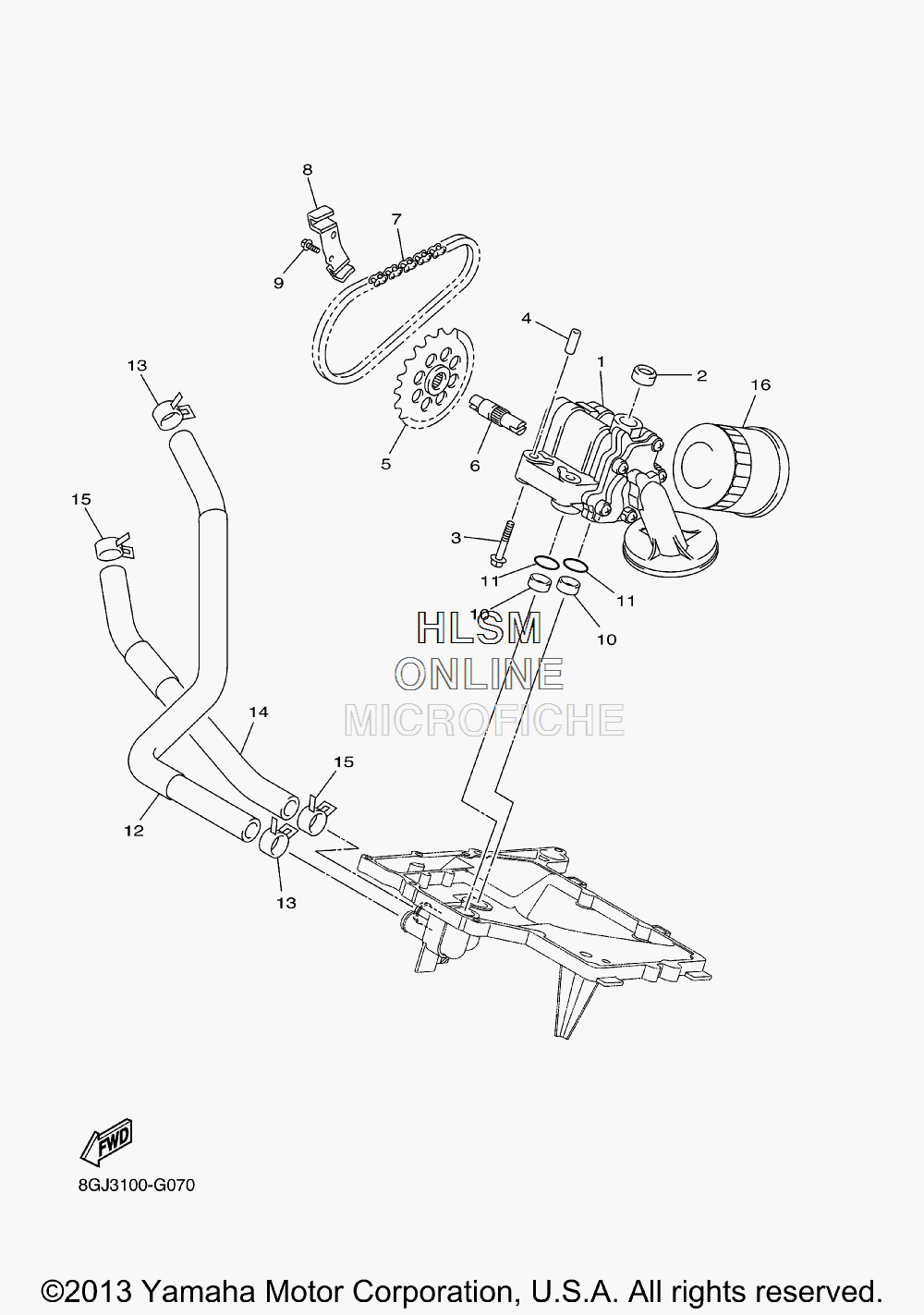

OIL PUMP ASSY для Yamaha PHAZER XTX - 2014 года выпуска
-
№АртикулНазвание
-
18GC-13300-00-00 OIL PUMP ASSYOIL PUMP ASSY
-
25GJ-13475-00-00 GASKETGASKET
-
395812-06040-00 BOLT, FLANGEBOLT, FLANGE
-
499530-08012-00 PIN, DOWELPIN, DOWEL
-
58GC-13355-10-00 SPROCKET, DRIVENSPROCKET, DRIVEN
-
68GC-13344-10-00 SHAFT, DRIVEN GEARSHAFT, DRIVEN GEAR
-
794581-94068-00 CHAINCHAIN
-
88GC-13898-10-00 HOLDERHOLDER
-
990105-06063-00 BOLT, FLANGEBOLT, FLANGE
-
1090387-13005-00 COLLARCOLLAR
-
1193210-15566-00 O-RINGO-RING
-
128GC-13464-00-00 HOSE, OIL 1HOSE, OIL 1
-
1390467-22097-00 CLIPCLIP
-
148GC-13465-00-00 HOSE, OIL 2HOSE, OIL 2
-
1590467-22097-00 CLIPCLIP
-
165DM-13440-00-00 ELEMENT ASSY, OIL CLEANERELEMENT ASSY, OIL CLEANER
