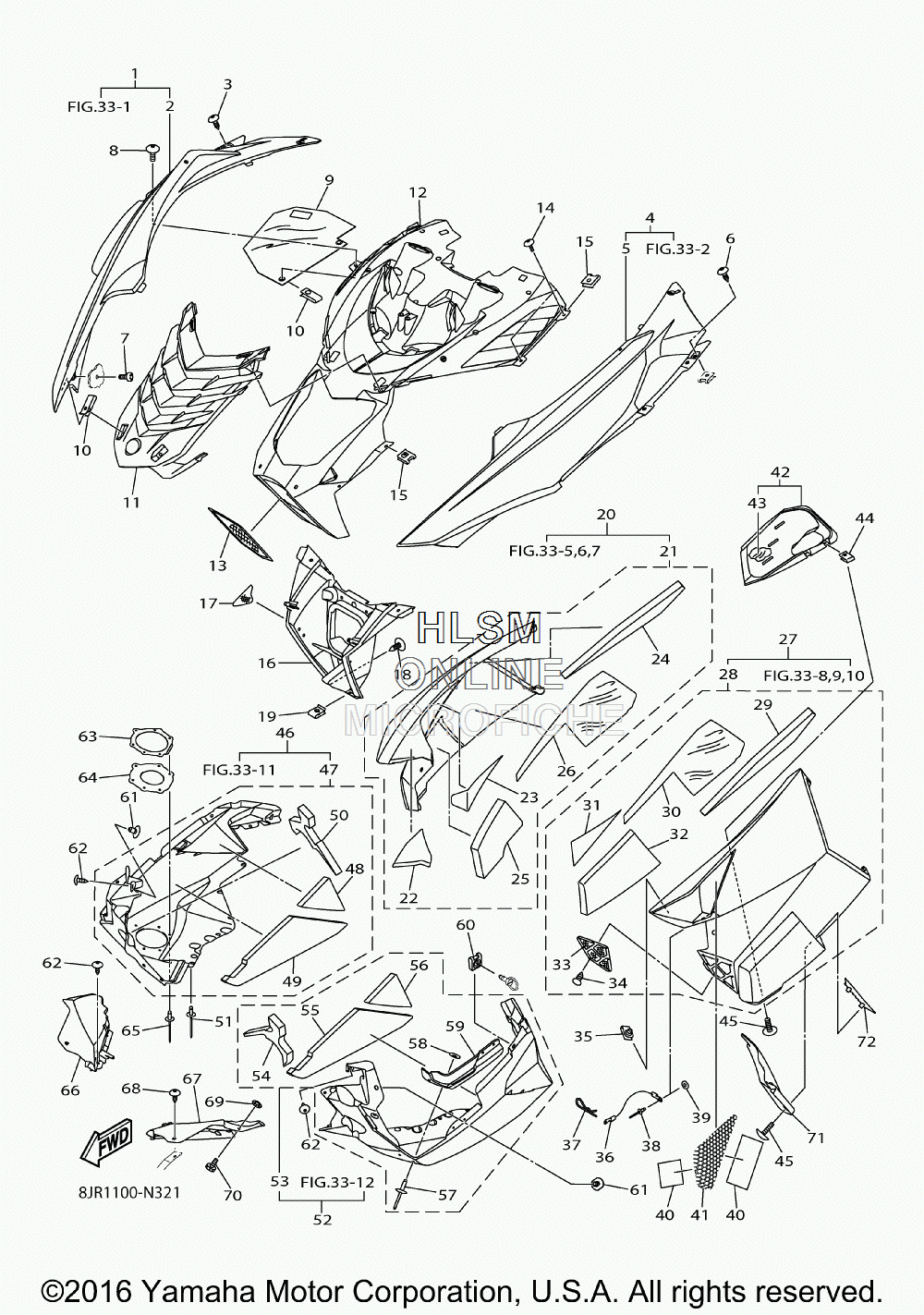

HOOD ASSY для Yamaha SR VIPER XTX SE - 2014 года выпуска
-
№АртикулНазвание
-
18JW-F198A-20-00 HOOD ASSY 4 FOR DPBSEHOOD ASSY 4 FOR DPBSE
-
18JW-F198A-10-00 HOOD ASSY 4 FOR VRC1HOOD ASSY 4 FOR VRC1
-
28JW-K7122-20-00 ......HOOD 2 FOR DPBSE......HOOD 2 FOR DPBSE
-
28JW-K7122-10-00 ......HOOD 2 FOR VRC1......HOOD 2 FOR VRC1
-
38JP-RA290-00-00 SCREW, 10-12X3/4SCREW, 10-12X3/4
-
48JW-F197A-20-00 HOOD ASSY 3 FOR DPBSEHOOD ASSY 3 FOR DPBSE
-
48JW-F197A-10-00 HOOD ASSY 3 FOR VRC1HOOD ASSY 3 FOR VRC1
-
58JW-K7121-20-00 ......HOOD 1 FOR DPBSE......HOOD 1 FOR DPBSE
-
58JW-K7121-10-00 ......HOOD 1 FOR VRC1......HOOD 1 FOR VRC1
-
68JP-RA290-00-00 SCREW, 10-12X3/4SCREW, 10-12X3/4
-
78JP-RA291-00-00 SCREW, TAPPINGSCREW, TAPPING
-
88JP-RA288-00-00 SCREW, 10-12X1.00SCREW, 10-12X1.00
-
98JP-F199H-00-00 SHIELD, HEATSHIELD, HEAT
-
108JP-RA351-00-00 NUT, CLIP 10NUT, CLIP 10
-
118JP-F837L-00-00 PANEL, CONSOLE 1PANEL, CONSOLE 1
-
128JP-K7111-00-00 SHROUDSHROUD
-
138JP-K815R-00-00 GRILL, FRONTGRILL, FRONT
-
148JM-RA208-00-00 SCREW, 10-12X1/2SCREW, 10-12X1/2
-
158JP-RA352-00-00 NUT, CLIP 10NUT, CLIP 10
-
168JP-R1311-00-00 DUCT, INTAKEDUCT, INTAKE
-
178JP-H5133-00-00 TAPE, REFLECTORTAPE, REFLECTOR
-
188JM-RA201-00-00 SCREW, TAPPING 10-12X5/8SCREW, TAPPING 10-12X5/8
-
198JP-RA353-00-00 NUT, CLIP M5NUT, CLIP M5
-
208JW-K810G-20-00 SIDE PANEL COMP. (R.H) FOR DPBSESIDE PANEL COMP. (R.H) FOR DPBSE
-
208JW-K810G-10-00 SIDE PANEL COMP. (R.H) FOR VRC1SIDE PANEL COMP. (R.H) FOR VRC1
-
218JW-K8140-20-00 ......SHELL SIDE PANEL ASSY 2 FOR DPBSE......SHELL SIDE PANEL ASSY 2 FOR DPBSE
-
218JW-K8140-10-00 ......SHELL SIDE PANEL ASSY 2 FOR VRC1......SHELL SIDE PANEL ASSY 2 FOR VRC1
-
228JP-K7277-00-00 ......DAMPER, NOISE 17......DAMPER, NOISE 17
-
238JP-K7551-00-00 ......PROTECTOR 1......PROTECTOR 1
-
248JP-K7279-00-00 ......DAMPER, NOISE 19......DAMPER, NOISE 19
-
258JP-K7278-00-00 ......DAMPER, NOISE 18......DAMPER, NOISE 18
-
268JP-K7552-00-00 ......PROTECTOR 2......PROTECTOR 2
-
278JW-K810F-20-00 SIDE PANEL COMP. (L.H) FOR DPBSESIDE PANEL COMP. (L.H) FOR DPBSE
-
278JW-K810F-10-00 SIDE PANEL COMP. (L.H) FOR VRC1SIDE PANEL COMP. (L.H) FOR VRC1
-
288JW-K8130-20-00 ......SHELL SIDE PANEL ASSY 1 FOR DPBSE......SHELL SIDE PANEL ASSY 1 FOR DPBSE
-
288JW-K8130-10-00 ......SHELL SIDE PANEL ASSY 1 FOR VRC1......SHELL SIDE PANEL ASSY 1 FOR VRC1
-
298JP-K7273-00-00 ......DAMPER, NOISE 13......DAMPER, NOISE 13
-
308JP-K7274-00-00 ......DAMPER, NOISE 14......DAMPER, NOISE 14
-
318JP-K7275-00-00 ......DAMPER, NOISE 15......DAMPER, NOISE 15
-
328JP-K7276-00-00 ......DAMPER, NOISE 16......DAMPER, NOISE 16
-
338JP-F6234-00-00 ......SCREEN......SCREEN
-
348JP-RA510-00-00 ......RIVET, 1......RIVET, 1
-
358JP-RA353-00-00 NUT, CLIP M5NUT, CLIP M5
-
368JP-F1654-00-00 WIREWIRE
-
378JP-RAC14-00-00 CLIP, 5CLIP, 5
-
388JP-RA515-00-00 RIVET, 6RIVET, 6
-
398JP-RA451-00-00 WASHER, 8X0.375X0.049WASHER, 8X0.375X0.049
-
408JM-F199H-00-00 SHIELD, HEATSHIELD, HEAT
-
418JR-K717J-00-00 TAPE,5TAPE,5
-
428JP-K7194-00-00 DUCTDUCT
-
438JP-K7553-00-00 ...PROTECTOR 3...PROTECTOR 3
-
448JP-RA351-00-00 NUT, CLIP 10NUT, CLIP 10
-
458JM-RA208-00-00 SCREW, 10-12X1/2SCREW, 10-12X1/2
-
468JP-F1983-00-00 HOOD 2 FOR VRC1HOOD 2 FOR VRC1
-
468JW-F1983-30-00 HOOD 2 FOR DPBSEHOOD 2 FOR DPBSE
-
478JP-F198H-00-00 ......HOOD 4 FOR VRC1......HOOD 4 FOR VRC1
-
478JW-F198H-30-00 ......HOOD 4 FOR DPBSE......HOOD 4 FOR DPBSE
-
488JP-K7554-00-00 ......PROTECTOR 4......PROTECTOR 4
-
498JP-K7555-00-00 ......PROTECTOR 5......PROTECTOR 5
-
508JP-K7556-00-00 ......PROTECTOR 6......PROTECTOR 6
-
518JP-RA523-00-00 RIVET, 14RIVET, 14
-
528JP-F1982-00-00 HOOD 1 FOR VRC1HOOD 1 FOR VRC1
-
528JW-F1982-30-00 HOOD 1 FOR DPBSEHOOD 1 FOR DPBSE
-
538JP-F197H-00-00 ......HOOD 3 FOR VRC1......HOOD 3 FOR VRC1
-
538JW-F197H-30-00 ......HOOD 3 FOR DPBSE......HOOD 3 FOR DPBSE
-
548JP-K811V-00-00 ......PROTECTOR 1......PROTECTOR 1
-
558JP-K811W-00-00 ......PROTECTOR 2......PROTECTOR 2
-
568JP-K811X-00-00 ......PROTECTOR 3......PROTECTOR 3
-
578JP-RA523-00-00 ............RIVET, 14 FOR VRC1............RIVET, 14 FOR VRC1
-
578JP-RA531-00-00 ............RIVET, 19 FOR DPBSE............RIVET, 19 FOR DPBSE
-
588JM-RA411-00-00 ......WASHER, PLAIN 0.194......WASHER, PLAIN 0.194
-
598JP-K8121-00-00 ......REINFORCEMENT 1......REINFORCEMENT 1
-
608JP-RA350-00-00 NUT, CLIP 1/4NUT, CLIP 1/4
-
618JP-RA513-00-00 RIVET, 4RIVET, 4
-
628JM-RA201-00-00 SCREW, TAPPING 10-12X5/8SCREW, TAPPING 10-12X5/8
-
638JP-K8181-00-00 PLATE 1PLATE 1
-
648JP-G1138-00-00 SEAL, EXT. 1SEAL, EXT. 1
-
658JP-RA522-00-00 RIVET, 13RIVET, 13
-
668JP-F1962-00-00 PATCH 2PATCH 2
-
678JP-F1961-00-00 PATCH 1PATCH 1
-
688JP-RA290-00-00 SCREW, 10-12X3/4SCREW, 10-12X3/4
-
698JP-RA348-00-00 NUT, 3/16NUT, 3/16
-
708JP-RA243-00-00 SCREW, M5X0.8X20SCREW, M5X0.8X20
-
718JP-F4131-00-00 DEFLECTOR 1DEFLECTOR 1
-
728JP-F4132-00-00 DEFLECTOR 2DEFLECTOR 2
