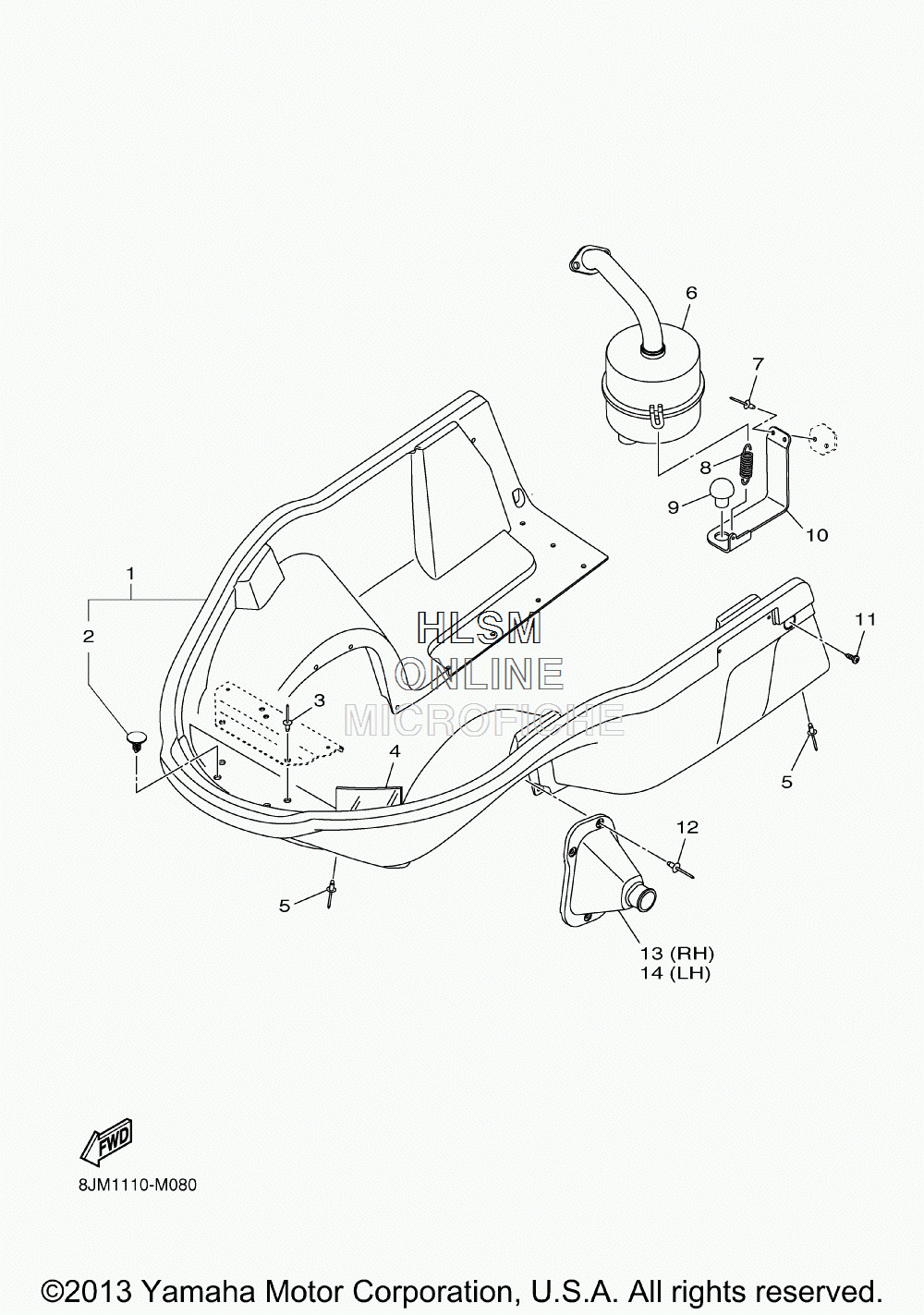

EXHAUST SYSTEM для Yamaha SRX 120 - 2014 года выпуска
-
№АртикулНазвание
-
18JM-F1912-00-00 PANEL, SUB FRAME 1PANEL, SUB FRAME 1
-
28JM-RA600-00-00 ...PLUG, 1...PLUG, 1
-
38JM-RA501-00-00 RIVET, BLIND 2RIVET, BLIND 2
-
48JM-F199H-00-00 SHIELD, HEATSHIELD, HEAT
-
58JM-RA502-00-00 RIVET, BLIND 3RIVET, BLIND 3
-
68JM-E4750-00-00 SILENCER ASSYSILENCER ASSY
-
78JM-RA500-00-00 RIVET, BLIND 1RIVET, BLIND 1
-
88JM-RAD04-00-00 SPRING, TENSION 3SPRING, TENSION 3
-
98JM-E4718-00-00 PROTECTOR, MUFFLER 1PROTECTOR, MUFFLER 1
-
108JM-F194J-00-00 STAY, MUFFLERSTAY, MUFFLER
-
118JM-RA201-00-00 SCREW, TAPPING 10-12X5/8SCREW, TAPPING 10-12X5/8
-
128JM-RA503-00-00 RIVET, BLIND 4RIVET, BLIND 4
-
138JM-F198G-00-00 BOOT TIE ROD (RIGHT)BOOT TIE ROD (RIGHT)
-
148JM-F198F-00-00 BOOT TIE ROD (LEFT)BOOT TIE ROD (LEFT)
