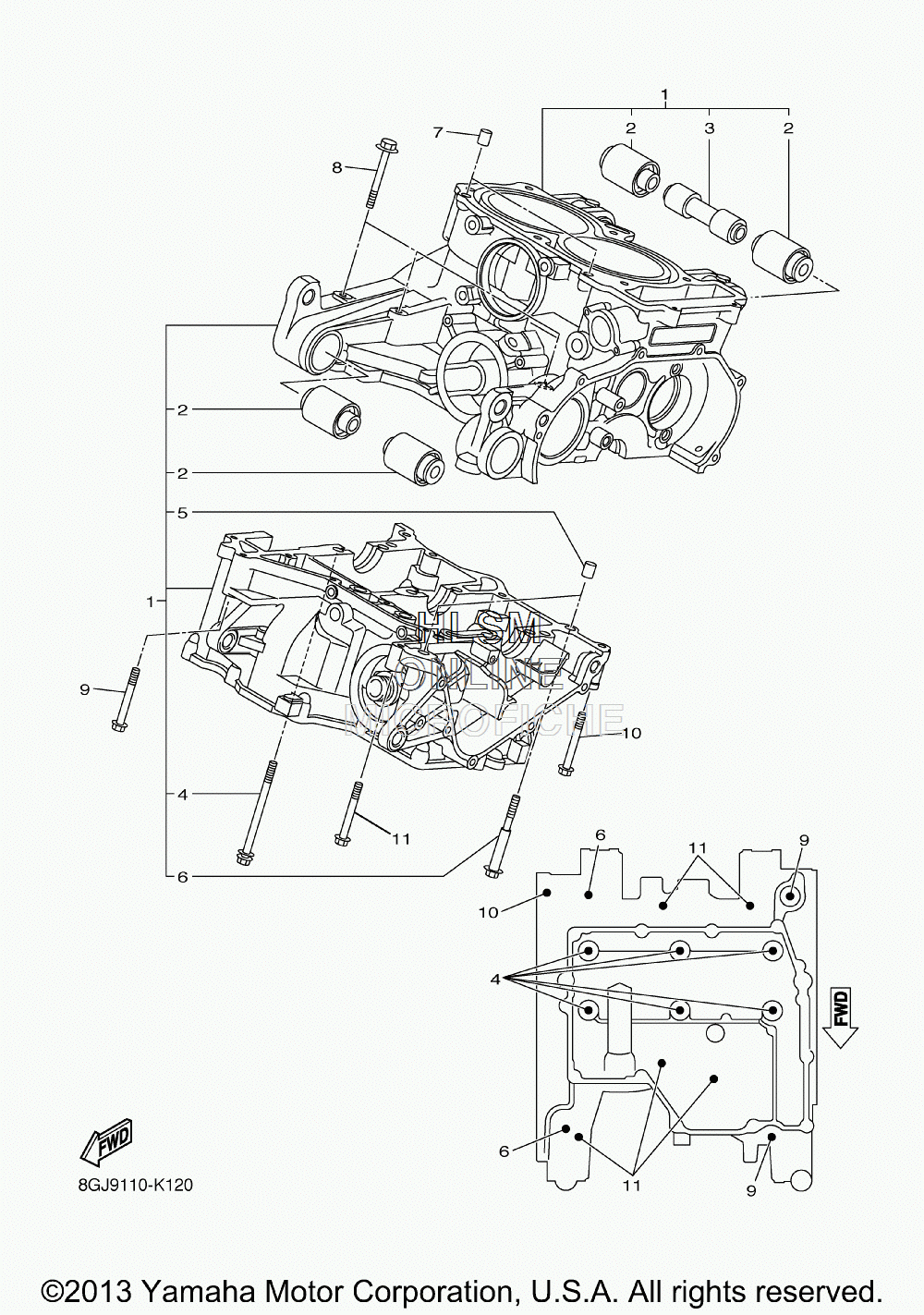

CRANKCASE ASSY для Yamaha VENTURE MULTIPURPOSE - 2014 года выпуска
-
№АртикулНазвание
-
18GN-15100-08-00 CRANKCASE ASSYCRANKCASE ASSY
-
28GC-2139X-00-00 ...DAMPER...DAMPER
-
38GC-21459-00-00 ...SPACER...SPACER
-
490119-09004-00 ...BOLT, WITH WASHER...BOLT, WITH WASHER
-
599530-10014-00 ...PIN, DOWEL...PIN, DOWEL
-
690109-06100-00 ...BOLT...BOLT
-
799530-10114-00 PIN, DOWELPIN, DOWEL
-
895812-06070-00 BOLT, FLANGEBOLT, FLANGE
-
995812-06050-00 BOLT, FLANGEBOLT, FLANGE
-
1090105-06095-00 BOLT, FLANGEBOLT, FLANGE
-
1195812-06035-00 BOLT, FLANGEBOLT, FLANGE
