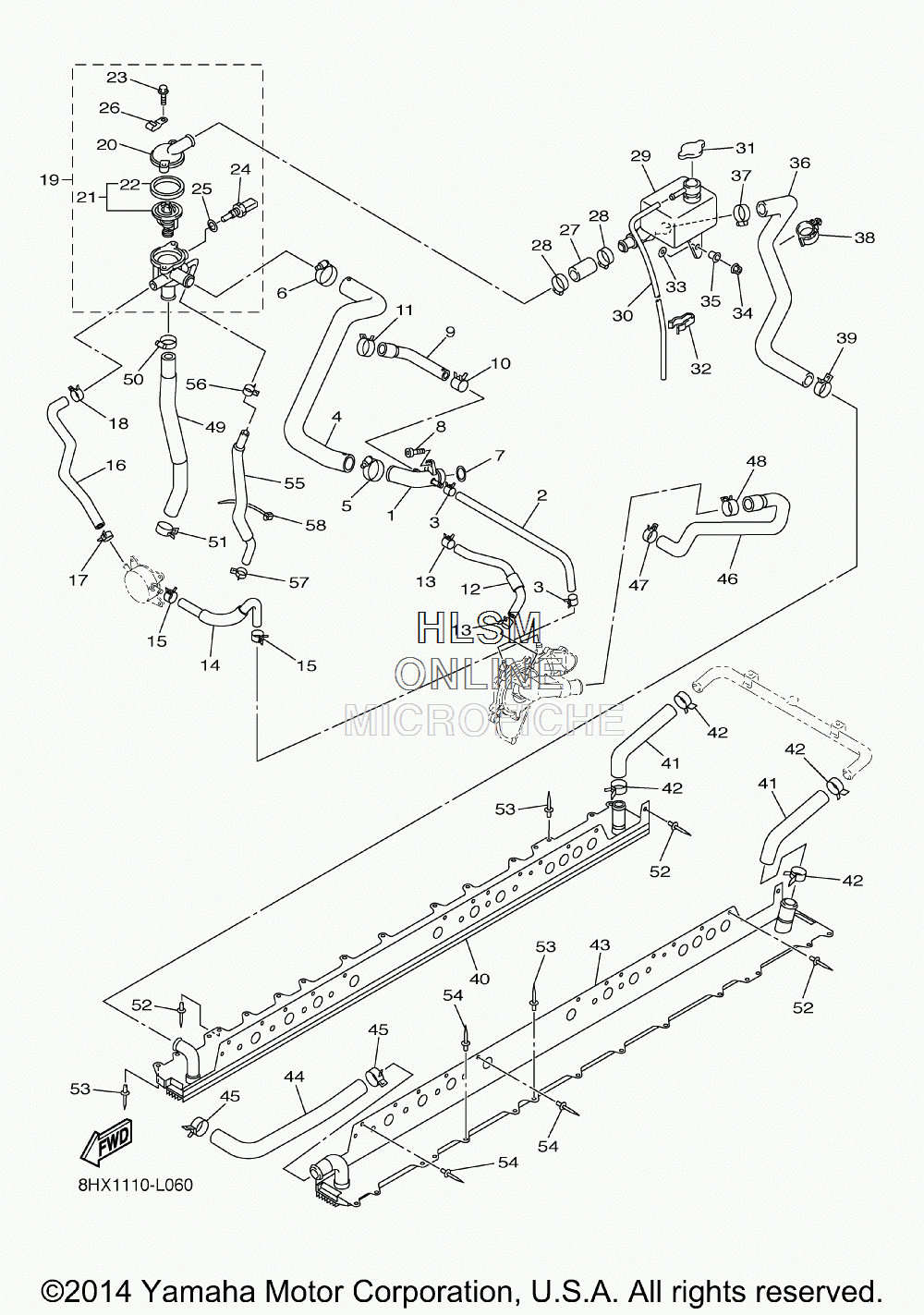

COOLING SYSTEM для Yamaha RS VENTURE GT - 2015 года выпуска
-
№АртикулНазвание
-
18HF-12482-00-00 PIPE 2PIPE 2
-
28GL-12485-00-00 PIPE 5PIPE 5
-
390467-110A2-00 CLIPCLIP
-
48HF-1243E-00-00 HOSE 2HOSE 2
-
590450-35001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
690450-35001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
793210-235A1-00 O-RINGO-RING
-
891312-06016-00 BOLTBOLT
-
98HF-12577-00-00 HOSE 2HOSE 2
-
1090467-110A2-00 CLIPCLIP
-
1190467-120A5-00 CLIPCLIP
-
128GL-12578-00-00 HOSE 3HOSE 3
-
1390467-110A2-00 CLIPCLIP
-
148ES-12588-00-00 HOSE 5HOSE 5
-
1590467-17089-00 CLIPCLIP
-
168GM-12589-00-00 HOSE 6HOSE 6
-
1790467-17089-00 CLIPCLIP
-
1890467-17089-00 CLIPCLIP
-
198FP-12580-30-00 JOINT ASSYJOINT ASSY
-
208FP-12413-00-00 ...COVER, THERMOSTAT...COVER, THERMOSTAT
-
218FP-12410-00-00 ...THERMOSTAT ASSY...THERMOSTAT ASSY
-
228FP-12412-00-00 ......SEAL, THERMOSTAT......SEAL, THERMOSTAT
-
2395022-06020-00 ...BOLT, FLANGE...BOLT, FLANGE
-
245YP-85790-00-00 ...THERMOSENSOR ASSY...THERMOSENSOR ASSY
-
2590201-12790-00 ...WASHER, PLATE...WASHER, PLATE
-
2690465-06M28-00 ...CLAMP...CLAMP
-
278FP-1243F-00-00 HOSE,3HOSE,3
-
2890450-35001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
298HX-1249B-00-00 TANK, RESERVETANK, RESERVE
-
3090445-08007-00 HOSEHOSE
-
3122W-12462-00-00 CAP, RADIATORCAP, RADIATOR
-
3290464-15065-00 CLAMPCLAMP
-
3390201-06036-00 WASHER, PLATEWASHER, PLATE
-
3495602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
3590387-06024-00 COLLARCOLLAR
-
368FA-1244G-01-00 HOSE, 4HOSE, 4
-
3790450-35001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
3890464-32002-00 CLAMPCLAMP
-
3990467-28046-00 CLIPCLIP
-
408ET-1240F-01-00 HEAT EXCHANGERHEAT EXCHANGER
-
418FA-12476-00-00 PIPE 6PIPE 6
-
4290467-28046-00 CLIPCLIP
-
438ET-1240E-01-00 HEAT EXCHANGERHEAT EXCHANGER
-
448FA-12477-00-00 PIPE 7PIPE 7
-
4590467-28046-00 CLIPCLIP
-
468ES-1248A-00-00 PIPE 8PIPE 8
-
4790467-28046-00 CLIPCLIP
-
4890467-310A0-00 CLIPCLIP
-
498HF-1248E-00-00 PIPE 9PIPE 9
-
5090450-35001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
5190467-28046-00 CLIPCLIP
-
5290267-47195-00 RIVET, BLIND (4.7X16.4 YELLOW)RIVET, BLIND (4.7X16.4 YELLOW)
-
5390267-48023-00 RIVET, BLIND (4.8X12.1 YELLOW)RIVET, BLIND (4.8X12.1 YELLOW)
-
5490267-48177-00 RIVET, BLIND (4.8X14 YELLOW)RIVET, BLIND (4.8X14 YELLOW)
-
558FA-12579-00-00 HOSE 4HOSE 4
-
5690467-11090-00 CLIPCLIP
-
5790467-11044-00 CLIPCLIP
-
5890464-13073-00 CLAMPCLAMP
