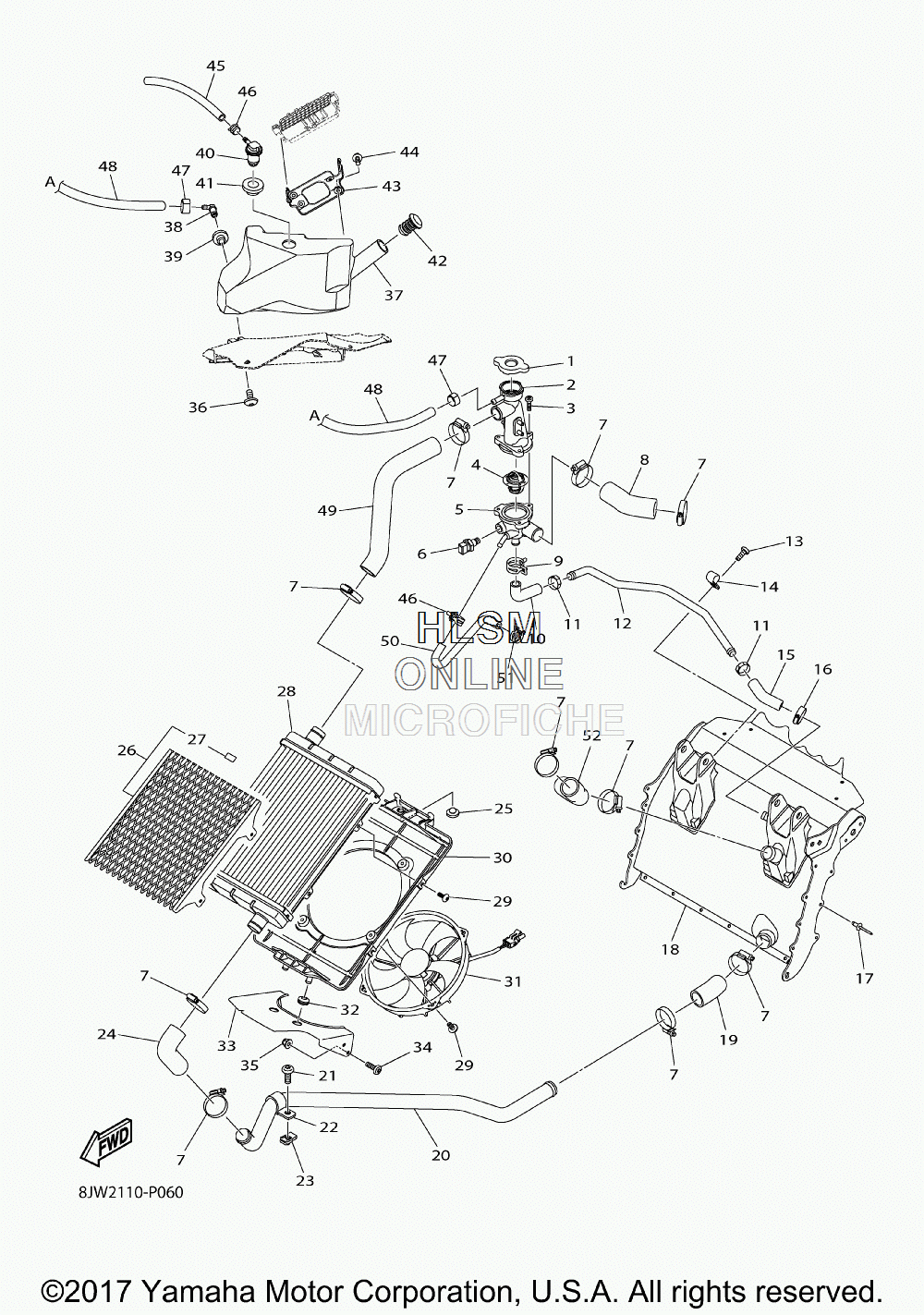

COOLING SYSTEM для Yamaha SRVIPER L TX LE 1.25 - 2015 года выпуска
-
№АртикулНазвание
-
18JP-E2462-00-00 CAP, RADIATORCAP, RADIATOR
-
28JP-E2413-00-00 COVER, THERMOSTATCOVER, THERMOSTAT
-
38JP-RA244-00-00 SCREW, M5X0.8X20SCREW, M5X0.8X20
-
48JP-E2410-00-00 THERMOSTAT ASSYTHERMOSTAT ASSY
-
58JP-E2417-01-00 HOUSING, THERMOSTATHOUSING, THERMOSTAT
-
68JP-H5790-00-00 THERMOSENSOR ASSYTHERMOSENSOR ASSY
-
78JP-RAB29-00-00 CLAMP, 26CLAMP, 26
-
88JP-E243F-00-00 HOSE, 3HOSE, 3
-
98JP-RAB15-00-00 CLAMP, 13CLAMP, 13
-
108JP-E243A-00-00 HOSE 1HOSE 1
-
118JP-RAB09-00-00 CLAMP, 7CLAMP, 7
-
128JP-E2481-00-00 PIPE 1PIPE 1
-
138JP-RA269-00-00 SCREW, M6X12SCREW, M6X12
-
148JP-RAB23-00-00 CLAMP, 21CLAMP, 21
-
158JP-E243E-00-00 HOSE 2HOSE 2
-
168JP-F1823-00-00 CLAMP, HOSECLAMP, HOSE
-
178JP-RA518-00-00 RIVET, 9 (OPT)RIVET, 9 (OPT)
-
178JP-RA520-00-00 RIVET, 11 (OPT)RIVET, 11 (OPT)
-
188JP-E2440-00-00 HEAT EXCHANGER ASSYHEAT EXCHANGER ASSY
-
198JP-E244J-00-00 HOSE 6HOSE 6
-
208JP-E2482-00-00 PIPE 2PIPE 2
-
218JP-RA256-00-00 SCREW, M6X1.0X16SCREW, M6X1.0X16
-
228JP-RAB05-00-00 CLAMP, 3CLAMP, 3
-
238JP-RA354-00-00 NUT, CLIP M6NUT, CLIP M6
-
248JP-E244H-00-00 HOSE 5HOSE 5
-
258JP-E2465-00-00 DAMPER, RADIATORDAMPER, RADIATOR
-
268JP-E240J-01-00 RADIATOR COVER ASSY 1RADIATOR COVER ASSY 1
-
278JP-E2431-00-00 ...PLATE, WEAR...PLATE, WEAR
-
288JP-E2461-00-00 RADIATOR COMPRADIATOR COMP
-
298JP-RA241-00-00 SCREW, M5X0.8X12SCREW, M5X0.8X12
-
308JP-E2467-00-00 COVER, RADIATORCOVER, RADIATOR
-
318JP-E2405-00-00 BLOWER ASSYBLOWER ASSY
-
328JP-E5365-00-00 GROMMETGROMMET
-
338JP-E2464-00-00 STAY, RADIATORSTAY, RADIATOR
-
348JP-RA261-00-00 SCREW, M6X1.0X20SCREW, M6X1.0X20
-
358JM-RA322-00-00 NUT, FLANGE M6-1.0NUT, FLANGE M6-1.0
-
368JP-RA254-00-00 SCREW, M6X1.0X12SCREW, M6X1.0X12
-
378JP-E249B-00-00 TANK, RESERVETANK, RESERVE
-
388JP-F1828-00-00 ELBOWELBOW
-
398JP-E5367-00-00 GROMMETGROMMET
-
408JP-F4362-00-00 VALVE, CHECK 1VALVE, CHECK 1
-
418JP-E5366-00-00 GROMMETGROMMET
-
428JP-F1876-00-00 CAP, RECOVERY TANKCAP, RECOVERY TANK
-
438JP-E244E-00-00 BRACKET 1BRACKET 1
-
448JP-RA177-00-00 BOLT, FLANGE M5X0.8X12BOLT, FLANGE M5X0.8X12
-
458JM-RA902-00-00 HOSE, 13 (25 FEET)HOSE, 13 (25 FEET)
-
468JM-RAC01-00-00 CLIP, 2CLIP, 2
-
478JP-RAB08-00-00 CLAMP, 6CLAMP, 6
-
488JP-RA912-00-00 HOSE, 8HOSE, 8
-
498JP-E244G-00-00 HOSE, 4HOSE, 4
-
508JP-E2577-00-00 HOSE 2HOSE 2
-
518JP-RAB14-00-00 CLAMP, 12CLAMP, 12
-
528JP-E2576-00-00 HOSE 1HOSE 1
