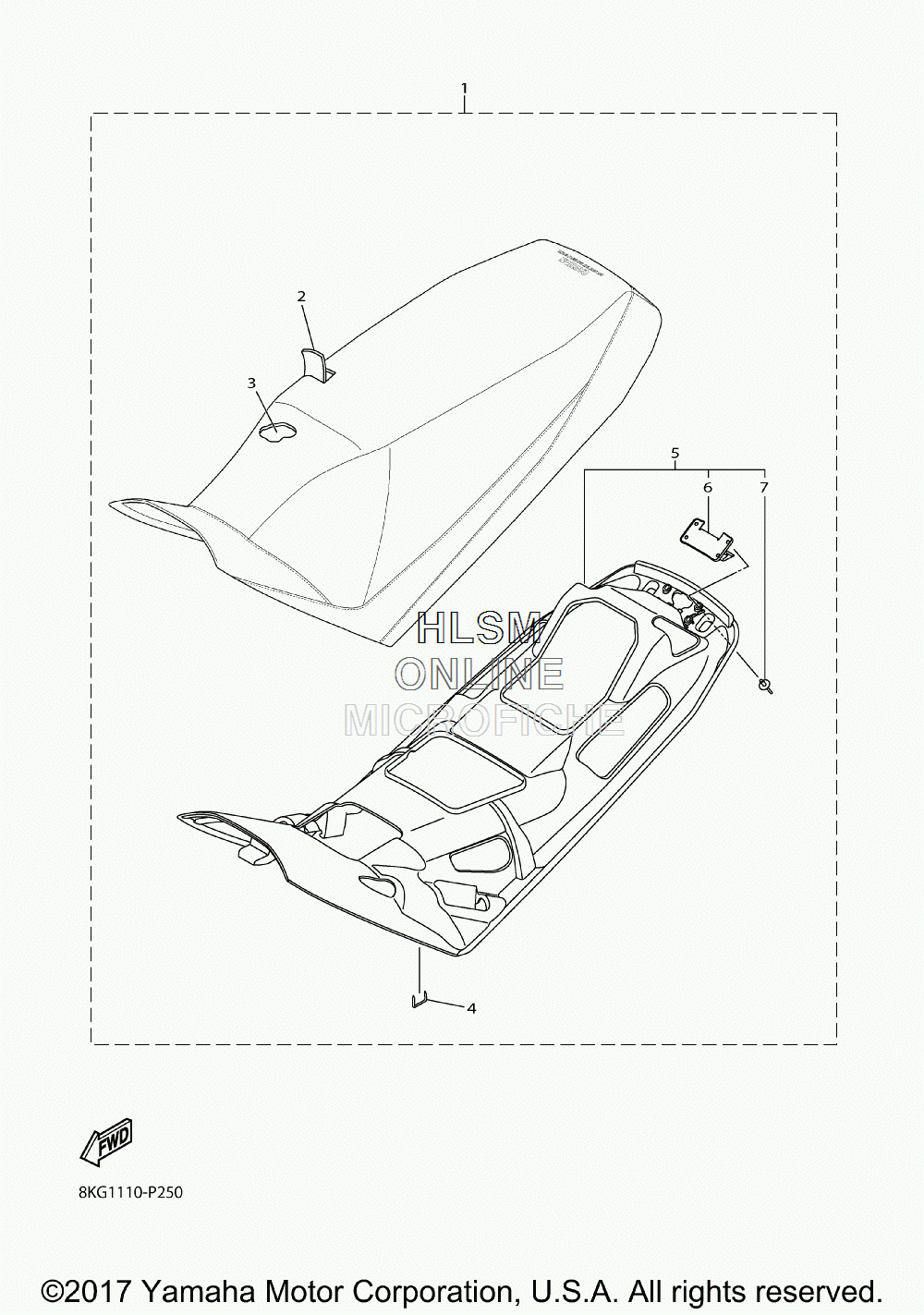

SEAT ASSY для Yamaha SRVIPER M TX 153 - 2015 года выпуска
-
№АртикулНазвание
-
18KG-F4710-00-00 SINGLE SEAT ASSYSINGLE SEAT ASSY
-
28KG-F470F-00-00 ...SEAT COVER COMP....SEAT COVER COMP.
-
38JR-F4713-00-00 ...CUSHION...CUSHION
-
48JM-F473U-00-00 ...STAPLE...STAPLE
-
58JP-F470E-00-00 ...BOTTOM PLATE COMP....BOTTOM PLATE COMP.
-
68JP-F475H-00-00 ......BRACKET, SEAT LEVER 1......BRACKET, SEAT LEVER 1
-
78JP-RA523-00-00 ......RIVET, 14......RIVET, 14
