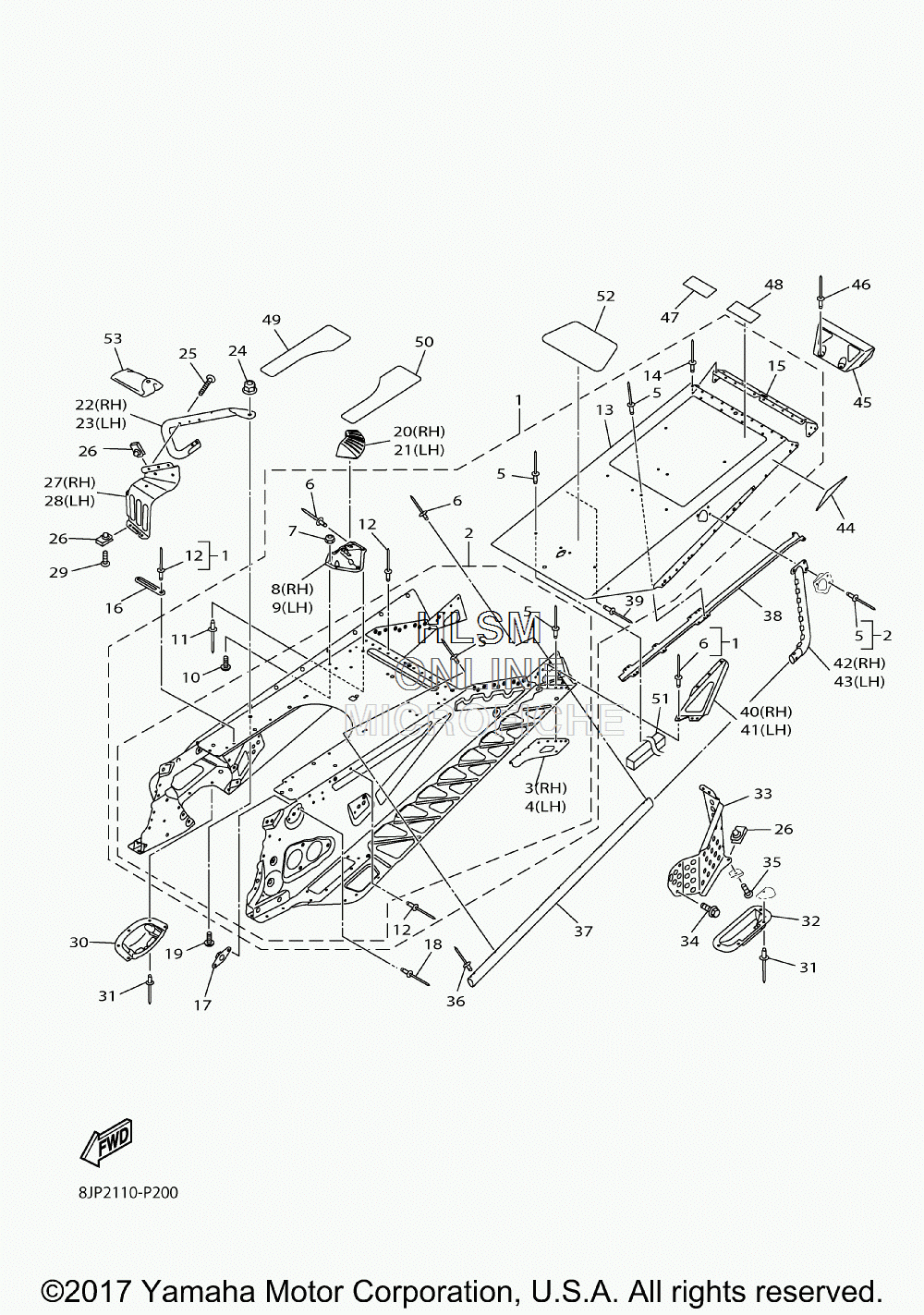

TUNNEL EXTENSION ASSEMBLY для Yamaha SRVIPER R TX DX - 2015 года выпуска
-
№АртикулНазвание
-
18JW-F1950-30-00 REAR FRAME COMP. (VRC1 - VIVID RED)REAR FRAME COMP. (VRC1 - VIVID RED)
-
18JW-F1950-00-00 REAR FRAME COMP. (YB - YAMAHA BLACK)REAR FRAME COMP. (YB - YAMAHA BLACK)
-
28JW-F1911-30-00 ......PANEL, FRAME (VRC1 - VIVID RED)......PANEL, FRAME (VRC1 - VIVID RED)
-
28JW-F1911-00-00 ......PANEL, FRAME (YB - YAMAHA BLACK)......PANEL, FRAME (YB - YAMAHA BLACK)
-
38JW-F1954-30-00 .........BRACKET, REAR TRACK SUS (VRC1 - VIVID RED).........BRACKET, REAR TRACK SUS (VRC1 - VIVID RED)
-
38JW-F1954-00-00 .........BRACKET, REAR TRACK SUS (YB - YAMAHA BLACK).........BRACKET, REAR TRACK SUS (YB - YAMAHA BLACK)
-
48JW-F1944-30-00 .........BRACKET, REAR TRACK SUS (VRC1 - VIVID RED).........BRACKET, REAR TRACK SUS (VRC1 - VIVID RED)
-
48JW-F1944-00-00 .........BRACKET, REAR TRACK SUS (YB - YAMAHA BLACK).........BRACKET, REAR TRACK SUS (YB - YAMAHA BLACK)
-
58JP-RA518-00-00 ......RIVET, 9 (VRC1 - VIVID RED)......RIVET, 9 (VRC1 - VIVID RED)
-
58JP-RA520-00-00 ......RIVET, 11 (YB - YAMAHA BLACK)......RIVET, 11 (YB - YAMAHA BLACK)
-
68JP-RA527-00-00 ...RIVET, 3/16...RIVET, 3/16
-
78JP-RA370-00-00 ...NUT, HEX. LOCKING...NUT, HEX. LOCKING
-
88JW-F115M-30-00 ...BRACKET, MEMBER 2 (VRC1 - VIVID RED)...BRACKET, MEMBER 2 (VRC1 - VIVID RED)
-
88JW-F115M-00-00 ...BRACKET, MEMBER 2 (YB - YAMAHA BLACK)...BRACKET, MEMBER 2 (YB - YAMAHA BLACK)
-
98JW-F115L-30-00 ...BRACKET, MEMBER 1 (VRC1 - VIVID RED)...BRACKET, MEMBER 1 (VRC1 - VIVID RED)
-
98JW-F115L-00-00 ...BRACKET, MEMBER 1 (YB - YAMAHA BLACK)...BRACKET, MEMBER 1 (YB - YAMAHA BLACK)
-
108JP-RA239-00-00 ...SCREW, 5...SCREW, 5
-
118JP-RA528-00-00 ...RIVET, 3/16...RIVET, 3/16
-
128JP-RA517-00-00 ...RIVET, 8 (VRC1 - VIVID RED)...RIVET, 8 (VRC1 - VIVID RED)
-
128JP-RA529-00-00 ...RIVET, 17 (YB - YAMAHA BLACK)...RIVET, 17 (YB - YAMAHA BLACK)
-
138JW-F1912-30-00 ......PANEL, SUB FRAME 1 (VRC1 - VIVID RED)......PANEL, SUB FRAME 1 (VRC1 - VIVID RED)
-
138JW-F1912-00-00 ......PANEL, SUB FRAME 1 (YB - YAMAHA BLACK)......PANEL, SUB FRAME 1 (YB - YAMAHA BLACK)
-
148JP-RA514-00-00 ...RIVET, 5 (VRC1 - VIVID RED)...RIVET, 5 (VRC1 - VIVID RED)
-
148JP-RA530-00-00 ...RIVET, 18 (YB - YAMAHA BLACK)...RIVET, 18 (YB - YAMAHA BLACK)
-
158JW-F1923-30-00 ...REINEFORCEMENT, FRAME REAR 1 (VRC1 - VIVID RED)...REINEFORCEMENT, FRAME REAR 1 (VRC1 - VIVID RED)
-
158JW-F1923-00-00 ...REINFORCEMENT, FRAME REAR 1 (YB - YAMAHA BLACK)...REINFORCEMENT, FRAME REAR 1 (YB - YAMAHA BLACK)
-
168JP-RAB22-00-00 CLAMP, 20CLAMP, 20
-
178JP-F1919-00-00 BRACKETBRACKET
-
188JP-RA519-00-00 RIVET, 10 (VRC1 - VIVID RED)RIVET, 10 (VRC1 - VIVID RED)
-
188JP-RA521-00-00 RIVET, 12 (YB - YAMAHA BLACK)RIVET, 12 (YB - YAMAHA BLACK)
-
198JP-RA272-00-00 SCREW, M8X1.25X20SCREW, M8X1.25X20
-
208JP-F2556-00-00 SUPPORT, FUEL TANK 2SUPPORT, FUEL TANK 2
-
218JP-F2555-00-00 SUPPORT, FUEL TANK 1SUPPORT, FUEL TANK 1
-
228JP-F192E-00-00 REINFORCEMENT, FRAME (YB - YAMAHA BLACK)REINFORCEMENT, FRAME (YB - YAMAHA BLACK)
-
228JW-F192E-30-00 REINFORCEMENT, FRAME (VRC1 - VIVID RED)REINFORCEMENT, FRAME (VRC1 - VIVID RED)
-
238JP-F1929-00-00 REINFORCEMENT, FRAME SIDE (YB - YAMAHA BLACK)REINFORCEMENT, FRAME SIDE (YB - YAMAHA BLACK)
-
238JW-F1929-30-00 REINFORCEMENT, FRAME SIDE (VRC1 - VIVID RED)REINFORCEMENT, FRAME SIDE (VRC1 - VIVID RED)
-
248JM-RA301-00-00 NUT, SELF-LOCKING M8-1.25NUT, SELF-LOCKING M8-1.25
-
258JP-RA247-00-00 SCREW, M5X0.8X35SCREW, M5X0.8X35
-
268JP-RA353-00-00 NUT, CLIP M5NUT, CLIP M5
-
278JW-F1996-30-00 REINFORCEMENT SUB FRAME FR 2 (VRC1 - VIVID RED)REINFORCEMENT SUB FRAME FR 2 (VRC1 - VIVID RED)
-
278JW-F1996-00-00 REINFORCEMENT SUB FRAME FRONT 2 (YB - YAMAHA BLACK)REINFORCEMENT SUB FRAME FRONT 2 (YB - YAMAHA BLACK)
-
288JW-F1995-30-00 REINFORCEMENT SUB FRAME FR 1 (VRC1 - VIVID RED)REINFORCEMENT SUB FRAME FR 1 (VRC1 - VIVID RED)
-
288JW-F1995-00-00 REINFORCEMENT SUB FRAME FRONT 1 (YB - YAMAHA BLACK)REINFORCEMENT SUB FRAME FRONT 1 (YB - YAMAHA BLACK)
-
298JP-RA251-00-00 SCREW, M5X1.0X16SCREW, M5X1.0X16
-
308JP-F2147-00-00 PROTECTOR, CHAINPROTECTOR, CHAIN
-
318JP-RA523-00-00 RIVET, 14RIVET, 14
-
328JP-F5717-00-00 PROTECTOR, DISC BRAKEPROTECTOR, DISC BRAKE
-
338JW-F5718-30-00 PROTECTOR, DISC BRAKE (VRC1 - VIVID RED)PROTECTOR, DISC BRAKE (VRC1 - VIVID RED)
-
338JW-F5718-00-00 PROTECTOR, DISC BRAKE (YB - YAMAHA BLACK)PROTECTOR, DISC BRAKE (YB - YAMAHA BLACK)
-
348JP-RA179-00-00 BOLT, FLANGE M6X1.0X12BOLT, FLANGE M6X1.0X12
-
358JP-RA244-00-00 SCREW, M5X0.8X20SCREW, M5X0.8X20
-
368JP-RA526-00-00 RIVET, 3/16RIVET, 3/16
-
378JW-F1926-30-00 REINFORCEMENT, FOOTREST 1 (VRC1 - VIVID RED)REINFORCEMENT, FOOTREST 1 (VRC1 - VIVID RED)
-
378JW-F1926-00-00 REINFORCEMENT, FOOTREST 1 (YB - YAMAHA BLACK)REINFORCEMENT, FOOTREST 1 (YB - YAMAHA BLACK)
-
388JP-H2589-00-00 PROTECTER, WIRE HARNESSPROTECTER, WIRE HARNESS
-
398JP-RA532-00-00 RIVET, 20RIVET, 20
-
408JW-F1135-30-00 GUSSET (VRC1 - VIVID RED)GUSSET (VRC1 - VIVID RED)
-
408JW-F1135-00-00 GUSSET (YB - YAMAHA BLACK)GUSSET (YB - YAMAHA BLACK)
-
418JW-F1134-30-00 GUSSET (VRC1 - VIVID RED)GUSSET (VRC1 - VIVID RED)
-
418JW-F1134-00-00 GUSSET (YB - YAMAHA BLACK)GUSSET (YB - YAMAHA BLACK)
-
428JW-F1137-30-00 GUSSET (VRC1 - VIVID RED)GUSSET (VRC1 - VIVID RED)
-
428JW-F1137-00-00 GUSSET (YB - YAMAHA BLACK)GUSSET (YB - YAMAHA BLACK)
-
438JW-F1136-30-00 GUSSET (VRC1 - VIVID RED)GUSSET (VRC1 - VIVID RED)
-
438JW-F1136-00-00 GUSSET (YB - YAMAHA BLACK)GUSSET (YB - YAMAHA BLACK)
-
448JP-F151A-00-00 LABEL 1LABEL 1
-
458JW-F117E-10-00 BRACKET, TAILLIGHT (YB - YAMAHA BLACK)BRACKET, TAILLIGHT (YB - YAMAHA BLACK)
-
458JW-F117E-40-00 BRACKET, TAILLIGHT (VRC1 - VIVID RED)BRACKET, TAILLIGHT (VRC1 - VIVID RED)
-
468JP-RA517-00-00 RIVET, 8RIVET, 8
-
478JP-K7762-70-00 LABEL, WARNING 2 (ENGLISH)LABEL, WARNING 2 (ENGLISH)
-
488JP-K7762-S0-00 LABEL, WARNING 2 (FRENCH)LABEL, WARNING 2 (FRENCH)
-
498JP-F197C-00-00 PROTECTOR, FRAME 3PROTECTOR, FRAME 3
-
508JP-F197B-00-00 PROTECTOR, FRAMEPROTECTOR, FRAME
-
518JP-F1978-00-00 PROTECTOR, FRAMEPROTECTOR, FRAME
-
528JP-F4141-00-00 PROTECTOR, FUEL TANKPROTECTOR, FUEL TANK
-
538JP-F8100-00-00 TOOL KITTOOL KIT
