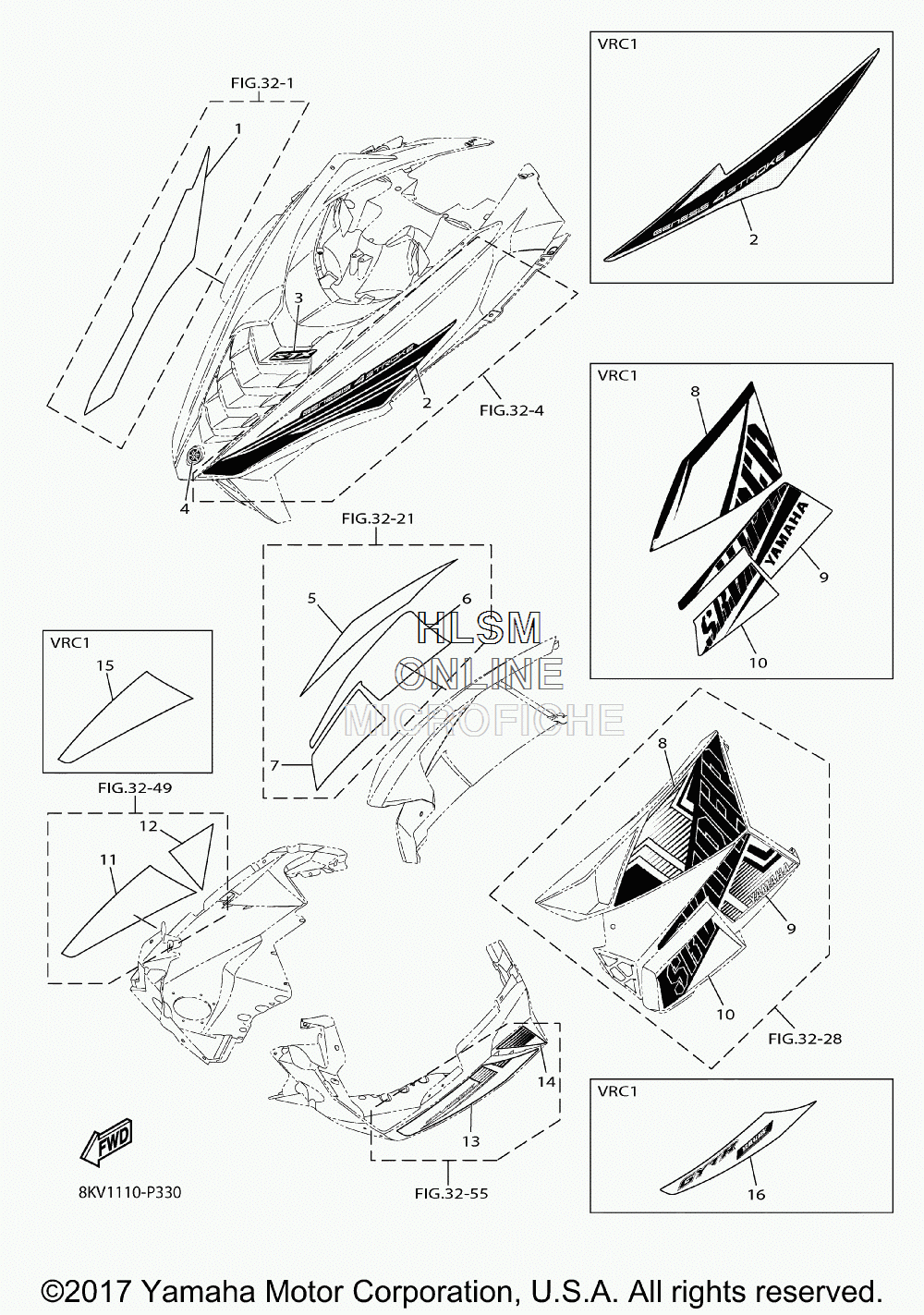

DECALS для Yamaha SRVIPER S TX DX - 2015 года выпуска
-
№АртикулНазвание
-
18JP-F199B-10-00 GRAPHIC 2 (YB - YAMAHA BLACK)GRAPHIC 2 (YB - YAMAHA BLACK)
-
18JP-F199B-20-00 GRAPHIC 2 (VRC1 - VIVID RED)GRAPHIC 2 (VRC1 - VIVID RED)
-
28JP-F199A-20-00 GRAPHIC 1 (VRC1 - VIVID RED)GRAPHIC 1 (VRC1 - VIVID RED)
-
28JP-F199A-10-00 GRAPHIC 1 (YB - YAMAHA BLACK)GRAPHIC 1 (YB - YAMAHA BLACK)
-
38KV-K711G-00-00 GRAPHIC 7GRAPHIC 7
-
45KM-2175B-00-00 TUNING FORK MARKTUNING FORK MARK
-
58JP-K711B-10-00 GRAPHIC 2 (YB - YAMAHA BLACK)GRAPHIC 2 (YB - YAMAHA BLACK)
-
58JP-K711B-20-00 GRAPHIC 2 (VRC1 - VIVID RED)GRAPHIC 2 (VRC1 - VIVID RED)
-
68JP-K711D-20-00 GRAPHIC 4 (VRC1 - VIVID RED)GRAPHIC 4 (VRC1 - VIVID RED)
-
68JP-K711D-10-00 GRAPHIC 4 (YB - YAMAHA BLACK)GRAPHIC 4 (YB - YAMAHA BLACK)
-
78JP-K711F-20-00 GRAPHIC 6 (VRC1 - VIVID RED)GRAPHIC 6 (VRC1 - VIVID RED)
-
78JP-K711F-10-00 GRAPHIC 6 (YB - YAMAHA BLACK)GRAPHIC 6 (YB - YAMAHA BLACK)
-
88JP-K711A-10-00 GRAPHIC 1 (YB - YAMAHA BLACK)GRAPHIC 1 (YB - YAMAHA BLACK)
-
88JP-K711A-20-00 GRAPHIC 1 (VRC1 - VIVID RED)GRAPHIC 1 (VRC1 - VIVID RED)
-
98JP-K711C-10-00 GRAPHIC 3 (YB - YAMAHA BLACK)GRAPHIC 3 (YB - YAMAHA BLACK)
-
98JP-K711C-20-00 GRAPHIC 3 (VRC1 - VIVID RED)GRAPHIC 3 (VRC1 - VIVID RED)
-
108JP-K711E-20-00 GRAPHIC 5 (VRC1 - VIVID RED)GRAPHIC 5 (VRC1 - VIVID RED)
-
108JP-K711E-10-00 GRAPHIC 5 (YB - YAMAHA BLACK)GRAPHIC 5 (YB - YAMAHA BLACK)
-
118JP-K717G-00-00 TAPE 3 (YB - YAMAHA BLACK)TAPE 3 (YB - YAMAHA BLACK)
-
128JP-K717H-00-00 TAPE 4 (YB - YAMAHA BLACK)TAPE 4 (YB - YAMAHA BLACK)
-
138JP-K717E-00-00 TAPE 1 (YB - YAMAHA BLACK)TAPE 1 (YB - YAMAHA BLACK)
-
148JP-K717F-00-00 TAPE 2 (YB - YAMAHA BLACK)TAPE 2 (YB - YAMAHA BLACK)
-
158JW-K755C-00-00 GRAPHIC 2 (VRC1 - VIVID RED)GRAPHIC 2 (VRC1 - VIVID RED)
-
168JW-K755B-00-00 GRAPHIC 1 (VRC1 - VIVID RED)GRAPHIC 1 (VRC1 - VIVID RED)
