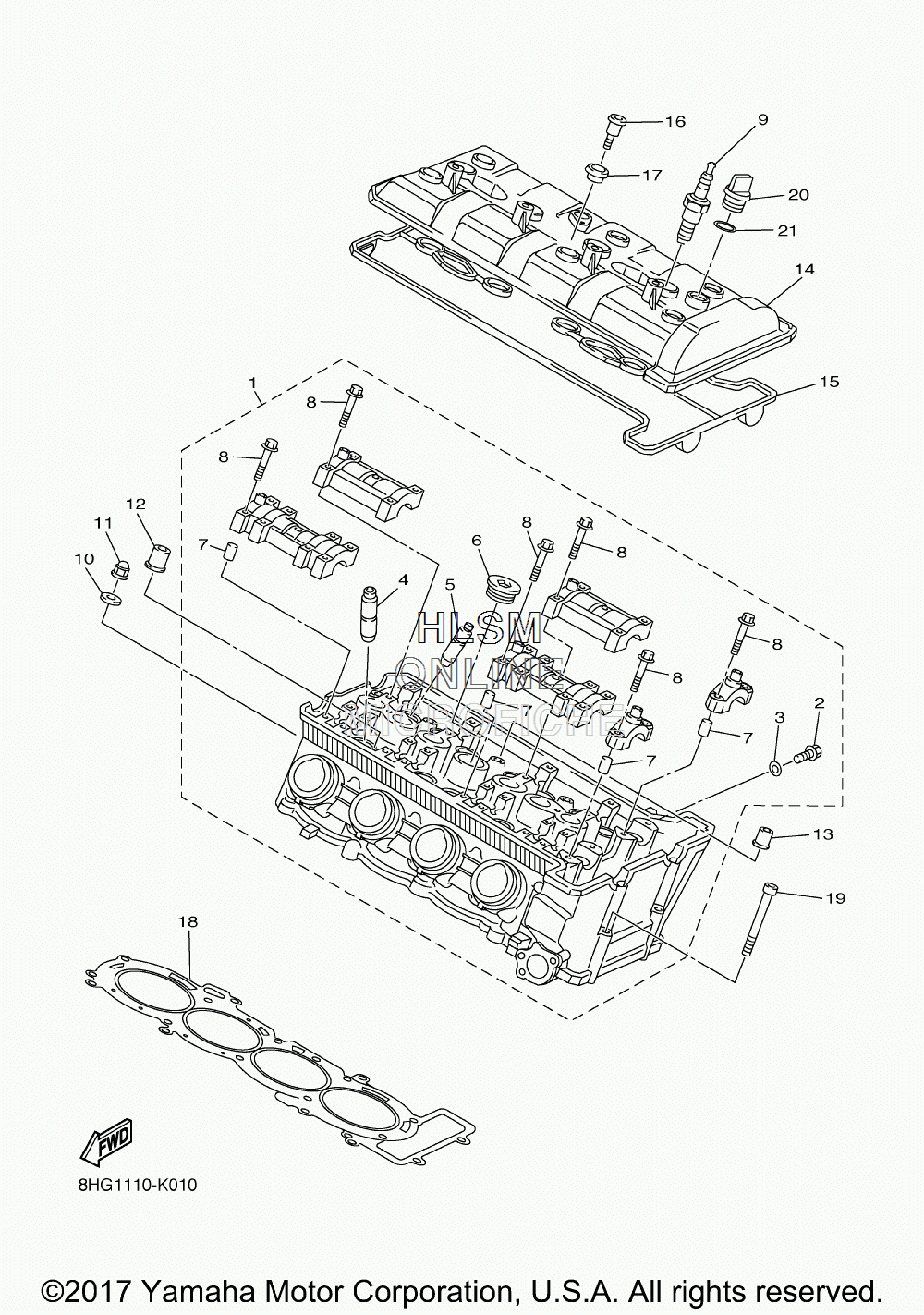

CYLINDER W/ HEAD ASSY для Yamaha APEX LE - 2016 года выпуска
-
№АртикулНазвание
-
18HG-11101-09-00 CYLINDER HEAD ASSYCYLINDER HEAD ASSY
-
295022-06012-00 ...BOLT, FLANGE...BOLT, FLANGE
-
390430-06014-00 ...GASKET...GASKET
-
43TJ-11133-10-00 ...GUIDE, VALVE...GUIDE, VALVE
-
58HG-11134-10-00 ...GUIDE, VALVE 2...GUIDE, VALVE 2
-
690340-27129-00 ...PLUG, STRAIGHT SCREW...PLUG, STRAIGHT SCREW
-
791808-16023-00 ...PIN, DOWEL...PIN, DOWEL
-
890105-06026-00 ...BOLT, FLANGE...BOLT, FLANGE
-
994702-00409-00 PLUG, SPARK (NGK CR9EB)PLUG, SPARK (NGK CR9EB)
-
1090201-10033-00 WASHER, PLATEWASHER, PLATE
-
1190176-10075-00 NUT, CROWNNUT, CROWN
-
1290179-10006-00 NUTNUT
-
1390179-10414-00 NUTNUT
-
148FP-11191-00-00 COVER, CYLINDER HEAD 1COVER, CYLINDER HEAD 1
-
158FP-11193-00-00 GASKET, HEAD COVER 1GASKET, HEAD COVER 1
-
1690109-066F0-00 BOLTBOLT
-
175VY-1111G-00-00 RUBBER, MOUNT 1RUBBER, MOUNT 1
-
188HG-11181-00-00 GASKET, CYLINDER HEAD 1GASKET, CYLINDER HEAD 1
-
1991312-06060-00 BOLTBOLT
-
203Y1-15363-10-00 PLUG, OILPLUG, OIL
-
2193210-19123-00 O-RINGO-RING
