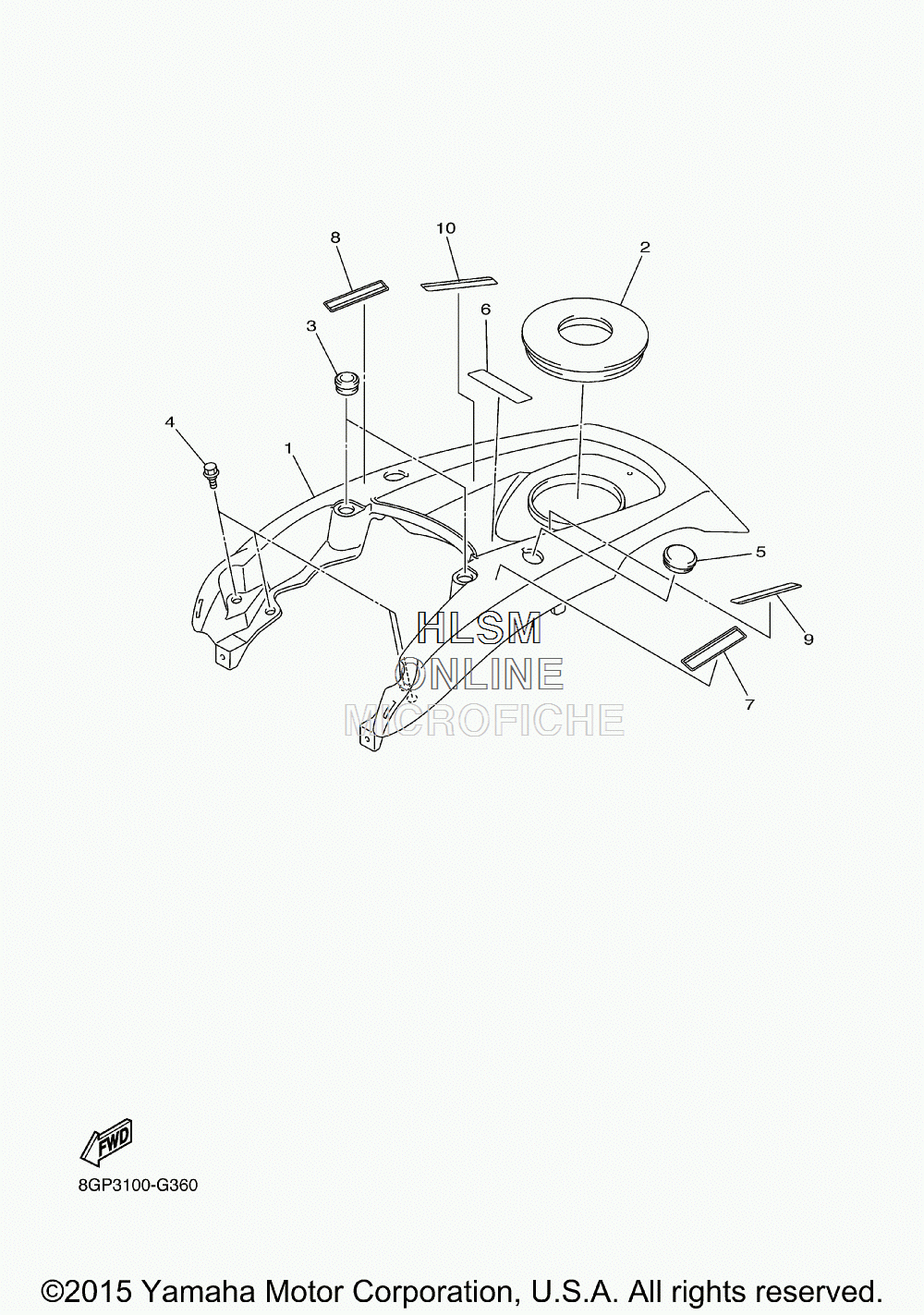

CONSOLE ASSY для Yamaha PHAZER MTX - 2016 года выпуска
-
№АртикулНазвание
-
18GC-77711-40-00 PANEL, INSTRUMENTPANEL, INSTRUMENT
-
28FP-77746-01-00 GROMMETGROMMET
-
390480-16278-00 GROMMETGROMMET
-
490109-06220-00 BOLTBOLT
-
590338-30256-00 PLUGPLUG
-
68GC-2415E-E0-00 LABEL, CAUTIONLABEL, CAUTION
-
78ET-2815K-00-00 LABEL, NOTICE WINDSHIELD 1LABEL, NOTICE WINDSHIELD 1
-
88ET-2815K-10-00 LABEL, NOTICE WINDSHIELD 1LABEL, NOTICE WINDSHIELD 1
-
98GC-77762-A0-00 LABEL, WARNING 2LABEL, WARNING 2
-
108GC-77762-B0-00 LABEL, WARNING 2LABEL, WARNING 2
