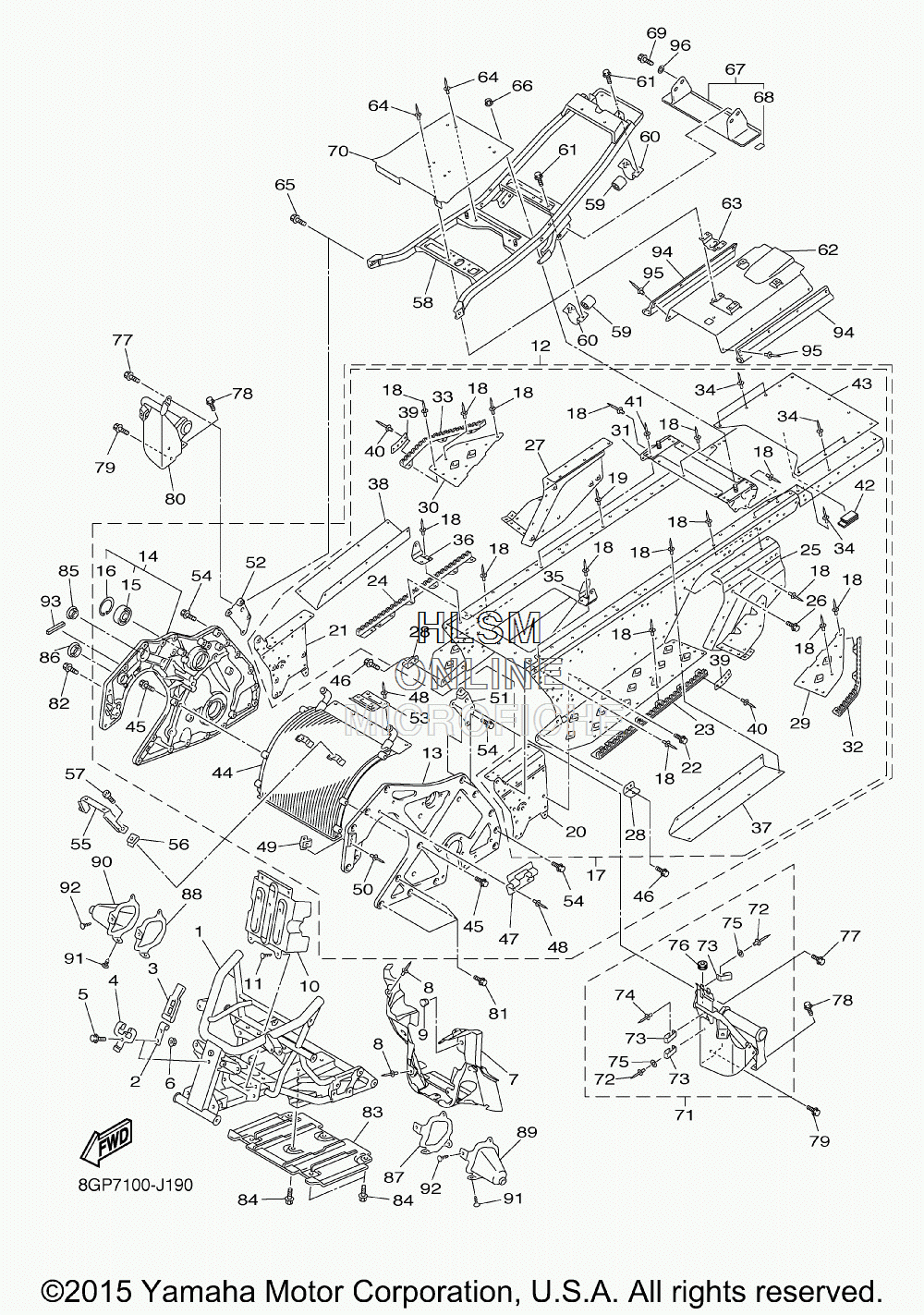

TUNNEL ASSEMBLY W/ LOWER NOSEPAN для Yamaha PHAZER XTX - 2016 года выпуска
-
№АртикулНазвание
-
18GK-21940-01-00 FRONT FRAME COMP.FRONT FRAME COMP.
-
28GC-2175V-00-00 BRACKET 3BRACKET 3
-
359V-21646-00-00 BANDBAND
-
48GC-2175W-00-00 BRACKET 4BRACKET 4
-
592017-05040-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
695702-05500-00 NUT, FLANGENUT, FLANGE
-
78GC-21912-01-00 PANEL, SUB FRAME 1PANEL, SUB FRAME 1
-
890267-48086-00 RIVET, BLIND (4.8X19 BLACK)RIVET, BLIND (4.8X19 BLACK)
-
990338-12192-00 PLUGPLUG
-
108GC-2195A-10-00 PROTECTOR, FRAME APROTECTOR, FRAME A
-
1190269-05003-00 RIVETRIVET
-
128GP-21950-40-00 REAR FRAME COMP.REAR FRAME COMP.
-
138GC-21991-00-00 ...REINF., PANEL FRAME 1...REINF., PANEL FRAME 1
-
148GK-21930-20-00 ...HOUSING, REINF SUB-ASSY (R.H)...HOUSING, REINF SUB-ASSY (R.H)
-
1593306-20511-00 ......BEARING......BEARING
-
1699009-52500-00 ......CIRCLIP......CIRCLIP
-
178GP-21950-49-00 ...REAR FRAME COMP....REAR FRAME COMP.
-
1890267-47195-00 ......RIVET, BLIND (4.7X16.4 YELLOW)......RIVET, BLIND (4.7X16.4 YELLOW)
-
1990267-48023-00 ......RIVET, BLIND (4.8X12.1 YELLOW)......RIVET, BLIND (4.8X12.1 YELLOW)
-
208GK-21943-00-00 ......BRACKET, MAIN TRACK 1......BRACKET, MAIN TRACK 1
-
218GK-21953-00-00 ......BRACKET, MAIN TRACK 2......BRACKET, MAIN TRACK 2
-
2295822-08012-00 ......BOLT, FLANGE......BOLT, FLANGE
-
238GC-21926-01-00 ......REINFORCEMENT, FOOTREST 1......REINFORCEMENT, FOOTREST 1
-
248GC-21936-01-00 ......REINFORCEMENT, FOOTREST 2......REINFORCEMENT, FOOTREST 2
-
258GK-21944-00-00 ......BRACKET, REAR TRACK SUSPENSION......BRACKET, REAR TRACK SUSPENSION
-
2695822-08014-00 ......BOLT, FLANGE......BOLT, FLANGE
-
278GK-21954-00-00 ......BRACKET, REAR TRACK SUSPENSION......BRACKET, REAR TRACK SUSPENSION
-
288GC-21967-00-00 ......PATCH 7......PATCH 7
-
298GC-27452-00-00 ......BRACKET, FOOTREST 1......BRACKET, FOOTREST 1
-
308GC-27462-00-00 ......BRACKET, FOOTREST 2......BRACKET, FOOTREST 2
-
318GK-21341-00-00 ......BRACKET, SEAT 1......BRACKET, SEAT 1
-
328GC-21927-01-00 ......REINFORCEMENT, REAR FOOTREST......REINFORCEMENT, REAR FOOTREST
-
338GC-21937-01-00 ......REINFORCEMENT, REAR FOOTREST......REINFORCEMENT, REAR FOOTREST
-
3490267-47195-00 ......RIVET, BLIND (4.7X16.4 YELL......RIVET, BLIND (4.7X16.4 YELL
-
358GC-21238-00-00 ......BRACKET......BRACKET
-
368GC-21239-00-00 ......BRACKET 2......BRACKET 2
-
378GC-21961-00-00 ......PATCH 1......PATCH 1
-
388GC-21962-00-00 ......PATCH 2......PATCH 2
-
398GC-21988-00-00 ......PATCH 8......PATCH 8
-
4090267-48010-00 ......RIVET, BLIND (4.8X12 YELLOW)......RIVET, BLIND (4.8X12 YELLOW)
-
4190267-47197-00 ......RIVET, BLIND (4.7X19.5 SILVER)......RIVET, BLIND (4.7X19.5 SILVER)
-
428GP-21567-00-00 ......TAPE, 2......TAPE, 2
-
438GP-21918-00-00 ......PANEL, SUB-FRAME 7......PANEL, SUB-FRAME 7
-
448GC-12440-00-00 ...HEAT EXCHANGER ASSY...HEAT EXCHANGER ASSY
-
4595822-08020-00 ...BOLT, FLANGE...BOLT, FLANGE
-
4690109-065G4-00 ...BOLT...BOLT
-
478GC-21973-00-00 ...HOOK...HOOK
-
4890267-47195-00 ...RIVET, BLIND (4.7X16.4 YELLOW)...RIVET, BLIND (4.7X16.4 YELLOW)
-
492TK-2177L-00-00 ...PLATE, SPRING...PLATE, SPRING
-
5090267-32192-00 ...RIVET, BLIND (3.2X13.8)...RIVET, BLIND (3.2X13.8)
-
518GC-21963-00-00 ...PATCH 3...PATCH 3
-
528GC-21964-00-00 ...PATCH 4...PATCH 4
-
538GC-2164G-00-00 ...STAY 2...STAY 2
-
5495022-08020-00 ...BOLT, FLANGE...BOLT, FLANGE
-
558GC-2164F-00-00 STAY 1STAY 1
-
5690183-06053-00 NUT, SPRINGNUT, SPRING
-
5791312-06012-00 BOLT, HEXT. SOCKET HEADBOLT, HEXT. SOCKET HEAD
-
588GK-21160-00-00 SEAT RAIL COMPSEAT RAIL COMP
-
598GC-14747-00-00 DAMPER, MUFFLERDAMPER, MUFFLER
-
608GC-21121-00-00 BRACKET, DAMPERBRACKET, DAMPER
-
6195822-06010-00 BOLT, FLANGEBOLT, FLANGE
-
628GC-2199H-10-00 SHIELD, HEATSHIELD, HEAT
-
638GC-1467H-00-00 BRACKET, SILENCER 1BRACKET, SILENCER 1
-
6490267-47195-00 RIVET, BLIND (4.7X16.4 YELLOW)RIVET, BLIND (4.7X16.4 YELLOW)
-
6595822-10016-00 BOLT, FLANGEBOLT, FLANGE
-
6695607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
678GC-24708-01-00 SEAT BRACKET ASSYSEAT BRACKET ASSY
-
688GC-77151-00-00 ...PAD 1...PAD 1
-
6995822-08020-00 BOLT, FLANGEBOLT, FLANGE
-
708GC-21917-00-00 PANEL, SUB FRAME 6PANEL, SUB FRAME 6
-
718GJ-21960-00-00 FOOTREST COMP. 1FOOTREST COMP. 1
-
7290267-48010-00 ...RIVET, BLIND (4.8X12 YELLOW)...RIVET, BLIND (4.8X12 YELLOW)
-
7390465-08368-00 ...CLAMP...CLAMP
-
7490267-48083-00 ...RIVET, BLIND (4.8X15.2 SILVER)...RIVET, BLIND (4.8X15.2 SILVER)
-
7590201-043H7-00 ...WASHER, PLATE...WASHER, PLATE
-
7690480-13163-00 ...GROMMET...GROMMET
-
7795822-08016-00 BOLT, FLANGEBOLT, FLANGE
-
7895022-06012-00 BOLT, FLANGEBOLT, FLANGE
-
7990105-06080-00 BOLT, FLANGEBOLT, FLANGE
-
808GJ-21970-00-00 FOOTREST COMP. 2FOOTREST COMP. 2
-
8195822-08020-00 BOLT, FLANGEBOLT, FLANGE
-
8290105-08190-00 BOLT, FLANGEBOLT, FLANGE
-
838GC-2193A-00-00 PROTECTORPROTECTOR
-
8490109-066G1-00 BOLTBOLT
-
8590480-27001-00 GROMMETGROMMET
-
8690480-40003-00 GROMMETGROMMET
-
878GC-2195E-00-00 PLATE, STEERING BRACKET 1PLATE, STEERING BRACKET 1
-
888GC-2195F-00-00 PLATE, STEERING BRACKET 2PLATE, STEERING BRACKET 2
-
898GC-2198F-00-00 COVER 1COVER 1
-
908GC-2198J-00-00 COVER 3COVER 3
-
9190269-05003-00 RIVETRIVET
-
9290269-05002-00 RIVETRIVET
-
938GL-77319-00-00 DAMPER 1DAMPER 1
-
948GC-21852-00-00 DAMPERDAMPER
-
9590267-50010-00 RIVET, BLIND (5X23.6)RIVET, BLIND (5X23.6)
-
9690201-08079-00 WASHER, PLATEWASHER, PLATE
