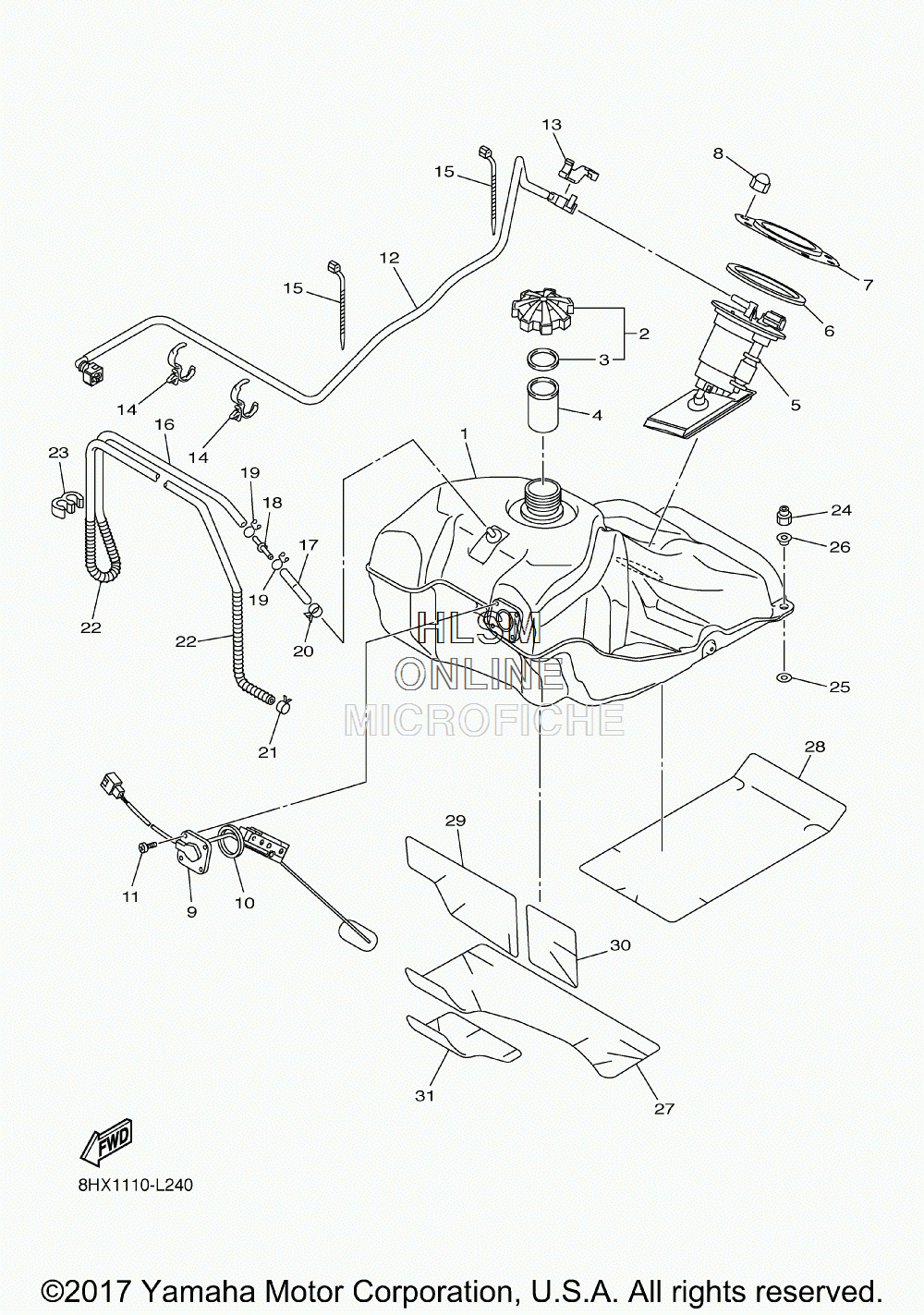

FUEL TANK ASSY для Yamaha RS VECTOR XTX 1.75 - 2016 года выпуска
-
№АртикулНазвание
-
18HG-24111-00-00 TANK, FUELTANK, FUEL
-
28FG-24610-01-00 CAP ASSYCAP ASSY
-
38HV-24641-00-00 ...GASKET, CAP 1...GASKET, CAP 1
-
48FP-24114-00-00 TUBE, FILLERTUBE, FILLER
-
58HG-13907-00-00 FUEL PUMP COMP.FUEL PUMP COMP.
-
68FP-24486-00-00 O-RINGO-RING
-
78FP-24491-00-00 BRACKET, FUEL PUMPBRACKET, FUEL PUMP
-
895302-06800-00 NUT, CROWNNUT, CROWN
-
98HG-85752-00-00 SENDER UNIT ASSY, FUEL METERSENDER UNIT ASSY, FUEL METER
-
1093210-41041-00 O-RINGO-RING
-
1198902-05008-00 SCREW, BINDSCREW, BIND
-
128HV-24311-00-00 PIPE, FUEL 1PIPE, FUEL 1
-
1390464-14004-00 CLAMPCLAMP
-
1490464-18246-00 CLAMPCLAMP
-
1590464-13077-00 CLAMPCLAMP
-
1691A20-05120-00 TUBE, FLEXIBLE VINYLTUBE, FLEXIBLE VINYL
-
178FR-24461-00-00 PIPE, JOINTPIPE, JOINT
-
188H8-24376-00-00 PIPE, JOINT 1PIPE, JOINT 1
-
1990467-08017-00 CLIPCLIP
-
2090467-09026-00 CLIPCLIP
-
2190467-09026-00 CLIPCLIP
-
2290501-08668-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
2390464-09M21-00 CLAMPCLAMP
-
2495702-08300-00 NUT, NYLONNUT, NYLON
-
2590201-08045-00 WASHER, PLATEWASHER, PLATE
-
2690387-081N1-00 COLLARCOLLAR
-
278HV-24141-00-00 PROTECTOR, FUEL TANKPROTECTOR, FUEL TANK
-
288HV-24595-00-00 PROTECTORPROTECTOR
-
298HV-2416F-00-00 INSULATOR, FUEL TANK 1INSULATOR, FUEL TANK 1
-
308HV-2416G-00-00 INSULATOR, FUEL TANK 2INSULATOR, FUEL TANK 2
-
318HF-2416F-00-00 INSULATOR, FUEL TANK 1INSULATOR, FUEL TANK 1
