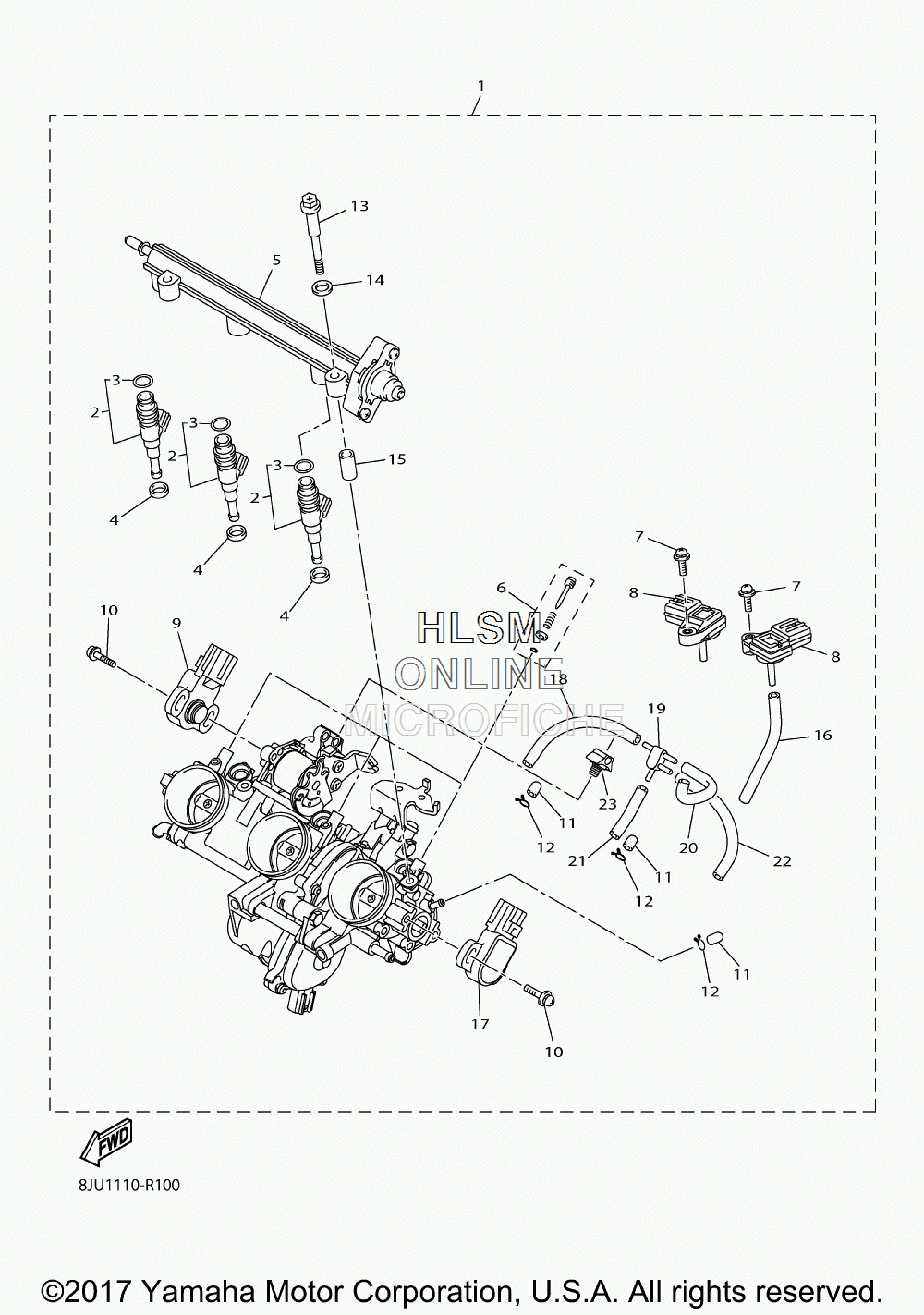

THROTTLE BODY ASSY для Yamaha RS VECTOR XTX LE - 2016 года выпуска
-
№АртикулНазвание
-
18JU-13750-00-00 THROTTLE BODY ASSYTHROTTLE BODY ASSY
-
28GC-13761-00-00 ...INJECTOR...INJECTOR
-
38GC-13769-00-00 ......O-RING......O-RING
-
48FP-13556-00-00 ...RUBBER, INJECTOR...RUBBER, INJECTOR
-
58HF-13930-00-00 ...PIPE INLET ASSEMBLY...PIPE INLET ASSEMBLY
-
68GL-14503-00-00 ...ADJUST SCREW SET...ADJUST SCREW SET
-
72C0-14216-00-00 ...SCREW...SCREW
-
82C0-82380-00-00 ...SENSOR, PRESSURE...SENSOR, PRESSURE
-
98JU-85884-00-00 ...ACCELERATOR SENSOR ASSY....ACCELERATOR SENSOR ASSY.
-
108CC-14216-10-00 ...SCREW...SCREW
-
11895-14169-00-00 ...CAP...CAP
-
128A7-14139-00-00 ...CLIP, PIPE...CLIP, PIPE
-
138GL-13573-00-00 ...BOLT 1...BOLT 1
-
148GL-13571-00-00 ...WASHER...WASHER
-
158GL-14534-00-00 ...COLLAR...COLLAR
-
165JW-14349-10-00 ...PIPE...PIPE
-
178JU-85885-00-00 ...THROTTLE SENSOR ASSY...THROTTLE SENSOR ASSY
-
182C0-13532-00-00 ...HOSE, VACUUM SENSING 3...HOSE, VACUUM SENSING 3
-
195PW-1410F-00-00 ...CONNECTOR...CONNECTOR
-
208FP-14349-00-00 ...PIPE...PIPE
-
218FP-14349-30-00 ...PIPE...PIPE
-
228JU-1410E-00-00 ...HOSE...HOSE
-
238JU-14261-00-00 ...HOLDER...HOLDER
Все узлы модели:
- BELT GUARD W/ TOOL BOX
- BRAKE ASSY
- BUMPER - FRONT AND REAR
- CAMSHAFT W/ CAMSHAFT CHAIN ASSY
- CHAINCASE - SPROCKET AND CHAINS (OPTION)
- CHAINCASE ASSY
- CLUTCH - DRIVE
- CLUTCH - DRIVEN W/ DRIVE AXLE
- CLUTCH - REPAIR KIT (OPTION)
- CLUTCH - TUNE-UP KIT (OPTION)
- CLUTCH - WEIGHTS AND SPRINGS (OPTION)
- CONSOLE ASSY
- COOLING SYSTEM
- CRANKCASE ASSY
- CRANKCASE COVER ASSY
- CRANKSHAFT W/ PISTON ASSY
- CYLINDER W/ HEAD ASSY
- DECALS
- DRIVE TRAIN ASSEMBLY
- ELECTRICAL - BATTERY ASSY
- ELECTRICAL - COIL, CDI, RECTIFIER, RELAYS AND SWITCHES
- ELECTRICAL - HEADLIGHT ASSY
- ELECTRICAL - INSTRUMENTS
- ELECTRICAL - MAGNETO ASSEMBLY
- ELECTRICAL - TAILLIGHT ASSY
- ENGINE MOUNTING
- EXHAUST SYSTEM
- FUEL TANK ASSY
- HANDLEBAR - CABLES AND GRIPS
- HANDLEBAR - SWITCHES AND LEVERS
- HANDLEBAR ASSY W/ STEERING ASSY
- HANDLEBAR PAD W/ STEERING GATE
- HOOD - WINDSHIELD ASSY
- HOOD ASSY
- INTAKE W/ AIR BOX ASSY - FUEL PUMP
- MODEL INFO - MANUALS
- OIL COOLER ASSY W/ OIL FILTER
- OIL PUMP ASSY
- OIL TANK ASSY
- REAR VIEW MIRROR ASSY (OPTION)
- REFLECTOR ASSY
- SEAT ASSY
- STARTER - ELECTRICAL STARTER ASSY
- STARTER - REDUCTION GEAR W/ CLUTCH ASSY
- SUSPENSION - FRONT W/ SKI ASSY
- SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK
- SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK 2
- • THROTTLE BODY ASSY
- TUNNEL ASSEMBLY W/ LOWER NOSEPAN
- VALVE ASSY
- WATER PUMP ASSY
