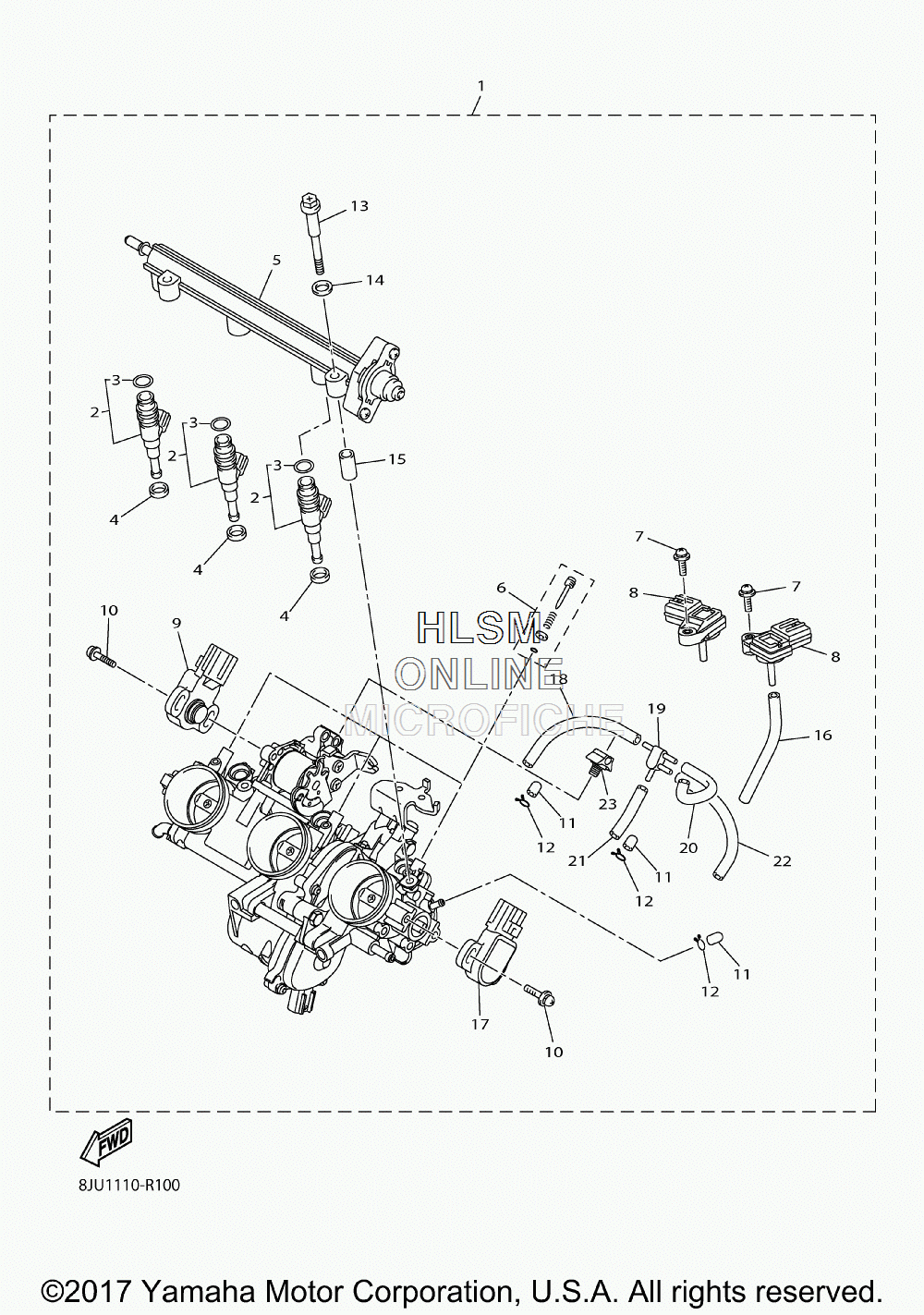

THROTTLE BODY ASSY для Yamaha RS VENTURE TF E-BAT - 2016 года выпуска
-
№АртикулНазвание
-
18JU-13750-00-00 THROTTLE BODY ASSYTHROTTLE BODY ASSY
-
28GC-13761-00-00 ...INJECTOR...INJECTOR
-
38GC-13769-00-00 ......O-RING......O-RING
-
48FP-13556-00-00 ...RUBBER, INJECTOR...RUBBER, INJECTOR
-
58HF-13930-00-00 ...PIPE INLET ASSEMBLY...PIPE INLET ASSEMBLY
-
68GL-14503-00-00 ...ADJUST SCREW SET...ADJUST SCREW SET
-
72C0-14216-00-00 ...SCREW...SCREW
-
82C0-82380-00-00 ...SENSOR, PRESSURE...SENSOR, PRESSURE
-
98JU-85884-00-00 ...ACCELERATOR SENSOR ASSY....ACCELERATOR SENSOR ASSY.
-
108CC-14216-10-00 ...SCREW...SCREW
-
11895-14169-00-00 ...CAP...CAP
-
128A7-14139-00-00 ...CLIP, PIPE...CLIP, PIPE
-
138GL-13573-00-00 ...BOLT 1...BOLT 1
-
148GL-13571-00-00 ...WASHER...WASHER
-
158GL-14534-00-00 ...COLLAR...COLLAR
-
165JW-14349-10-00 ...PIPE...PIPE
-
178JU-85885-00-00 ...THROTTLE SENSOR ASSY...THROTTLE SENSOR ASSY
-
182C0-13532-00-00 ...HOSE, VACUUM SENSING 3...HOSE, VACUUM SENSING 3
-
195PW-1410F-00-00 ...CONNECTOR...CONNECTOR
-
208FP-14349-00-00 ...PIPE...PIPE
-
218FP-14349-30-00 ...PIPE...PIPE
-
228JU-1410E-00-00 ...HOSE...HOSE
-
238JU-14261-00-00 ...HOLDER...HOLDER
