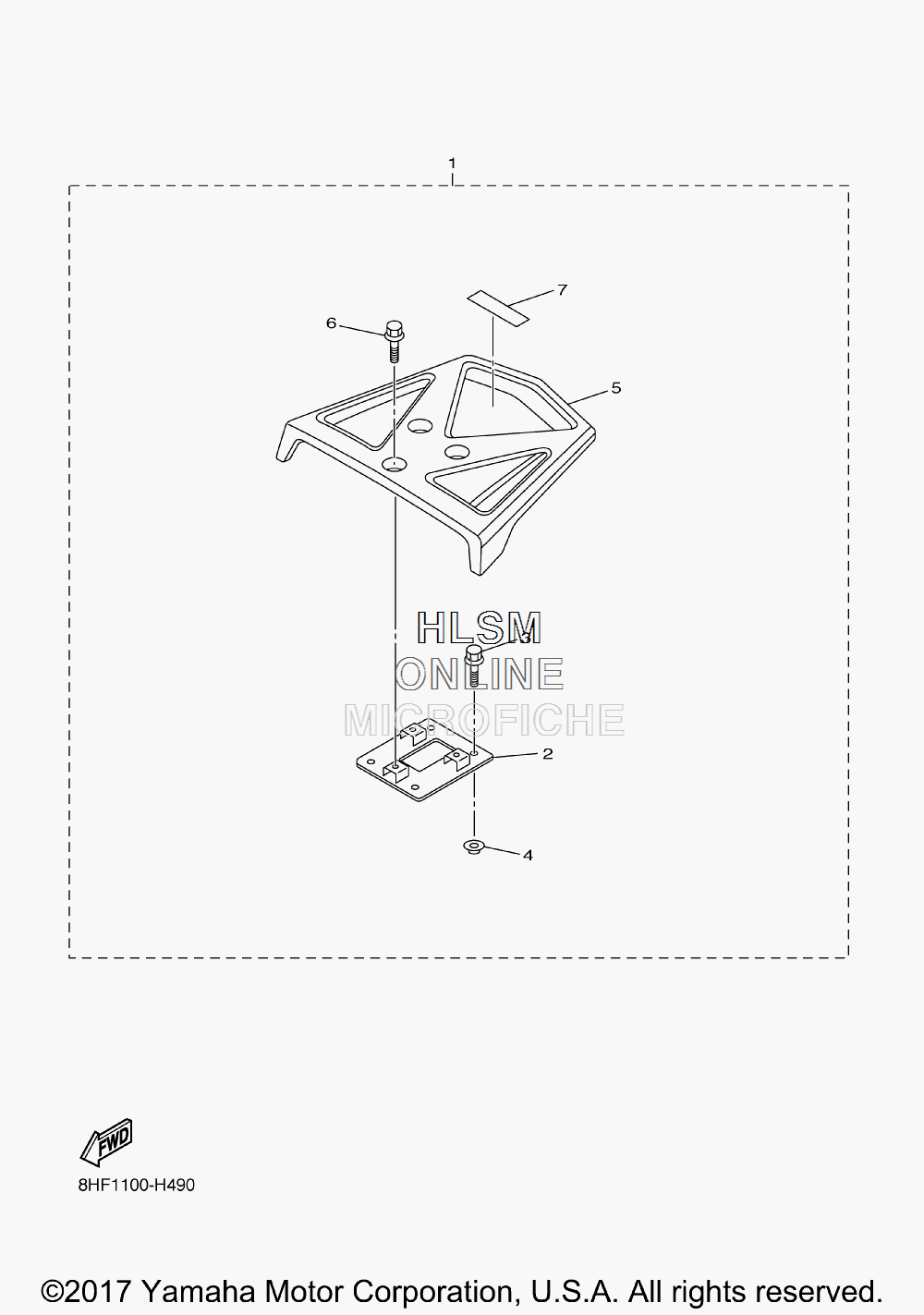

ALTERNATE CARRIER для Yamaha RS VENTURE TF - 2016 года выпуска
-
№АртикулНазвание
-
18HF-W2481-00-00 CARRIER SET (OPT)CARRIER SET (OPT)
-
28HF-24816-00-00 ...BRACKET, CARRIER...BRACKET, CARRIER
-
395817-08020-00 ...BOLT, FLANGE...BOLT, FLANGE
-
490387-08090-00 ...COLLAR...COLLAR
-
58ET-24842-00-00 ...CARRIER, REAR...CARRIER, REAR
-
695817-08020-00 ...BOLT, FLANGE...BOLT, FLANGE
-
78ET-24897-00-00 ...EMBLEM...EMBLEM
