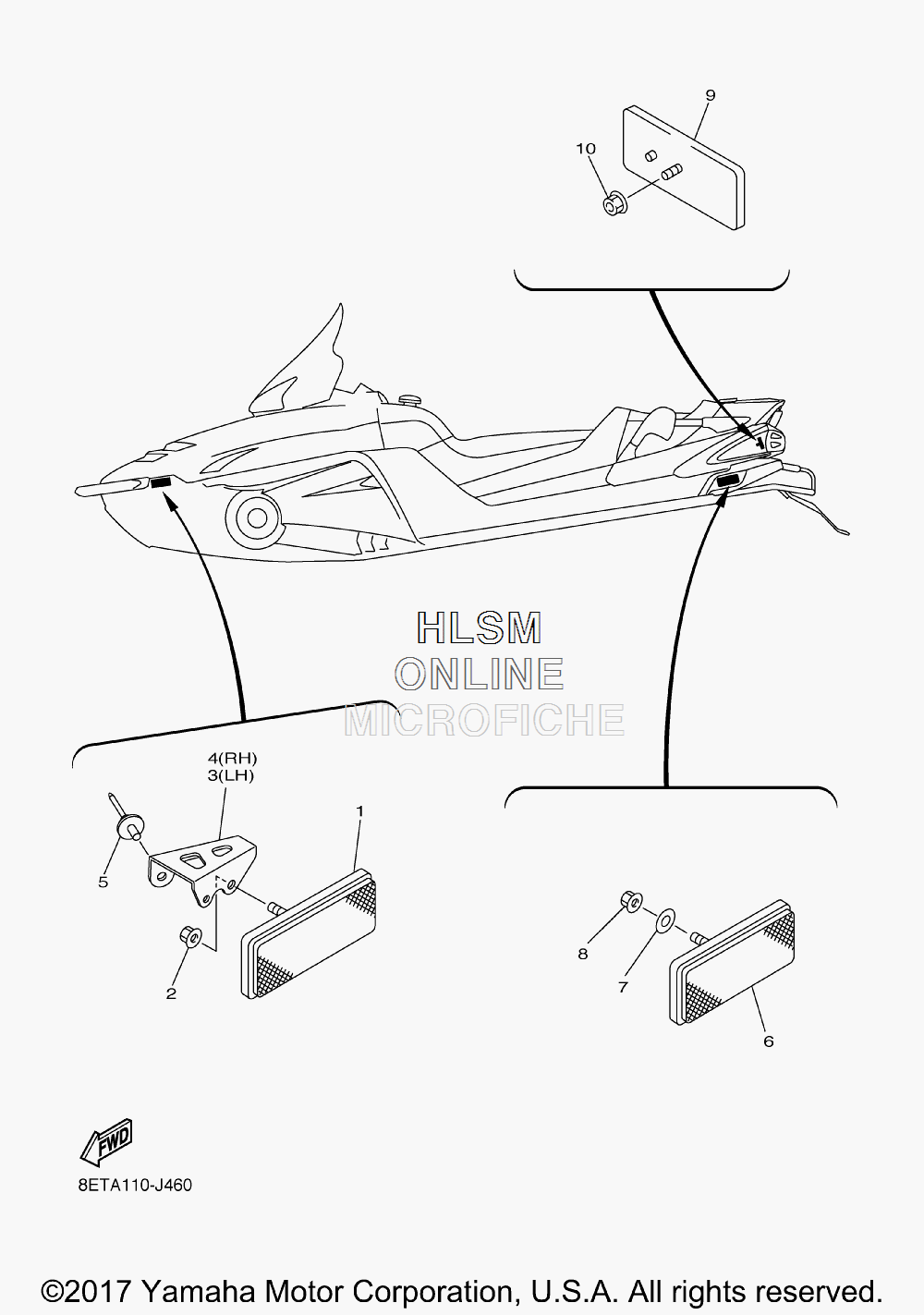

REFLECTOR ASSY для Yamaha RS VENTURE - 2016 года выпуска
-
№АртикулНазвание
-
18GM-85110-00-00 REFLECTOR ASSYREFLECTOR ASSY
-
295702-05500-00 NUT, FLANGENUT, FLANGE
-
38FR-77421-00-00 BRACKET 1BRACKET 1
-
48FR-77422-00-00 BRACKET 2BRACKET 2
-
590267-48104-00 RIVET, BLIND (4.8X12.4 BLACK)RIVET, BLIND (4.8X12.4 BLACK)
-
63Y6-85130-02-00 REAR REFLECTOR ASSYREAR REFLECTOR ASSY
-
790201-05036-00 WASHER, PLATEWASHER, PLATE
-
895702-05300-00 NUT, NYLONNUT, NYLON
-
93Y6-85130-02-00 REAR REFLECTOR ASSYREAR REFLECTOR ASSY
-
1095707-05500-00 NUT, FLANGENUT, FLANGE
