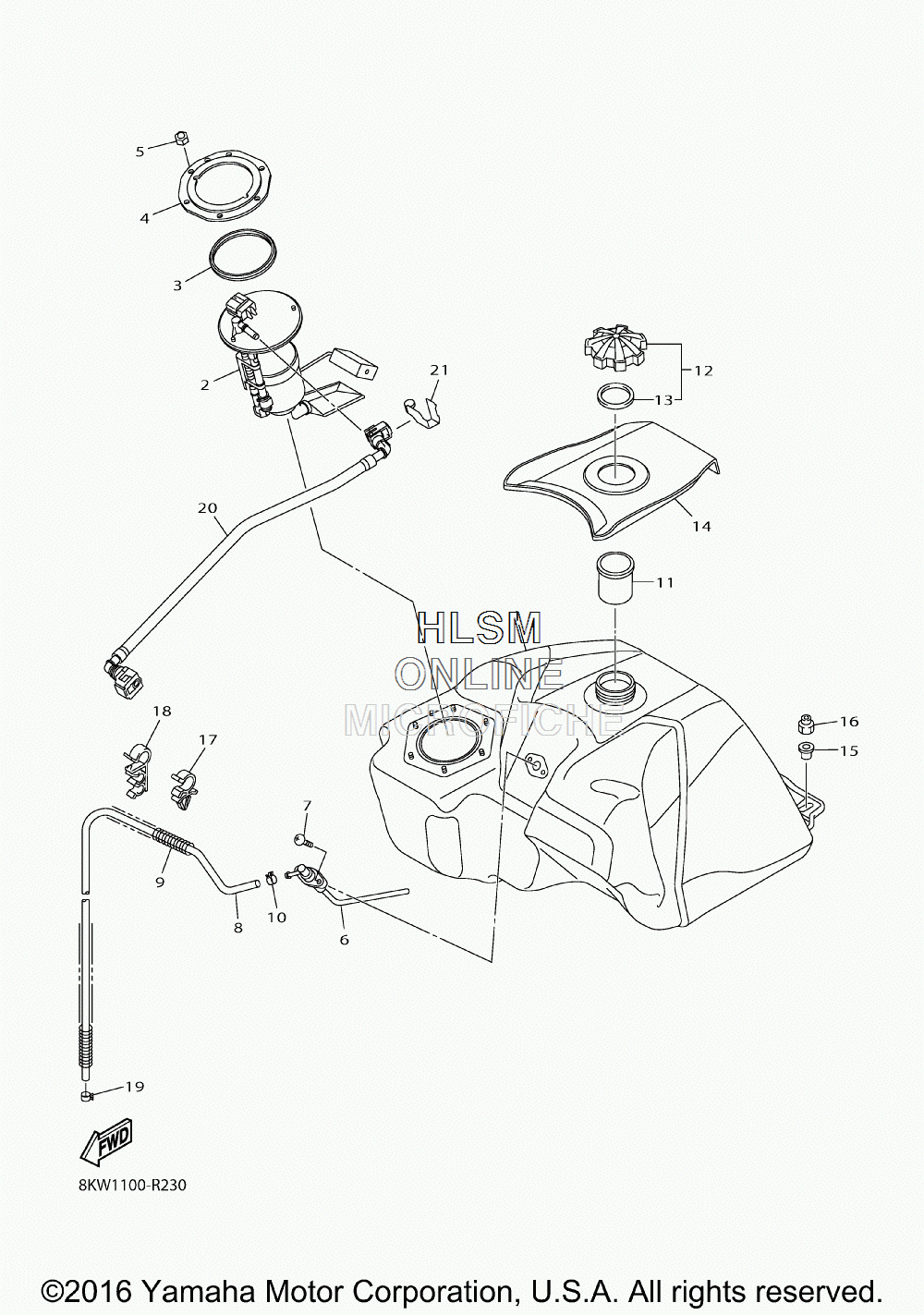

FUEL TANK ASSY для Yamaha RS VIKING PROFESSIONAL II - 2016 года выпуска
-
№АртикулНазвание
-
18KW-24111-10-00 TANK, FUELTANK, FUEL
-
28KW-13907-00-00 FUEL PUMP COMP.FUEL PUMP COMP.
-
38FP-24486-00-00 O-RINGO-RING
-
43B4-24491-00-00 BRACKET, FUEL PUMPBRACKET, FUEL PUMP
-
595302-06800-00 NUT, CROWNNUT, CROWN
-
68KW-2418A-00-00 BREATHER COMP.BREATHER COMP.
-
790149-06330-00 SCREWSCREW
-
891A20-05130-00 TUBE, FLEXIBLE VINYLTUBE, FLEXIBLE VINYL
-
990501-08668-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
1090467-09026-00 CLIPCLIP
-
118FG-24114-00-00 TUBE, FILLERTUBE, FILLER
-
128FG-24610-01-00 CAP ASSYCAP ASSY
-
138HV-24641-00-00 ...GASKET, CAP 1...GASKET, CAP 1
-
148KW-2414A-00-00 COVER, FILLERCOVER, FILLER
-
1590387-093H1-00 COLLARCOLLAR
-
1695702-08300-00 NUT, NYLONNUT, NYLON
-
1790464-09129-00 CLAMPCLAMP
-
1890464-16010-00 CLAMPCLAMP
-
1990467-09026-00 CLIPCLIP
-
208KW-24311-00-00 PIPE, FUEL 1PIPE, FUEL 1
-
2190464-14004-00 CLAMPCLAMP
