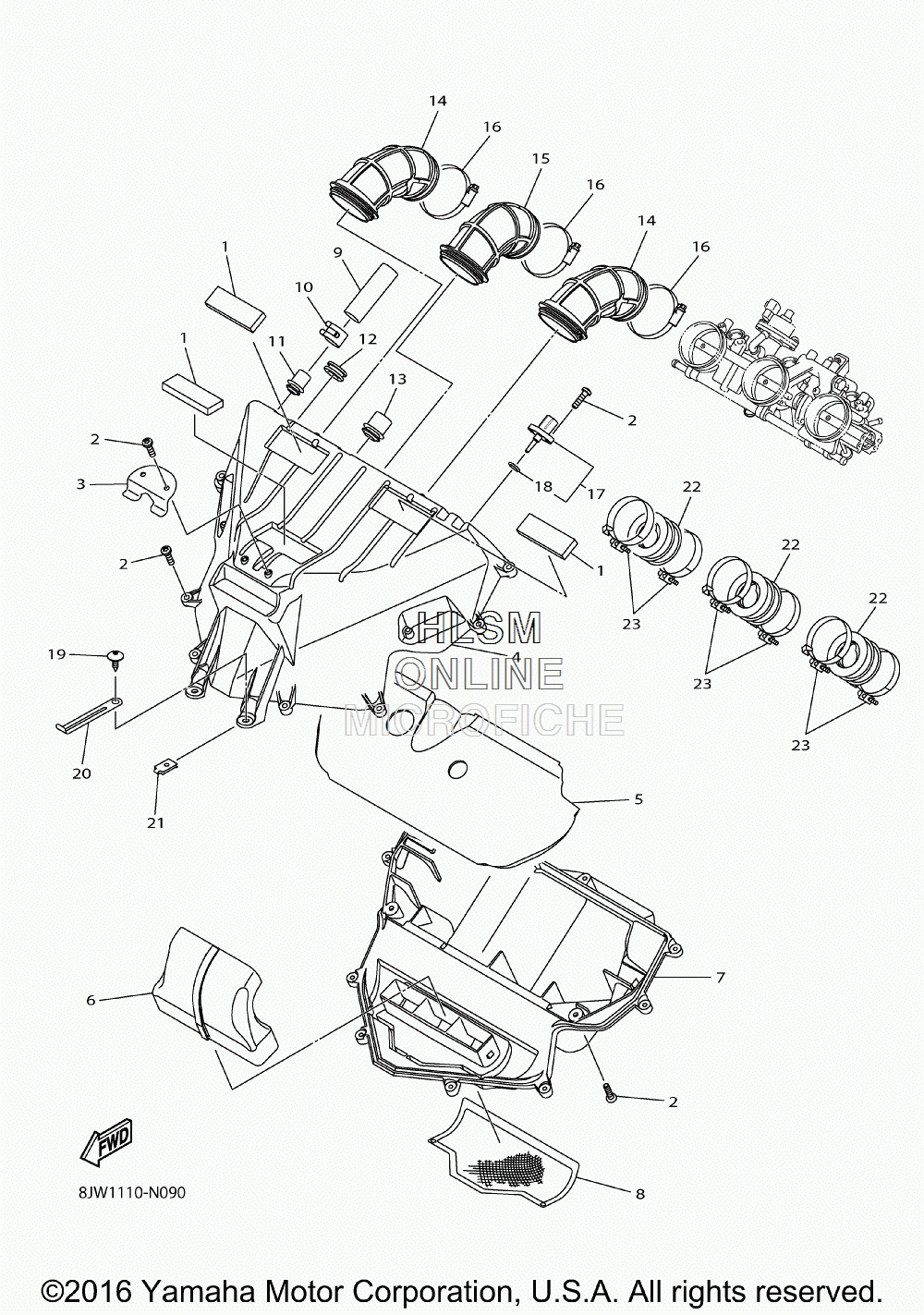

INTAKE W/ AIR BOX ASSY - FUEL PUMP для Yamaha SRVIPER L TX SE - 2016 года выпуска
-
№АртикулНазвание
-
18JP-E4425-00-00 DAMPER 1DAMPER 1
-
28JP-RA289-00-00 SCREW, 10-14X3/4SCREW, 10-14X3/4
-
38JP-E441L-00-00 PANEL 1PANEL 1
-
48JP-E4431-00-00 SILENCER, INTAKE 1SILENCER, INTAKE 1
-
58JP-E4472-00-00 PLATE, ELEMENTPLATE, ELEMENT
-
68JP-E443A-00-00 DUCTDUCT
-
78JP-E4441-00-00 SILENCER, INTAKE 2SILENCER, INTAKE 2
-
88JP-E445E-00-00 FILTER 1FILTER 1
-
98JM-RA902-10-00 HOSE, 13 (25 FEET)HOSE, 13 (25 FEET)
-
108JP-RAB20-00-00 CLAMP, 18CLAMP, 18
-
118JP-E410G-00-00 CONNECTORCONNECTOR
-
128JP-E4435-00-00 GROMMETGROMMET
-
138JP-E410F-00-00 CONNECTORCONNECTOR
-
148JP-E4453-00-00 JOINT, AIR CLEANER 1JOINT, AIR CLEANER 1
-
158JP-E4463-00-00 JOINT, AIR CLEANER 2JOINT, AIR CLEANER 2
-
168JP-RAB06-00-00 CLAMP, 4CLAMP, 4
-
178JP-H5886-00-00 SENSOR, AIR TEMPERATURESENSOR, AIR TEMPERATURE
-
188JP-RAF08-00-00 O-RING, 6O-RING, 6
-
198JM-RA201-00-00 SCREW, TAPPING 10-12X5/8SCREW, TAPPING 10-12X5/8
-
208JP-RAB22-00-00 CLAMP, 20CLAMP, 20
-
218JP-RA349-00-00 NUT, CLIPNUT, CLIP
-
228GL-13595-00-00 JOINTJOINT
-
2390450-60004-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
