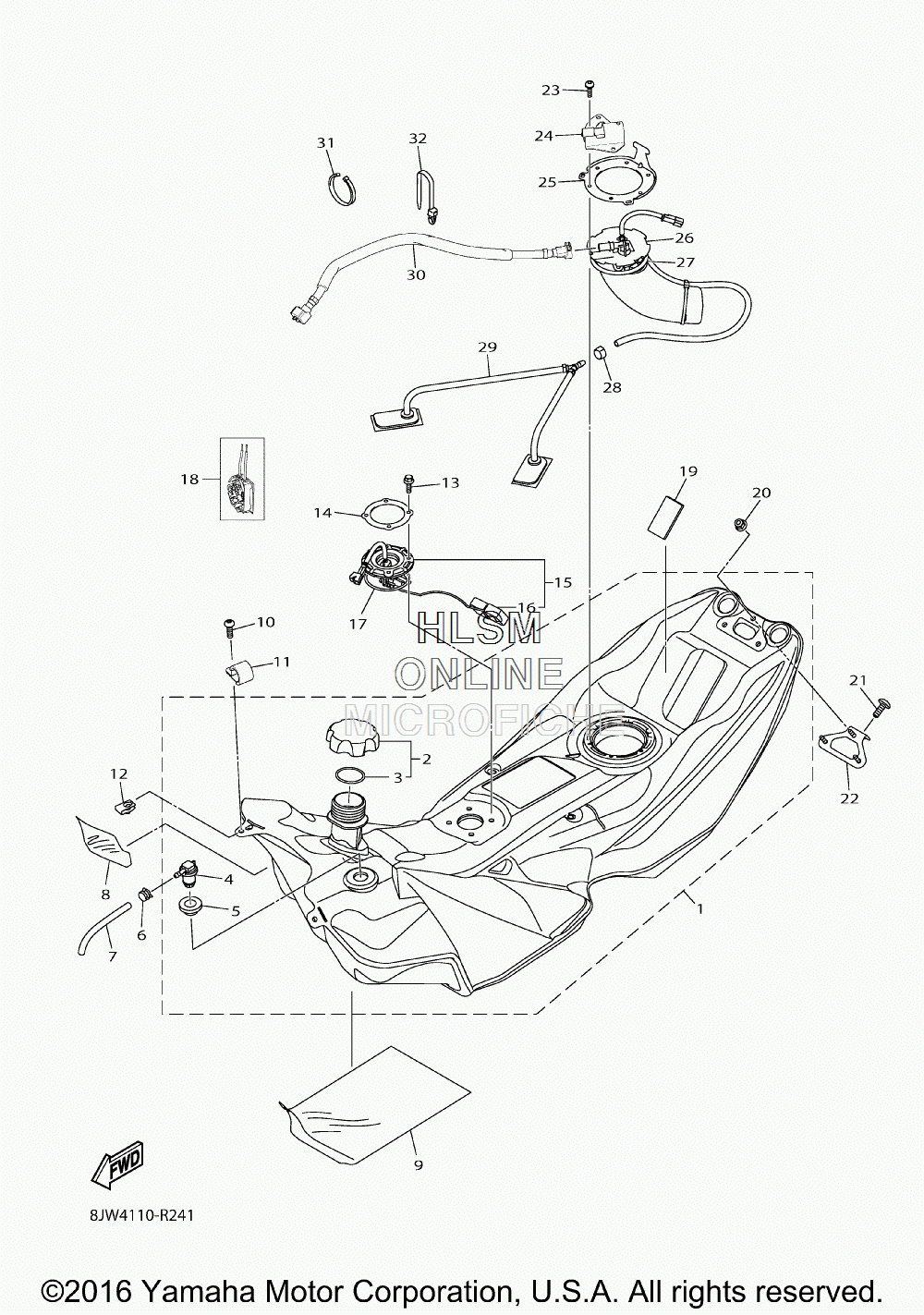

FUEL TANK ASSY для Yamaha SRVIPER M TX 153 - 2016 года выпуска
-
№АртикулНазвание
-
18JP-F4100-00-00 FUEL TANK ASSYFUEL TANK ASSY
-
28JP-F4610-00-00 ...CAP ASSY...CAP ASSY
-
38JM-F4641-00-00 ......GASKET, CAP 1......GASKET, CAP 1
-
48JP-F4362-00-00 ...VALVE, CHECK 1...VALVE, CHECK 1
-
58JP-E5366-00-00 ...GROMMET...GROMMET
-
68JP-RAB12-00-00 CLAMP, 10CLAMP, 10
-
78JP-RA908-00-00 HOSE, 4 (100 FEET) (OPT)HOSE, 4 (100 FEET) (OPT)
-
78JP-RA907-00-00 HOSE, 3 (50 FEET) (OPT)HOSE, 3 (50 FEET) (OPT)
-
88JP-F416F-00-00 INSULATOR, FUEL TANK 1INSULATOR, FUEL TANK 1
-
98JP-F476U-00-00 PROTECTOR 1PROTECTOR 1
-
108JP-RA251-00-00 SCREW, M5X1.0X16SCREW, M5X1.0X16
-
118JP-F4566-10-00 BRACKET, FILTERBRACKET, FILTER
-
128JP-RA353-00-00 NUT, CLIP M5NUT, CLIP M5
-
138JP-RA178-00-00 BOLT, FLANGE M5X0.8X16BOLT, FLANGE M5X0.8X16
-
148JP-K8166-00-00 PLATE, RETAINERPLATE, RETAINER
-
158JP-H5752-00-00 SENDER UNIT ASSY, FUEL METERSENDER UNIT ASSY, FUEL METER
-
168JP-H369N-00-00 ...FLOAT...FLOAT
-
178JP-RAF10-00-00 O-RING, 46.9O-RING, 46.9
-
188LN-H5701-00-00 SENDER ASSYSENDER ASSY
-
198JP-H2121-00-00 PAD, BATTERYPAD, BATTERY
-
208JM-RA322-00-00 NUT, FLANGE M6-1.0NUT, FLANGE M6-1.0
-
218JP-RA257-00-00 SCREW, M6X1.0X16SCREW, M6X1.0X16
-
228JP-F134U-00-00 BRACKET, TANK FITTINGBRACKET, TANK FITTING
-
238JP-RA242-00-00 SCREW, M5X0.8X20SCREW, M5X0.8X20
-
248JP-F413K-00-00 GUIDE, NOZZLEGUIDE, NOZZLE
-
258JP-F4491-00-00 BRACKET, FUEL PUMPBRACKET, FUEL PUMP
-
268JP-E3907-00-00 FUEL PUMP COMP.FUEL PUMP COMP.
-
278JP-F4486-00-00 O-RINGO-RING
-
288JP-RAB27-00-00 CLAMP, 25CLAMP, 25
-
298JP-F4502-00-00 FILTER, FUELFILTER, FUEL
-
308JP-F4310-00-00 FUEL PIPE ASSYFUEL PIPE ASSY
-
318JP-RAB10-00-00 CLAMP, 8 (11.75 INCH) (OPT)CLAMP, 8 (11.75 INCH) (OPT)
-
318JM-RAB01-00-00 CLAMP, 2 (8 INCH) (OPT)CLAMP, 2 (8 INCH) (OPT)
-
328JM-RAB02-00-00 CLAMP, 3CLAMP, 3
